TiLite Twist - Flip-Back Depth & Angle Adjustable Footrest; Flip-Back Depth & Angle Adjustable High Mount Footrest

3-4
Twist Owner’s Manual
OM_TWIST_0811RevA
CHAPTER 3: FOOTRESTS

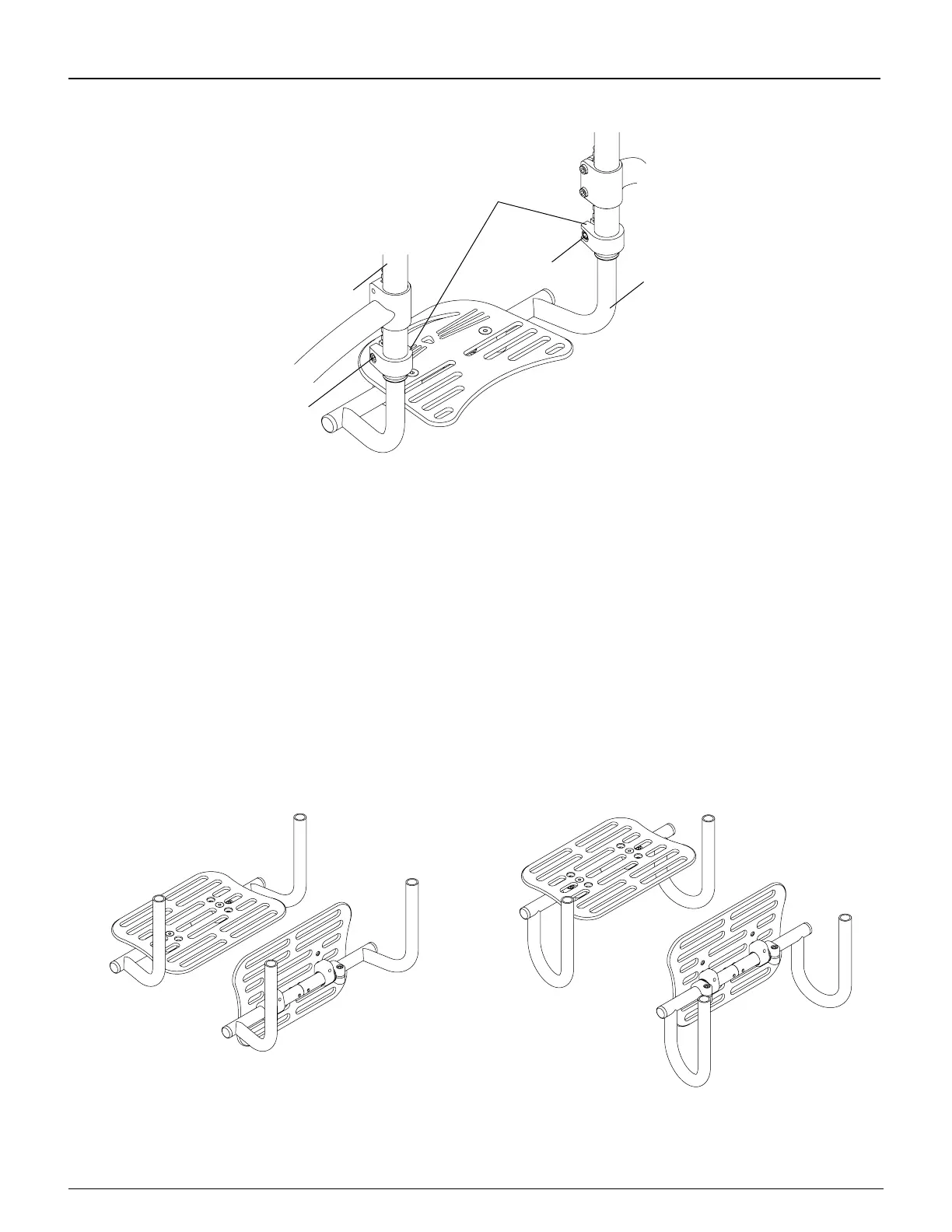

Figure 3-9
Adjusting the Height/ Replacing
Binder
Clamps
Allen
Screw
Allen
Screw
Frame
Footrest
Flip-Back Depth & Angle Adjustable Footrest / Flip-Back Depth & Angle Adjustable
High Mount Footrest
The Flip-Back Depth & Angle Adjustable Footrest and Flip-Back Depth & Angle Adjustable High Mount Footrests can
be ipped upward and backward to position the footplate out of the way for purposes of transferring into and out of the
wheelchair. See Figures 3-10 and 3-11.
You can adjust the angle of the footrest by using the tools and following the procedures for adjusting the angle of the
footrest as set forth under “CAT Flip-Back Angle Adjustable Footrest / CAT Flip-Back Angle Adjustable High Mount
Footrest – Adjusting the Angle” on page 3-3.
You can adjust the height of, or replace, the footrest by using the tools and following the procedures for adjusting
the height of, or replacing a footrest as set forth under “Angle Adjustable Footrest (Standard or CAT) – Adjusting the
Height/Replacing” on pages 3-1 to 3-2.
Figure 3-11
Flip-Back Depth Adjustable High Mount Footrest
Figure 3-10
Flip-Back Depth Adjustable Footrest
