CHAPTER 11: CASTERS AND FORKS

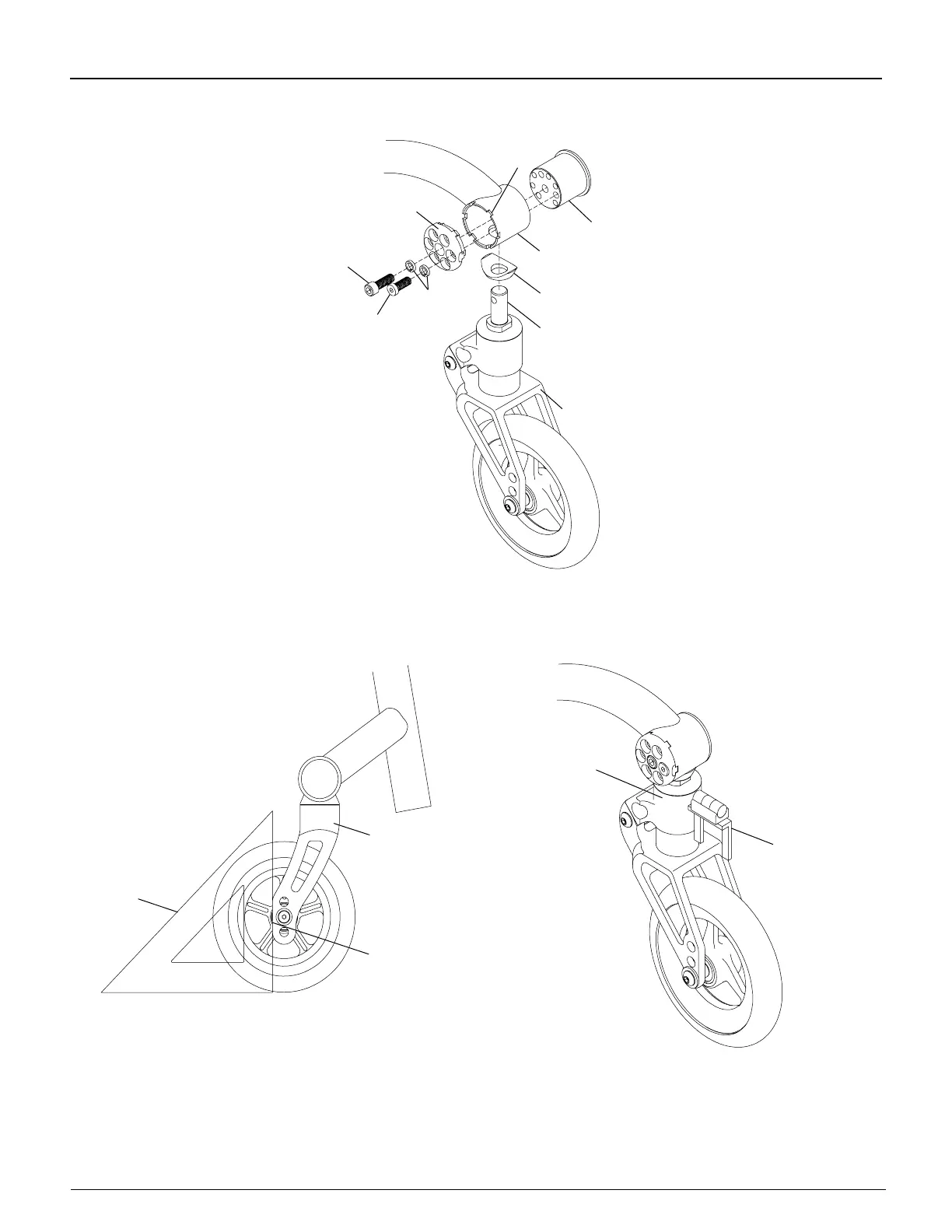

Figure 11-13
Adjusting the Angle (Frog Legs
®)
Tab Slots
Caster
Mount
Caster
Housing
Fork Stem
Caster Cap
Fork
Caster
End Cap
Allen
Screw 2
Allen
Screw 1
Lock
Washers
Figure 11-14
Bearing Fork/ Mono Fork
Figure 11-15
Frog Legs
®
Bubble Level
Bracket
Barrel
Flat Edge
Fork
Triangle
