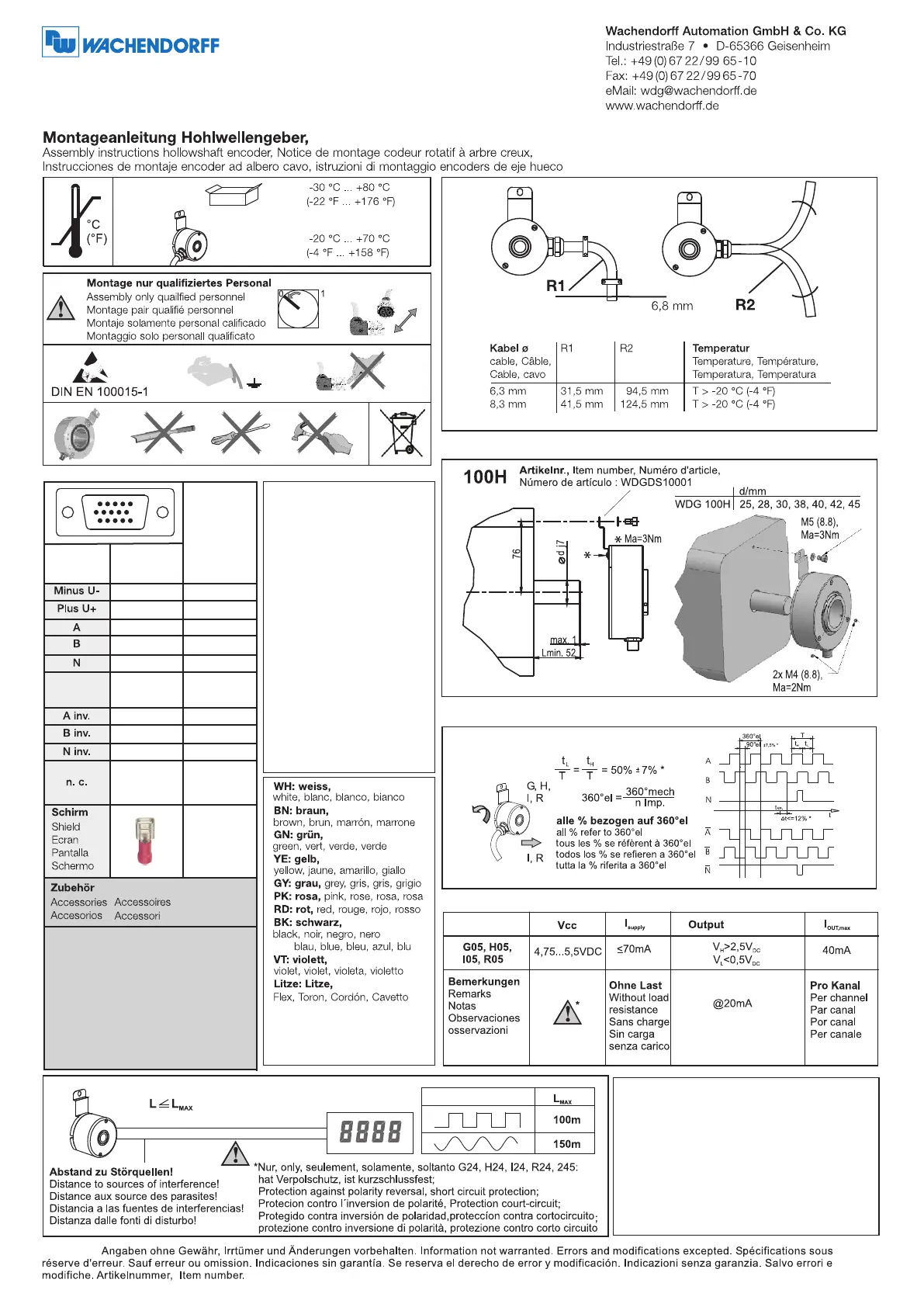

TKE TW45 - Page 125

WDG100H-xx-yyyy-ABN-R05-L3-CTF-zzz
xx = Ø = 25, 28, 38, 42, 45mm
yyyy = PPR, 1024, 2048, 4096
zzz = 100= 10m, 050 = 5m, 200 = 20m, blank = 2m
Technical Support
Germany:
Tel.: +49 (0) 67 22 / 99 65 77
Fax: +49 (0) 67 22 / 99 65 70
email: support-wdg@wachendorff.de
Other countries, please contact your distributor.
Autres pays, veuillez contacter votre distributeur.
Otros paises, rogamos contacten a su distribuidor.
Per gli altri paesi si prega di contattare il vostro
distributore.
21.10.2014
SUB-D
15-pin
14
13
1
5
2
4
6
-
WH
BN
GN
GY
BU
-
YE
PK
RD
Litze, Flex,
Toron,
Cordón,
Cavetto
3
Kabel,
cable,
Câble,
Cable,
cavo
7, 8, 9, 10,
11, 12, 15
,
,
,
*1
-
1 5
6
10
11
15
*1
Steckergehäuse/Schirm
mit Gebergehäuse leitend
verbunden
(Nicht S7, K1, K2, K3)
Connector housing/shield
electrically connected to
encoder housing
(not S7, K1, K2, K3)
Bôtier de connexion/Ecran avec
boîtier d’ementteur liés de
manière conductrice
(No S7, K1, K2, K3)
Caja de conector/Pantalls
conectada en conductancia com
caja de transmisor
(No S7, K1, K2, K3)
scatola prese/Schemo con
scatola transmettitore collegata
da condure
(No S7, K1, K2, K3)
