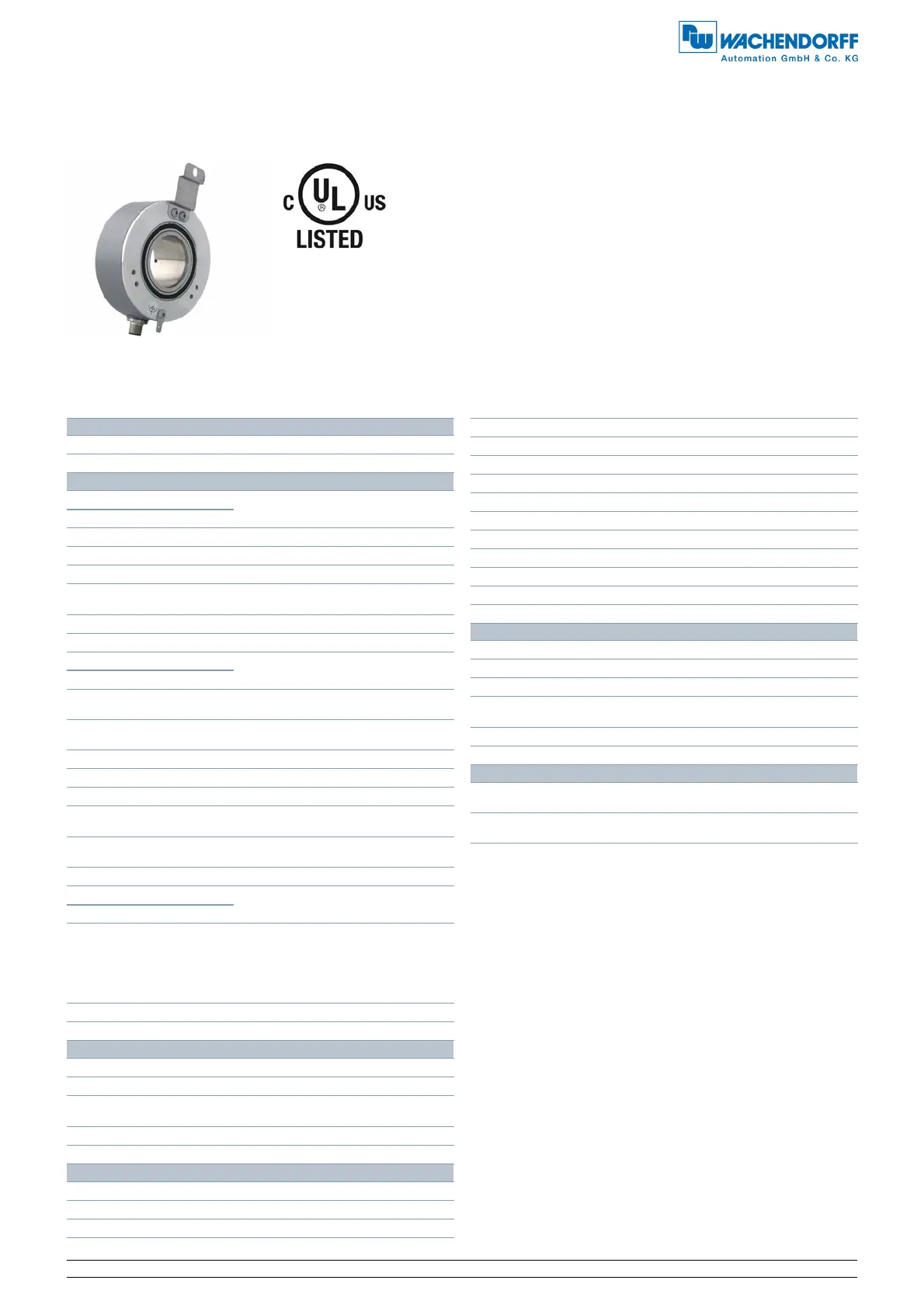

WDG 100H Errors and modifications reserved. © Wachendorff Automation GmbH & Co. KG 2022-04-19 -1
-
Encoder WDG 100H-38-2048-ABN-245-L3-AJE-030
Resolution
Pulses per revolution PPR 2048 ppr
Mechanical Data
Housing
Flangehollow shaft (through-bored)
Flange materialaluminum
Housing capaluminum, powder coated
Torque supportswithout torque support
HousingØ 100 mm
Shaft(s)
Shaft materialstainless steel
Starting torqueapprox. 1.5 Ncm at ambient
temperature
Fixing2 x M4, DIN 913;
Starting torque: 2,5 Nm
Shaft Ø 38 mm
Shaft lengthL: 42 mm
Max. Permissible shaft
loading radial
200 N
Max. Permissible shaft
loading axial
100 N
Bearings
Bearings type2 precision ball bearings
Nominale service life3 x 10'10 revs. at 100 % rated shaft
load
1 x 10'11 revs. at 40 % rated shaft
load
1 x 10'12 revs. at 20 % rated shaft
load
Max. operating speed 3500 rpm
Machinery Directive: basic data safety integrity level
MTTF
d
200 a
Mission time (TM)25 a
Nominale service life (L10h)1 x 10'12 revs. at 20 % rated shaft
load and 3500 rpm
Diagnostic coverage (DC)0 %
Electrical Data
Power supply VDC 10 - 30 VDC
Current consumptiontyp. 70 mA
Signal shapesquare-wave
Output circuitTTL, RS422 comp., inverted
ChannelsABN
Outputpush-pull
Loadmax. 40 mA / channel
Signal level mAat 20 mA
Signal level H>H > 2.5 VDC
Signal level L<L < 1.2 VDC
Output frequencymax. 200 kHz
Circuit protectioninverse-polarity protection only
Light reserve warningno
General Data
Weightapprox. 720 g
Connectionscable, radial
Protection rating (EN 60529) IP55
Operating temperature-20 °C up to +80 °C
Storage temperature-30 °C up to +80 °C
More Information
General technical data and safety instructions
http://www.wachendorff-automation.com/gtd
Options
http://www.wachendorff-automation.com/acc
