14
Description
Product
TK Elevator
BA, TW45 | 6231003860 | 03/2023
▪ ISIS1 version: Horizontal motor position; traction sheave position on left /
right, with emergency brake system, NBS – for location in the shaft pit.
The machine is exclusively available with frequency-controlled motors (V3F).

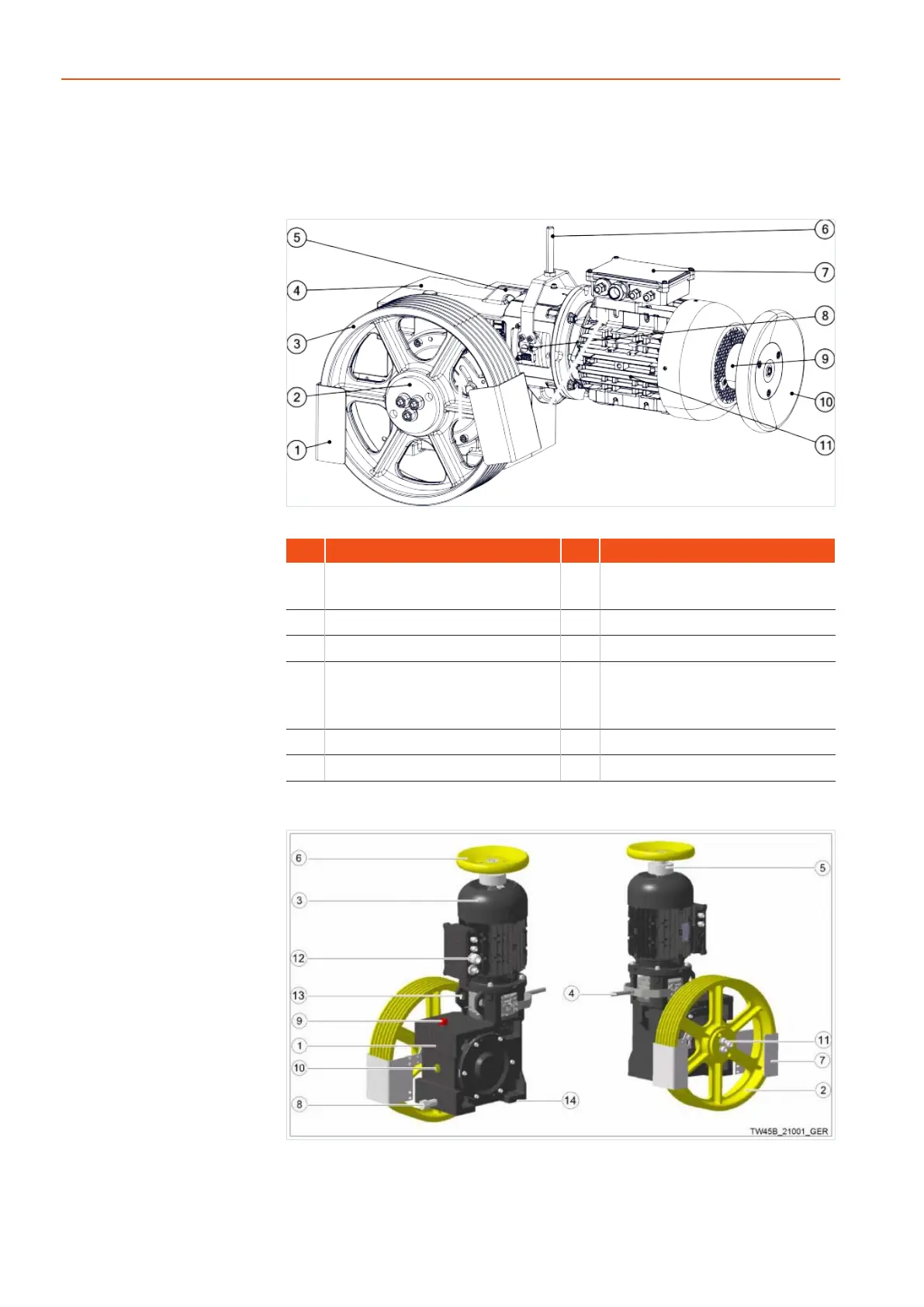

TW45C in horizontal version for installation in the machine room
Fig.1 ATR_2_21_0027_0
Item Designation Item Designation
1 Rope guard 2
Tension disc on traction sheave
shaft with screwed connection
3 Traction sheave 4 Gear
5 Transport eyebolt 6 Brake release lever
7
Motor terminal box, including in-
termediate terminal connection
for brake
8 Service brake
9 Encoder 10 Handwinding wheel
11 Motor
Installation in the machine room / vertical motor position IMV1
Fig.2 ATR_2_21_0028_0
