Description
Product 19
TK Elevator
BA, TW45 | 6231003860 | 03/2023
Item Designation Item Designation
1
Traction sheave (D440 / D520 /
D590)
2
Earthquake safeguard comply-
ing with EN81-77

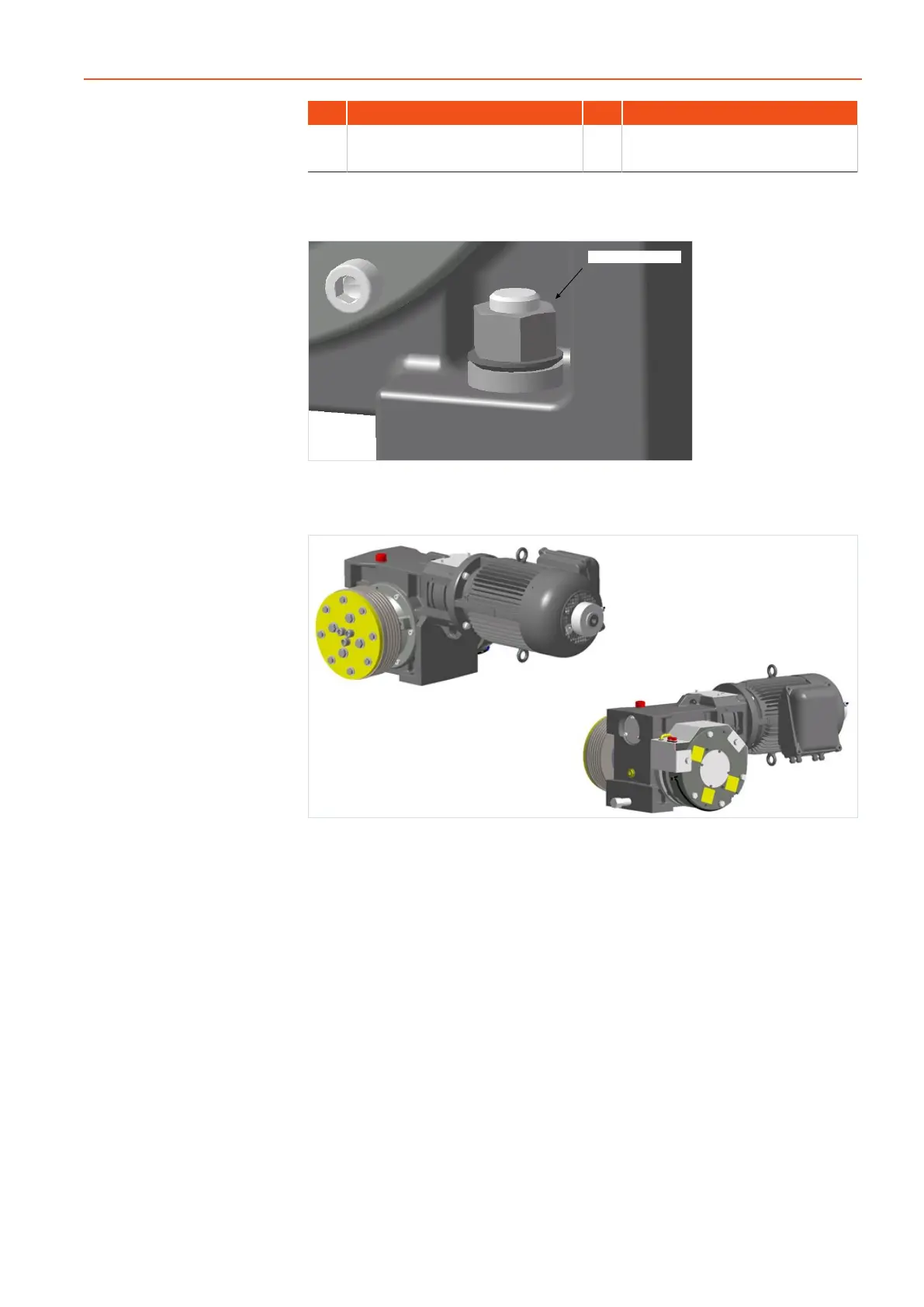

Special version SA1 (modified mounting of the machine,
including compensation washers)
Fig.7 ATR_2_12_0151_1
ISIS1 version (MRL – machine in the shaft pit)
Fig.8 ATR_2_12_0149_0
The machine has a "horizontal" motor position.
The position of the motor terminal box is at the side opposite the traction
sheave.
In general, the ISIS1 version of the machine has the NBS emergency brake
system.
The traction sheave shown in the diagram is not included in the scope of sup-
ply. It is made available by TKE-NA.
The components for the rope guard and the fastening elements for the ma-
chine on the machine base frame are also made available by TKE-NA.
The connection lines of the service and emergency brakes are routed through
the enlarged motor terminal box and routed by means of conduits into a mo-
tor interface box (MIB).
The motors made by EMOD are voltage interchangeable 230 / 460 V and
have no handwinding wheel. The motors have CSA certification.
