Description
Product
TK Elevator
BA, TW45 | 6231003860 | 03/2023

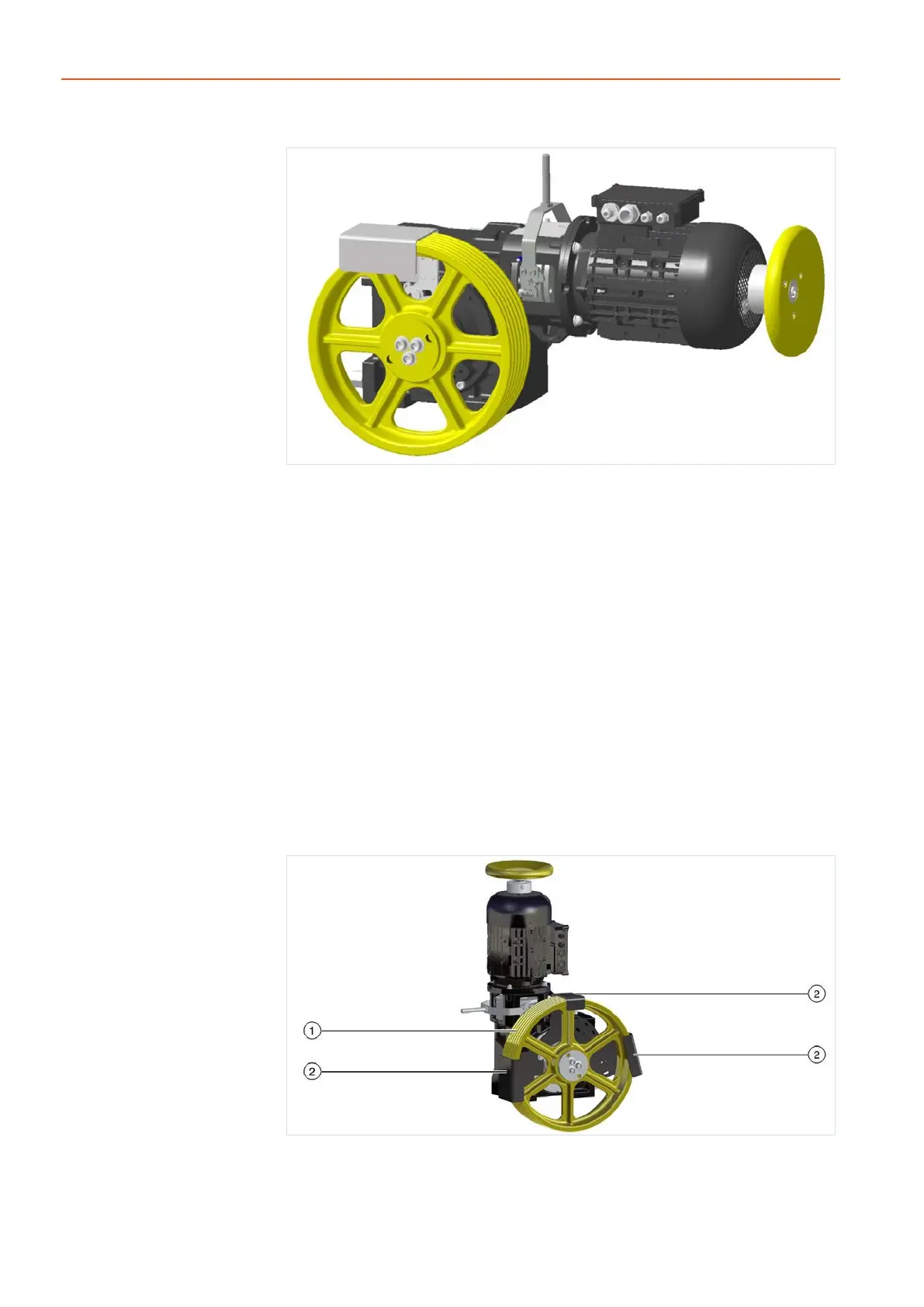

Machine room with horizontal rope departure direction (shown is
the left traction sheave position / horizontal motor position)
Fig.5 ATR_2_12_0105_0
The machine contains only the components for the rope guard of the top rope
line. To assist installation of these components, the bearing bracket on the
traction sheave side has been fitted at the plant rotated by 60°. The hori-
zontal rope departure direction is possible in both directions (opposing the
motor and/or towards the motor with horizontal motor position). With a ver-
tical motor position, both horizontal directions are also possible. The top rope
guard can be adjusted +/- 15° in relation to the horizontal. The additional com-
ponents required for the rope guard of the bottom rope line and/or in the area
between the rope entry and departure points required in accordance with
EN81-1:1998 and/or EN81-20/5.5.7 are not included in the scope of supply of
the machine and must be fitted on the machine base frame depending on the
order.
Machine room with earthquake safeguard complying with
EN81-77 (shown in the left traction sheave position / vertical
motor position and earthquake safeguard complying with
EN81-77)
Fig.6 ATR_2_12_0106_0
