Description
Product 17
TK Elevator
BA, TW45 | 6231003860 | 03/2023
Installation in the machine room / with emergency brake system,
NBS (shown with machine in horizontal motor position)

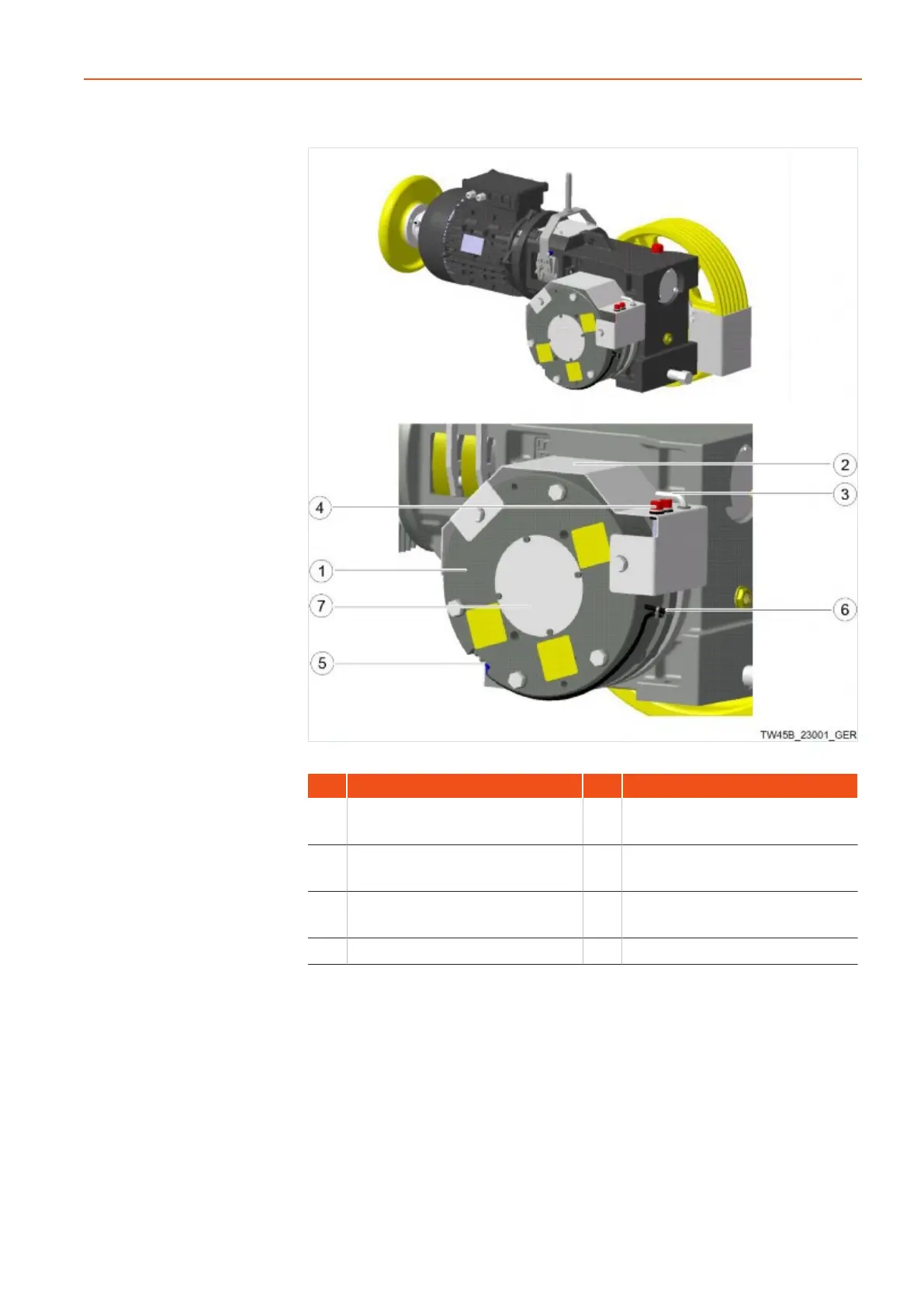

Fig.4 ATR_2_21_0030_0
Item Designation Item Designation
1
Disc brake - emergency brake
system, NBS
2 Cover plate for brake
3
Socket wrench for manual re-
lease
4
Screws for manual release
(screw head marked in red)
5
Brake test switch with connec-
tion line
6 Connection line, brake voltage
7 Protective cover for brake
