TKE TW45 - Page 16

16
Description
Product
TK Elevator
BA, TW45 | 6231003860 | 03/2023

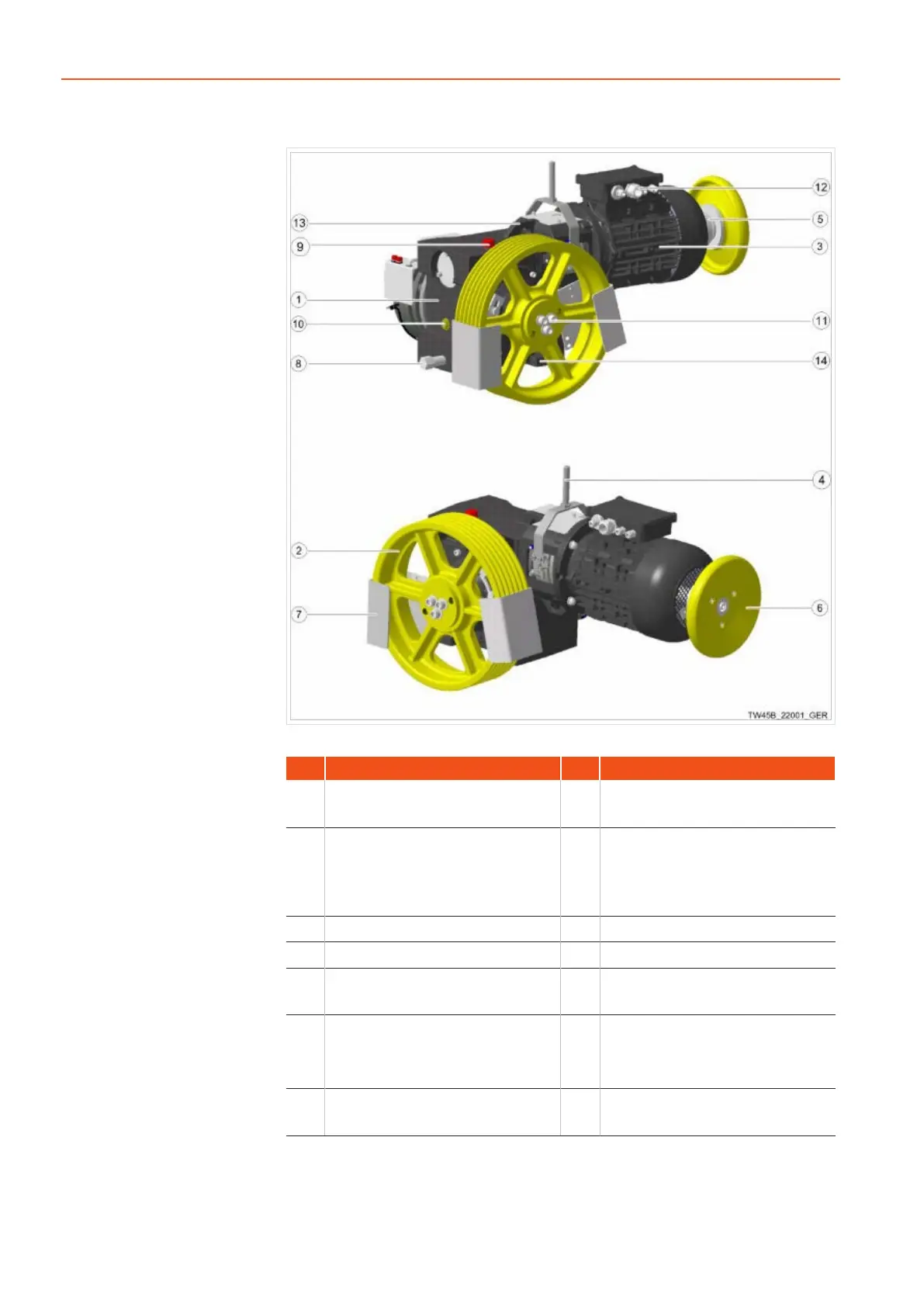

Installation in the machine room / horizontal motor position
IMB5
Fig.3 ATR_2_21_0029_0
Item Designation Item Designation
1
Driving gear (horizontal motor
position)
2
Traction sheave (D440 / D520 /
D590)
3
Motor
(version with terminal box for
connection of the service brake)
4
Service brake Mayr
RSZ125-2x50 Nm, including
mounted lever for manual re-
lease
5 Actual-value sensor 6 Handwinding wheel (D270)
7 Rope guard (adjustable) 8 Oil drain (R3/4")
9
Oil filling hole and ventilation
(R3/4")
10
Oil level monitoring (gauge
glass)
11
Traction sheave mounting (ten-
sion disc with screwed connec-
tion)
12
Motor connection (M16x1.5 /
M25x1.5)
Brake connection (2 M16x1.5)
13 Transport eyebolt 14
Mounting surface for machine
base frame
