Technology
Dimensions 43
TK Elevator
BA, TW45 | 6231003860 | 03/2023

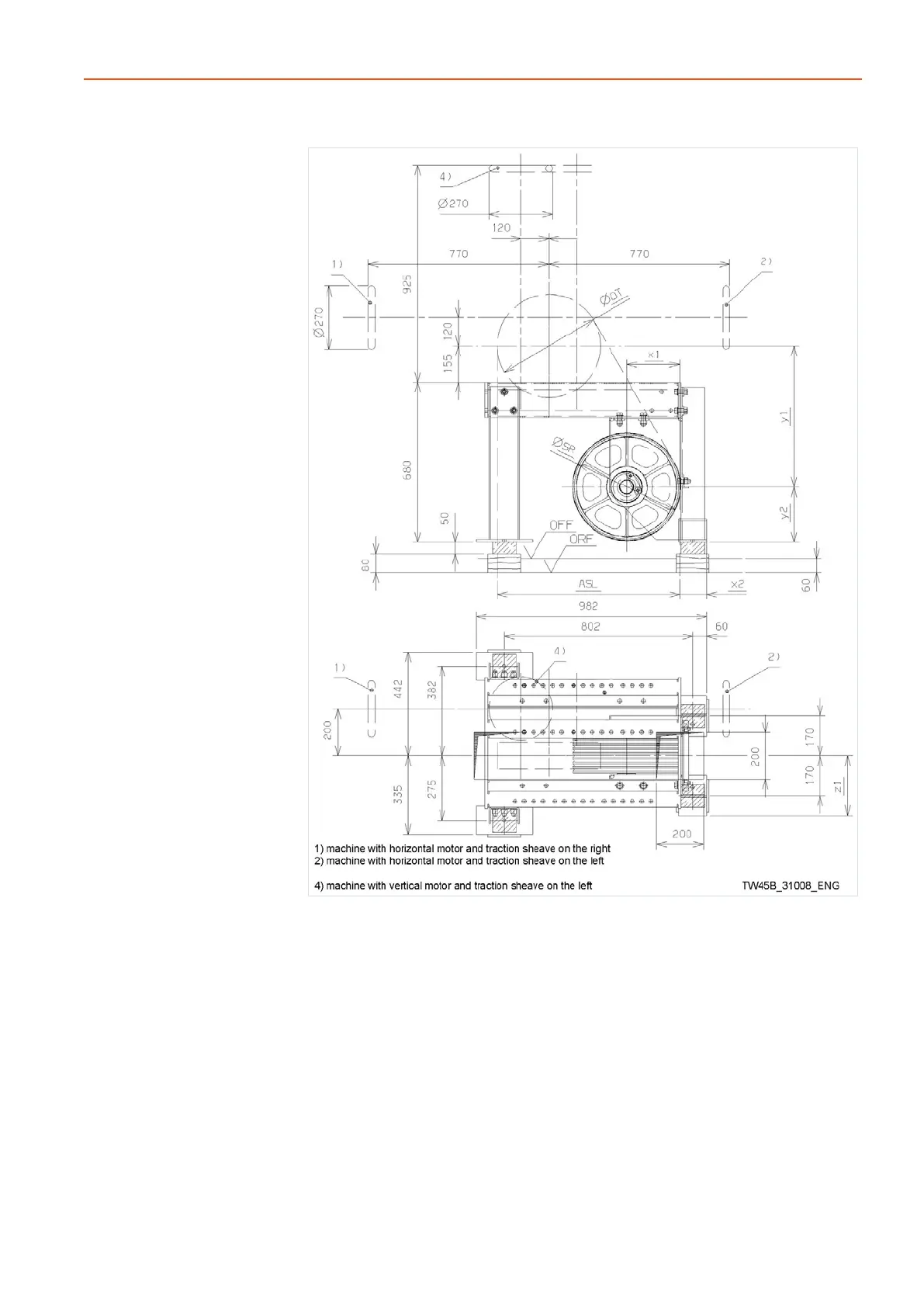

Machine base frame with rope pulley - right-hand version of the
rope pulley position
Fig.20 ATR_2_21_0042_0
