Toa A-9060DH - 18 An-9001 Installation

101
Step 1. Install a 1-gang electrical box in a wall or ceiling.
Step 2. Mount the AN-9001's Main unit to the installed electrical box.
Use the 2 screws (No.6-32UNC x 30) supplied with the AN-9001.
Note
The AN-9001 comes with 2 types of machine screws: No.6-32UNC x 30 (unified threads) and M4 x 30
(metric threads). Be sure to use correct ones.

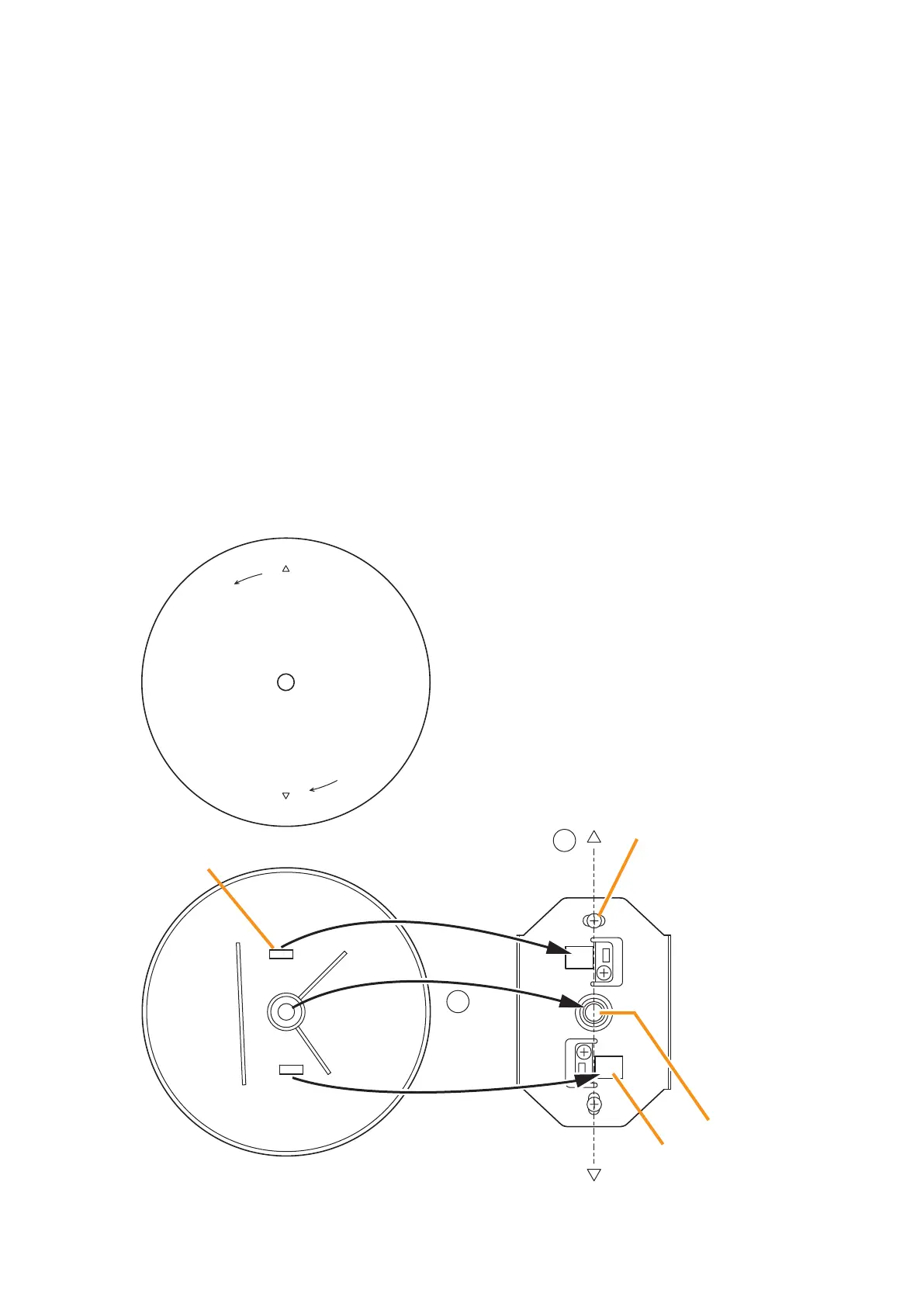

Step 3. Let both detents on the panel's rear into the detent insertion openings of the Main unit.
Tips
For detent insertion, refer to the following points:
(A) Align 2 triangular marks on the panel with the extended line connecting between Main unit's
mounting screws.
(B) Align the panel's center hole with the Main unit's microphone.
Step 4. Rotate the panel clockwise.
The panel locks into place by rotating it about 20° in the "Lock" direction.
18. AN-9001 INSTALLATION
Release
Lock
2
3
A
B
Panel's rear
AN-9001's Main unit
Machine screw
No.6-32UNC x 30 (2 places)
Detent (2 places)
Panel's front
Microphone
Detent insertion
opening (2 places)
