Toa A-9060DH - 16.2. Speaker Output Terminal Connections (A-9060 S and A-9120 S only)

95
25 V
8Ω
TRANS IN
4Ω (DIRECT)
E
COM
70 V
+
-
Jumper wire
+
-
25 V
8Ω
TRANS IN
4Ω (DIRECT)
E
COM
70 V
16.2. Speaker Output Terminal Connections (A-9060S and A-9120S only)
The A-9060S and A-9120S are equipped with speaker output terminals of 70 V, 25 V, and 8 Ω transformer
output, and 4 Ω direct output.

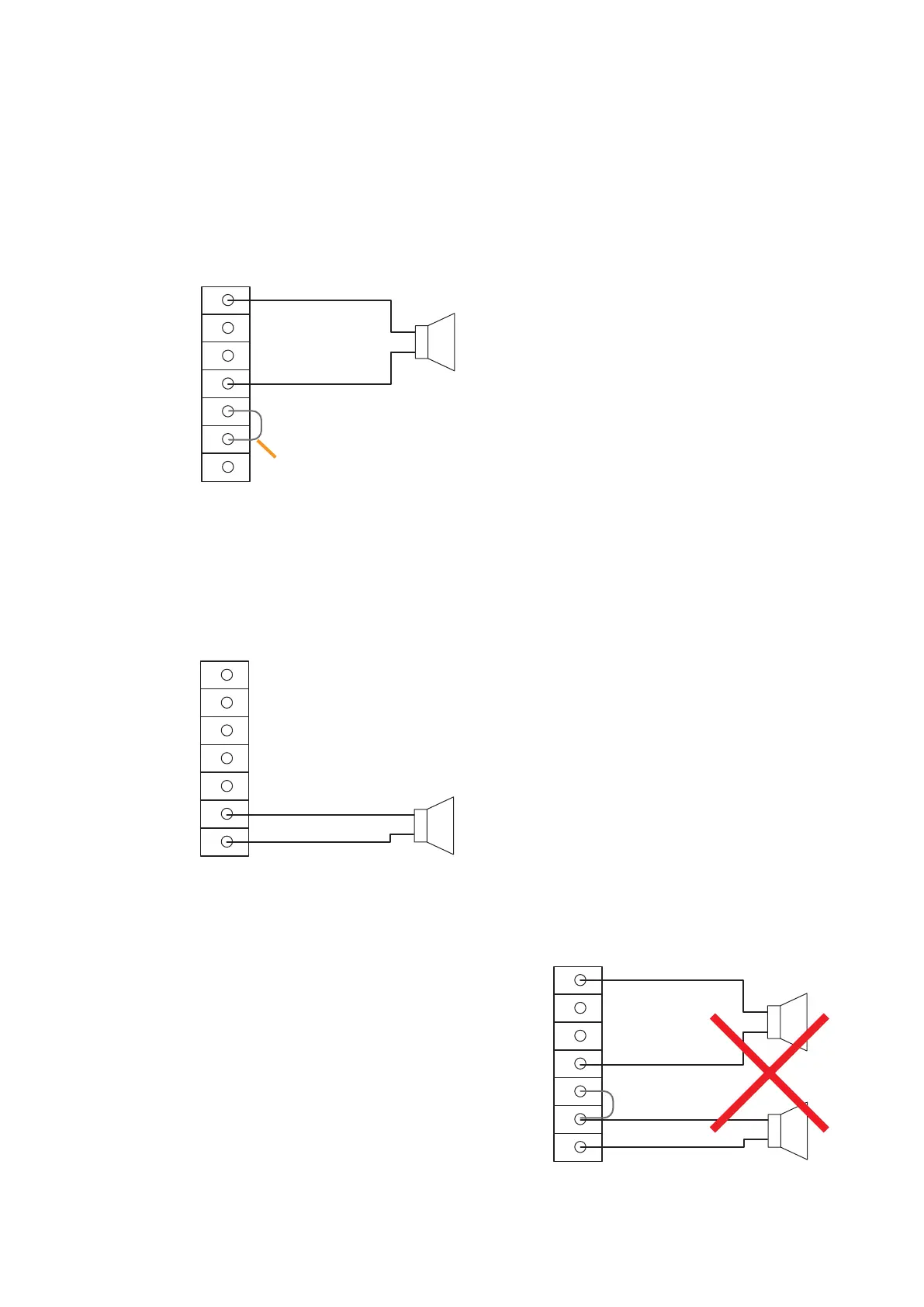

16.2.1. Transformer output terminal connection
Connect the supplied jumper wire* between 4 Ω (DIRECT) and TRANS IN terminals as shown below.
Then, connect speakers to COM terminal and 70 V, 25 V, or 8 Ω terminal.
* So wired in the supplied plug when shipped from the factory.
16.2.2. Direct output terminal connection
Remove the jumper wire* from the supplied plug, and connect a speaker to E and 4 Ω (DIRECT) terminals.
* Wired in the supplied plug when shipped from the factory.
Note
Never connect speakers to the transformer output
and 4 Ω direct output at the same time.
The amplifier could fail due to overload on it.
25 V
8Ω
TRANS IN
4Ω (DIRECT)
E
COM
70 V
+
-
+
-
Jumper wire
