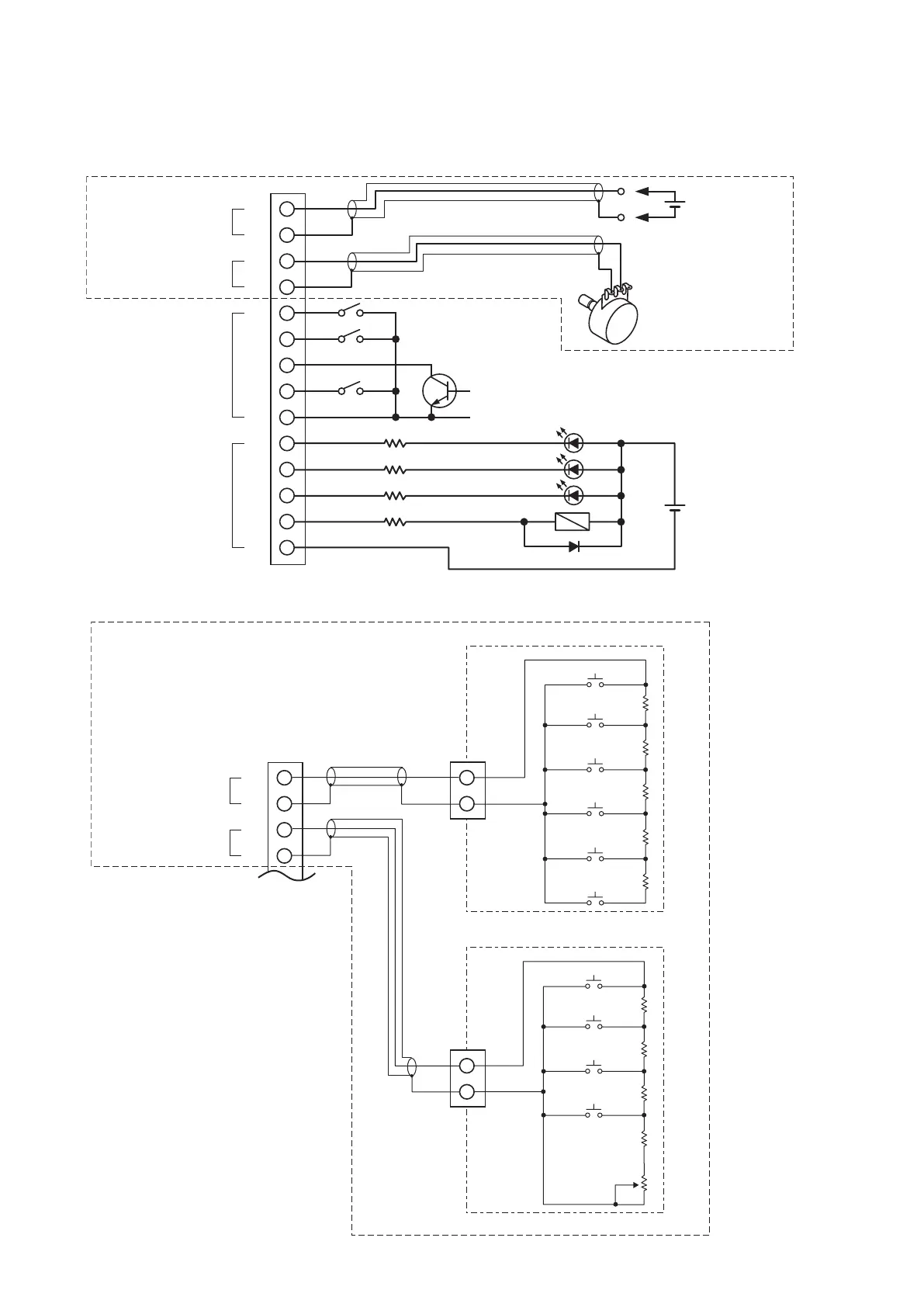

16.1.3. Control outputs 1 – 4
Use these terminals to activate LEDs, relays, and other external equipment.
Maximum operating current is 50 mA, and the maximum applicable voltage is +27 V.
REMT VOL1
(Remote volume 1)
REMT VOL2
(Remote volume 2)
IN
(Control inputs)
OUT
(Control outputs)
IN
E
IN
E
1
2
3
4
E
1
2
3
4
E
DC voltage
0 to 10 V
Applicable DC voltage
Max. 27 V DC
LEDs, Relays, etc. (Max. 50 mA)
or
Voltage control
10 kΩ (linear-taper)
Contact closures,
Open collectors, etc.
(Open voltage: 3.3 V, Max. 1 mA)
(When a variable resistor or variable DC power supply unit is connected)
REMT VOL1
(Remote volume 1)
REMT VOL2
(Remote volume 2)
IN
E
IN
E
OUT
ZM-9001
E
1
2
3
4
5
6
1
2
3
4
Volume control
ZM-9002
OUT
E
(When the ZM-9001 or ZM-9002 is connected)
Note
One ZM-9001 or one ZM-9002
can be connected to each of the
REMT VOL1 and 2 terminals.
