3-72
Chapter 3
INSTALLATION AND SETTING PROCEDURES (HARDWARE)

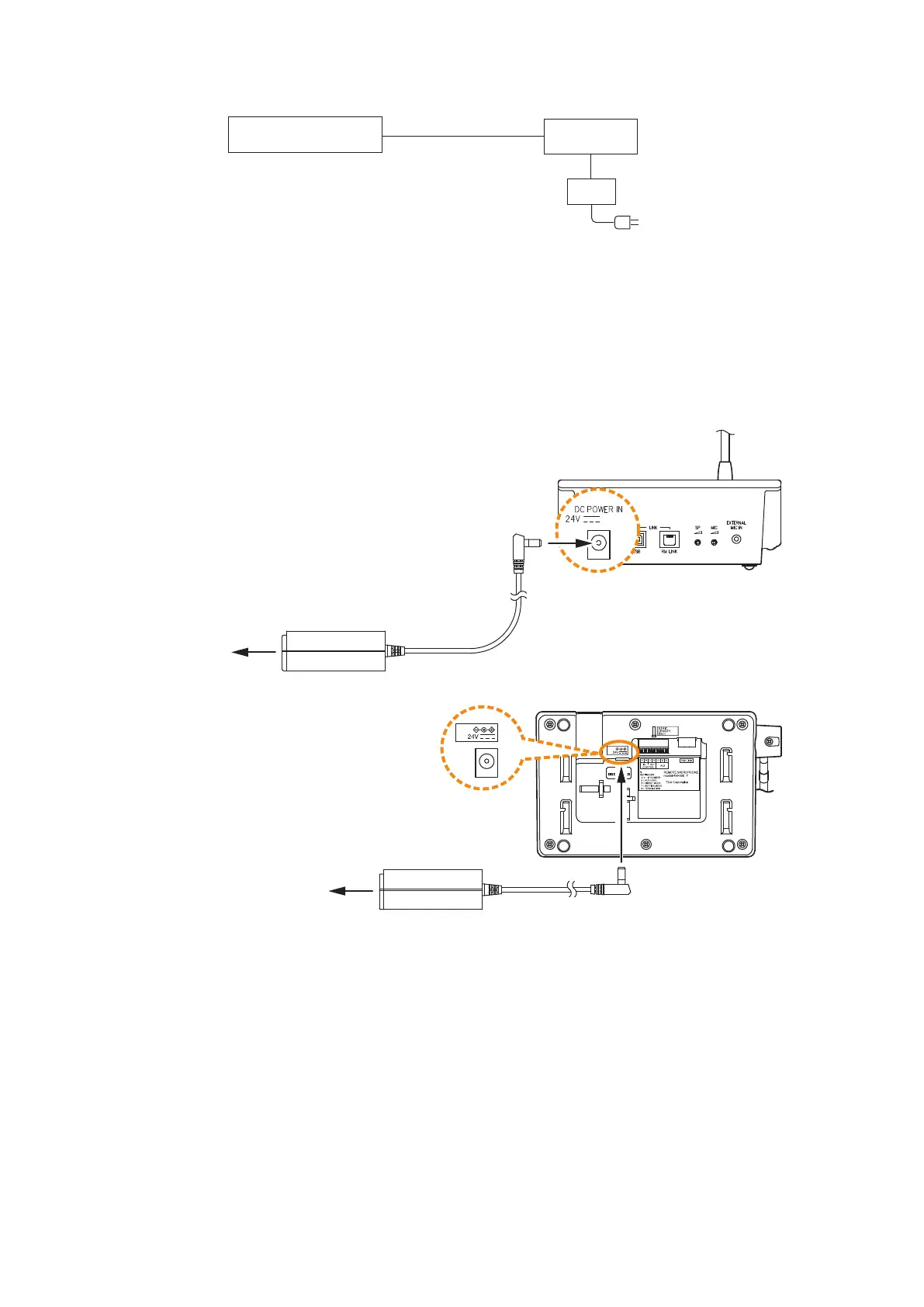

RM-300X rear
AC adapter AD-246 or
equivalent unit*
To AC power
Use when no backup power supply
is required.
[When power is supplied from the AC adapter]
* Usable AC adapter
24 V DC/over 200 mA (Operation range: 14 – 28 V DC)
Usable power output plug: Non-polarity type (Any polarity can be used.)
(5.5 mm outer diameter, 2.1 mm inner diameter, and 9.5 mm long)
Notes
• Plugging a DC plug into the RM-300X's or RM-500's power input terminal automatically switches the RM-
300X's or RM-500's DC power input to this terminal, disconnecting the unit's power supply from the RM link
connector.
• If the DC plug is pulled out, the RM link connector takes over the unit's power supply and is connected to the
system power line. This may cause the voltage drop of power supply and increase the current consumption
from the VX-3000F, resulting in the system malfunction.
• Regarding the RM-300X, be sure to rmly secure the DC plug by xing the power cable onto the RM-300X's
bottom-mounted cable hook.
When supplying power to the RM-300X or RM-500 from the optional AD-246 AC Adapter using an STP category
5 straight cable or over 4-pair shielded CPEV cable, the maximum length of connection cable (excluding power
line) is 1200 m regardless of the type of cable and the number of remote microphone extension units.
Note
To power the remote microphones even during power failures, a battery backup is also needed for the AC
adapter.
Or supply power to the remote microphones from the VX-3000DS or the VX-3150DS without using the AC
adapter.
VX-3000F
RM-300X
or RM-500
AC adapter
AC adapter AD-246 or
equivalent unit*
To AC power
Use when no backup power supply
is required.
RM-500 bottom
To Next Page
