3-73
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)

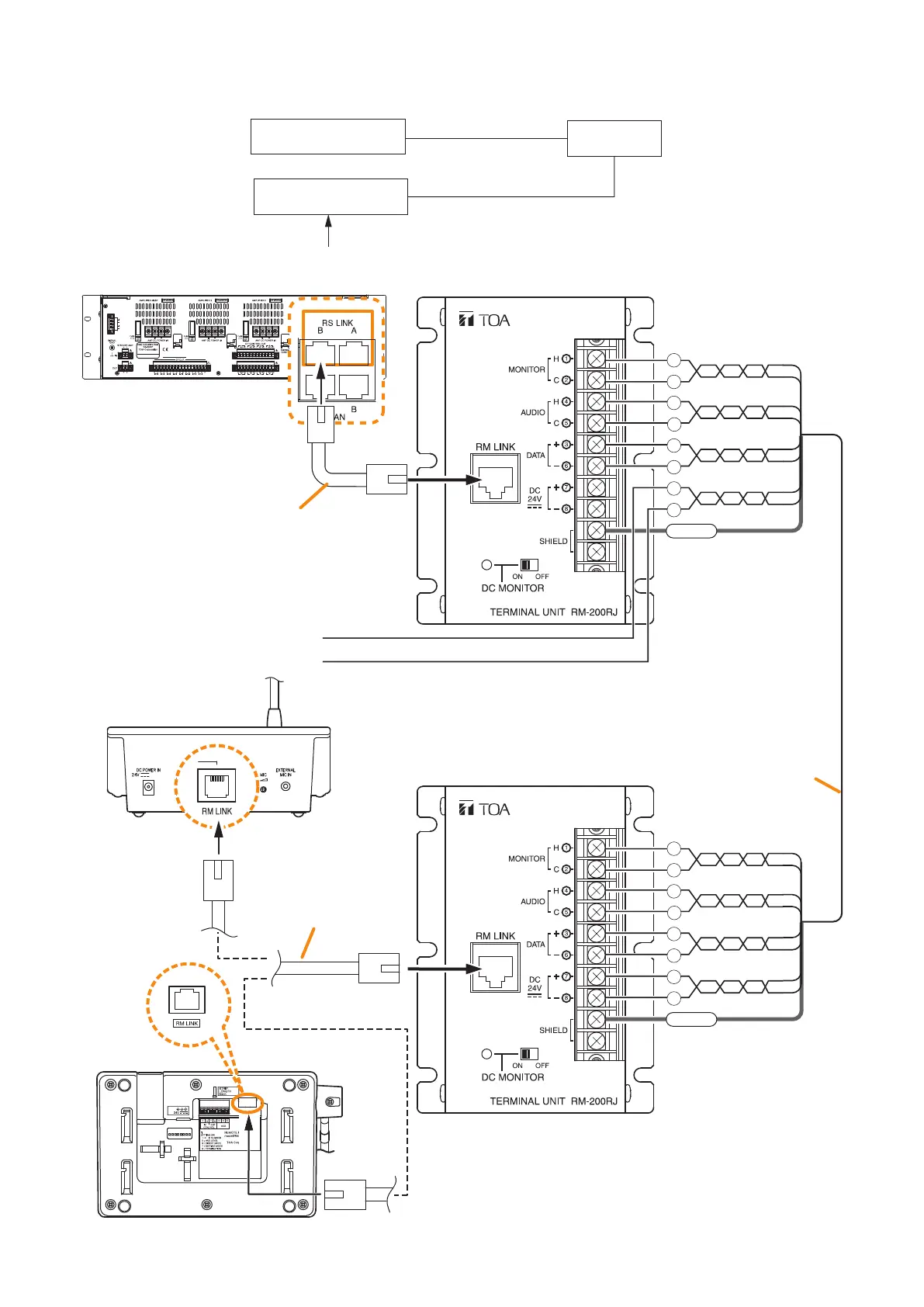

[When power is supplied from the VX-3000DS or the VX-3150DS]
STP Category 5
straight cable
(with RJ45 connectors)
or
RM-500 bottom
RM-300X rear
1
2
5
6
3
4
7
8
Shield
1
2
5
6
3
4
7
8
Shield
VX-3000DS’ or VX-3150DS’
DC Power out terminal
(+)
(
- )
VX-3000F
Over 4-pair shielded
CPEV cable (main cable)
STP Category 5 straight cable
(with RJ45 connectors)
RM-200RJ
RM-200RJ
VX-3000F
RM-300X
or RM-500
VX-3000DS
or the VX-3150DS
AC power or Battery
When a STP Category 5 straight cable is used as
communication cable (excluding power line) between the
RM-300X or RM-500 and the VX-3000F, the maximum
cable distance in a system is 1200 m in total.
