TOHATSU MX 50D2 - Disassembling Carburetors

Fuel System
4-20
2st 50D2 2011
GB
2) Disassembling Carburetors
2
1

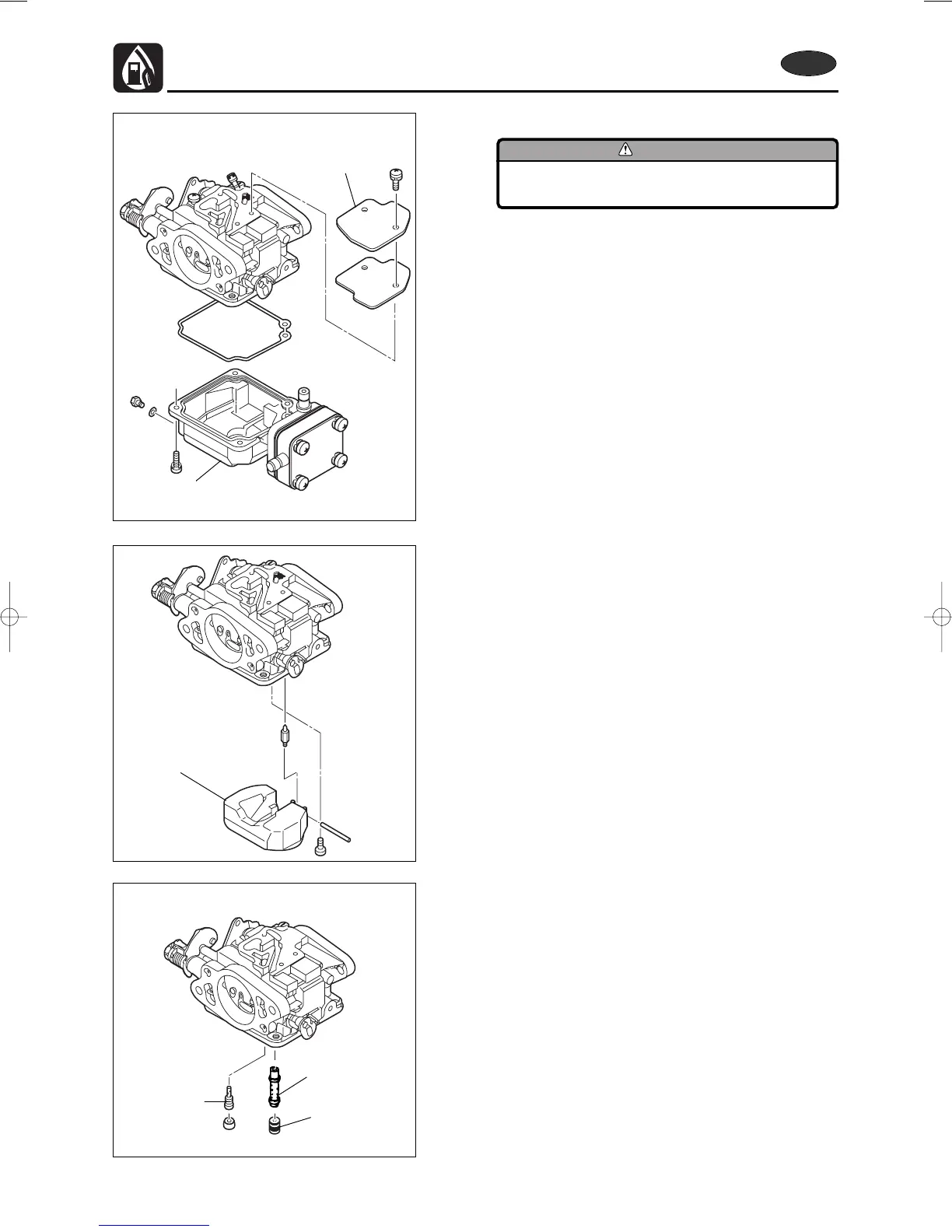

1. Remove float chamber 1.
2. Remove carburetor cover 2.
3. Remove float ass'y 3.
3
CAUTION
To prevent fuel from dripping on the floor,
use a vessel to catch the fuel.
4. Remove main jet 4, main nozzle 5 and slow jet 6.
6
5
4
