TOHATSU MX 50D2 - Inspection of Exhaust Cover; Removing Exhaust Cover

5-50
Power Unit
2st X50D2 2011
GB
11) Removing Exhaust Cover

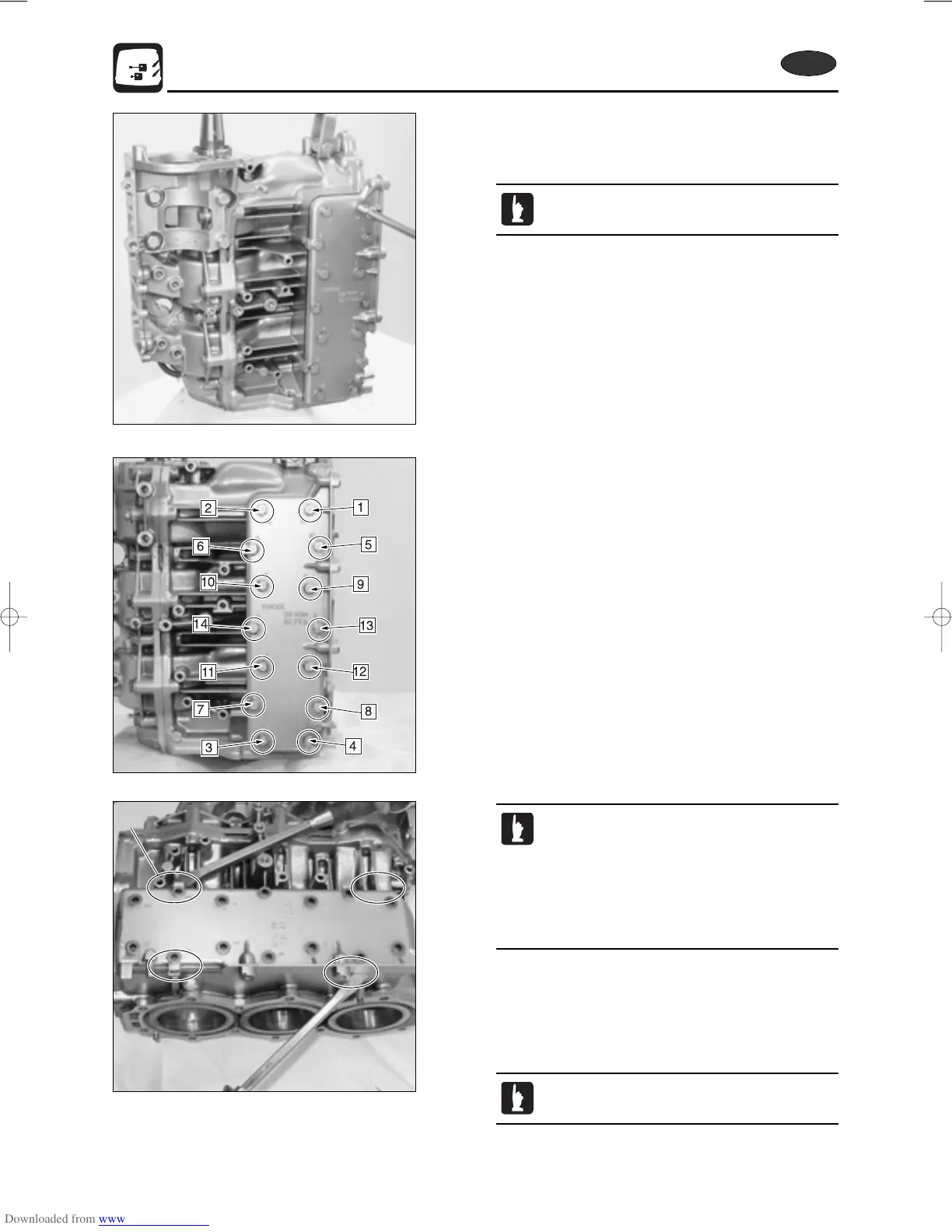

1. Loosen exhaust cover mounting bolts in the order shown,
remove them, and remove exhaust cover.
Loosen the bolts in descending order of the
numbers embossed on the exhaust cover.
· Pry the gap of the cover at four grooves a one
by one by using a bladed screw driver.
· The cover can be removed easier if parts
cleaning agent is applied in the gap one by one
from the top one. Be careful to pry the gap
evenly, or the cover may be damaged or
warped.
12) Inspection of Exhaust Cover
1. Check the removed outer exhaust cover and inner exhaust
cover for damages such as distortion or scratches on their
mating surface
Remove clogs and debris from cooling water
passage of exhaust cover.
