TOHATSU MX 50D2 - Removing Water Pump

6-30
Lower Unit
2st 50D2 2011
GB
3. Remove guide plate 6, gasket 7 and pump case (lower)
8.
8
2. Remove water pump impeller key 5.
5
6
7
When removing pump case (lower), insert bladed
screw driver into the groove of the case, and pry
slowly to separate the part.

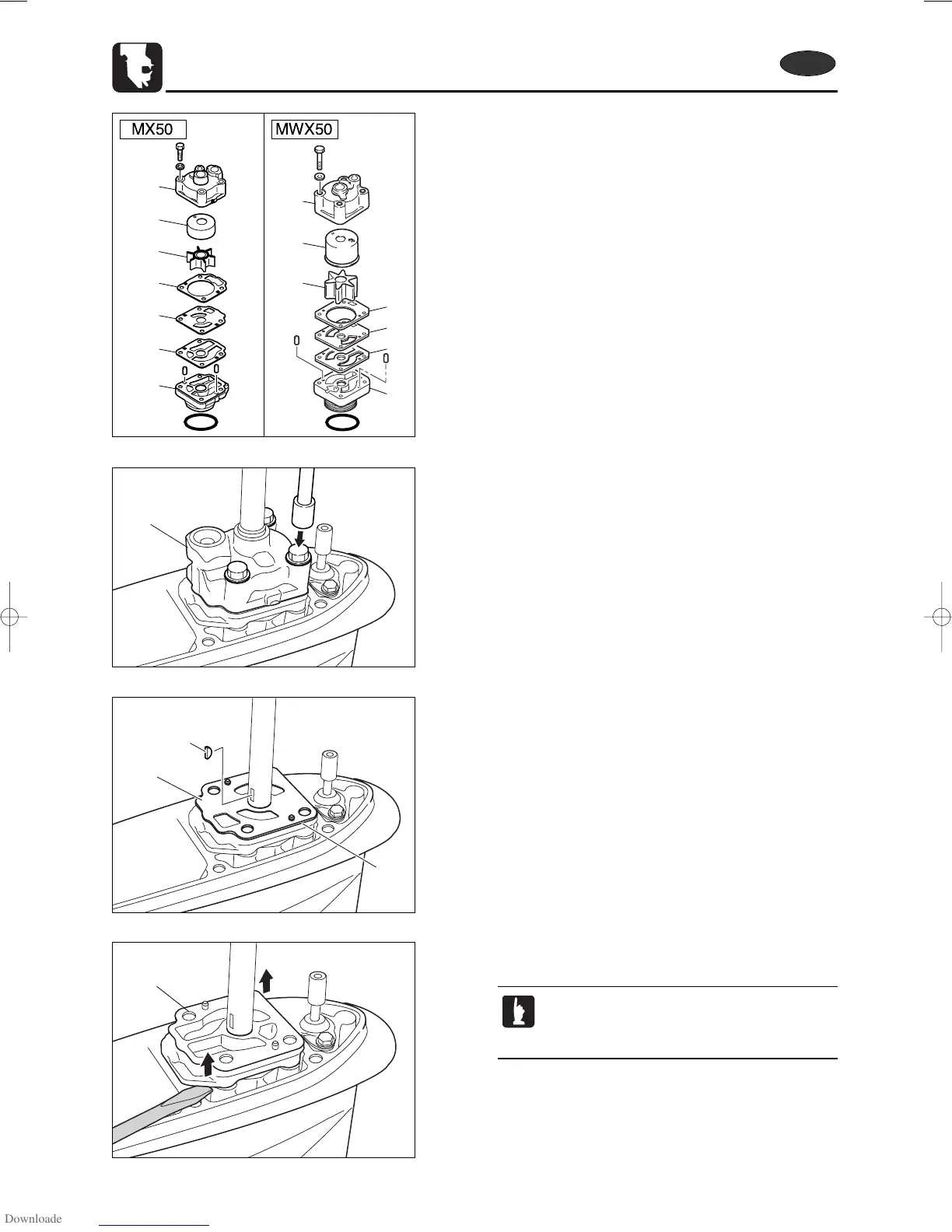

7) Removing Water Pump
1. Loosen and remove pump case (upper) bolts, and remove
pump case (upper) parts 1, 2, 3 and 4 in this order.
1
1
2
3
4
6
7
8
1
2
3
4
6
7
8
MWX50MX50
