Service Information
2st 50D2 2011
GB

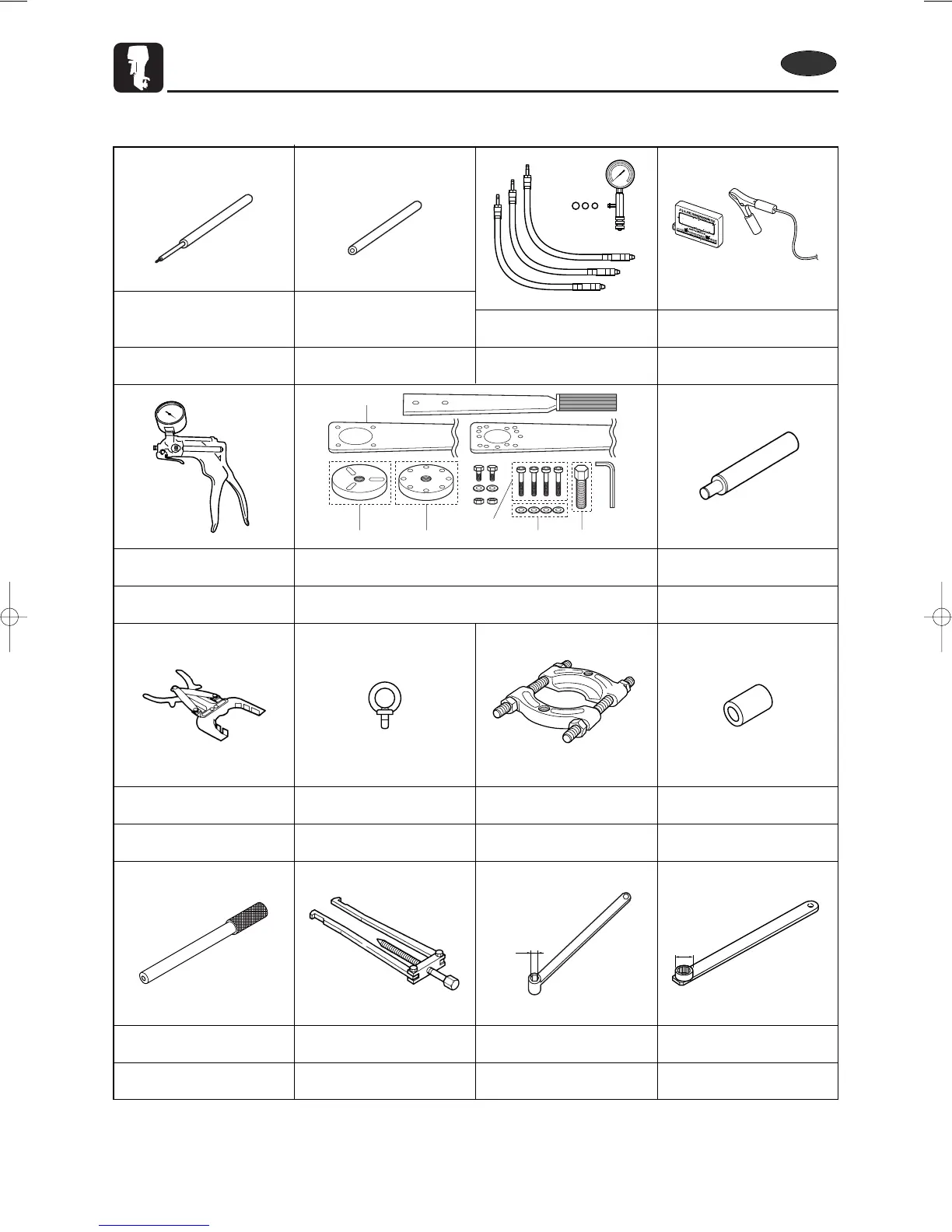

3) Special Tools
Detaching and re-attaching
the piston
Piston Pin Tool
P/N. 345-72215-0
Detaching and re-attaching
the piston rings
Piston Ring Tool
P/N. 353-72249-0
Measuring engine revolution
speed
Tachometer
P/N. 3AC-99010-0
Removing propeller shaft
housing
Propeller Shaft Housing Puller Ass'y
P/N. 3A3-72259-0
Inspecting pressure
Vacuum/Pressure Gauge
P/N. 3AC-99020-0
Removing or attaching pinion
(B) gear nut
Bevel Gear B Nut Wrench
MX50:P/N. 346-72231-0
25
Removing or attaching flywheel
Flywheel Puller Kit
P/N. 3T1-72211-0
940191-0800
3B7-72785-0
3B7-72784-03B7-72783-0
3T1-72781-0
3C7-72783-0
Removing spring pin
Spring Pin Tool A
P/N. 345-72227-0 (ø3.0)
P/N. 369-72217-0 (ø3.5)
Installing spring pin
Spring Pin Tool B
P/N. 345-72228-0 (ø3.0)
P/N. 369-72218-0 (ø3.5)
Measuring compression
pressure
Compression Gauge
P/N. 3AC-99030-0
Used to hook power unit when
hanging
Eye Bolt (Powerhead Lift Ring)
P/N. 3T9-72212-0
Removing main bearing and
reverse (C) gear bearing
Universal Puller Plate
P/N. 3AC-99750-0
Installing roller bearing
Roller Setting Piece
P/N. 3LC-72216-0
Installing piston pin
Piston Pin Tool
P/N. 3LC-72215-0
Removing or attaching pinion
(B) gear nut
Bevel Gear B Nut Wrench
P/N. 353-72231-0 (MWX50)
28
