TOHATSU MX 50D2 - Assembling Tilt Mechanism

Bracket
7-52
2st X50D2 2011
GB

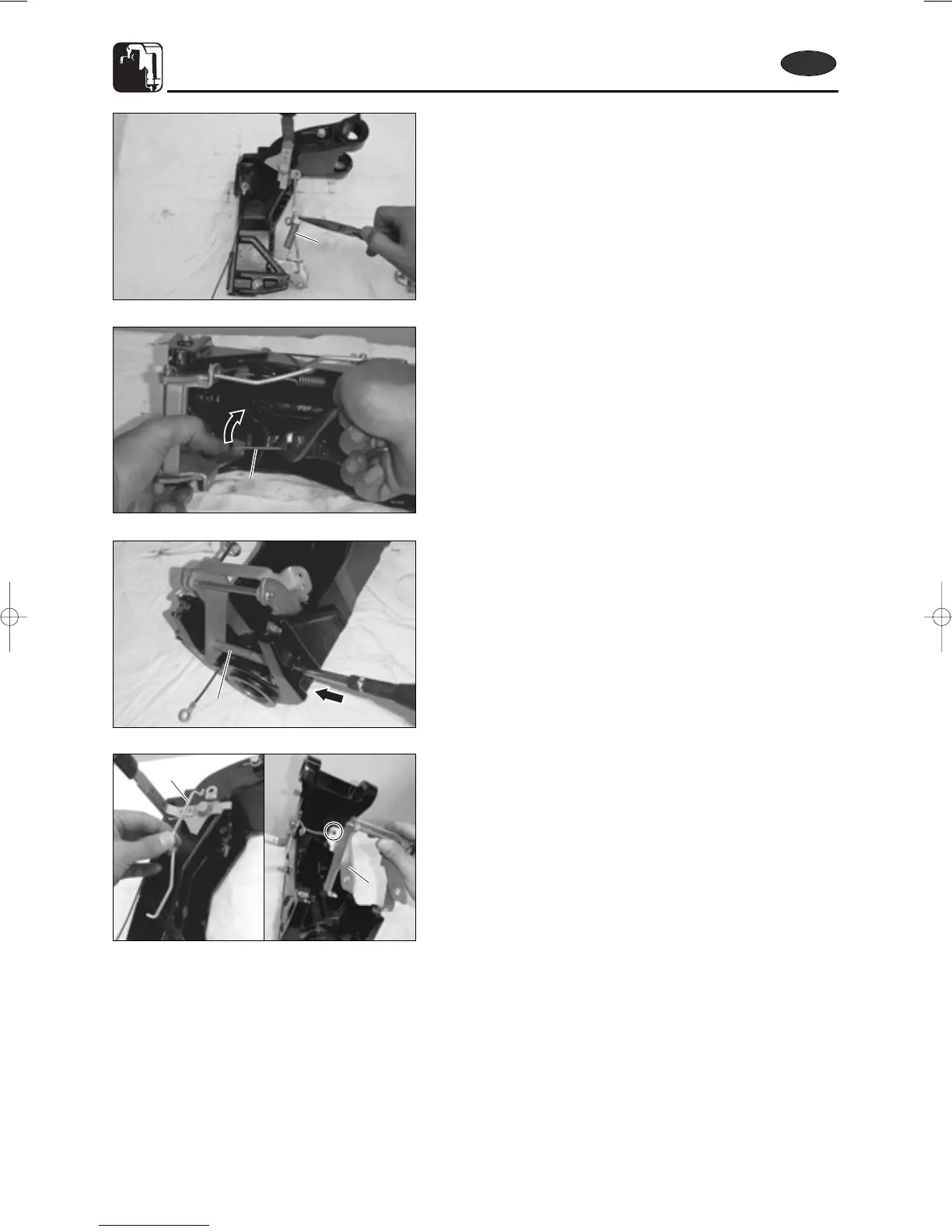

3. Remove springs 6.
4. Remove E-rings, and then, remove reverse lock shaft 7
by using screw driver.
2
1
2
66
77
66
16) Assembling tilt mechanism
1. Install reverse lock link 1 and arm 2 as shown and then,
install reverse lock shaft.
2. Install reverse lock spring 3 and spring 4 springs in
reverse procedures of disassembling.
