Tomberlin CrossFire 150 - Crankshaft Inspection

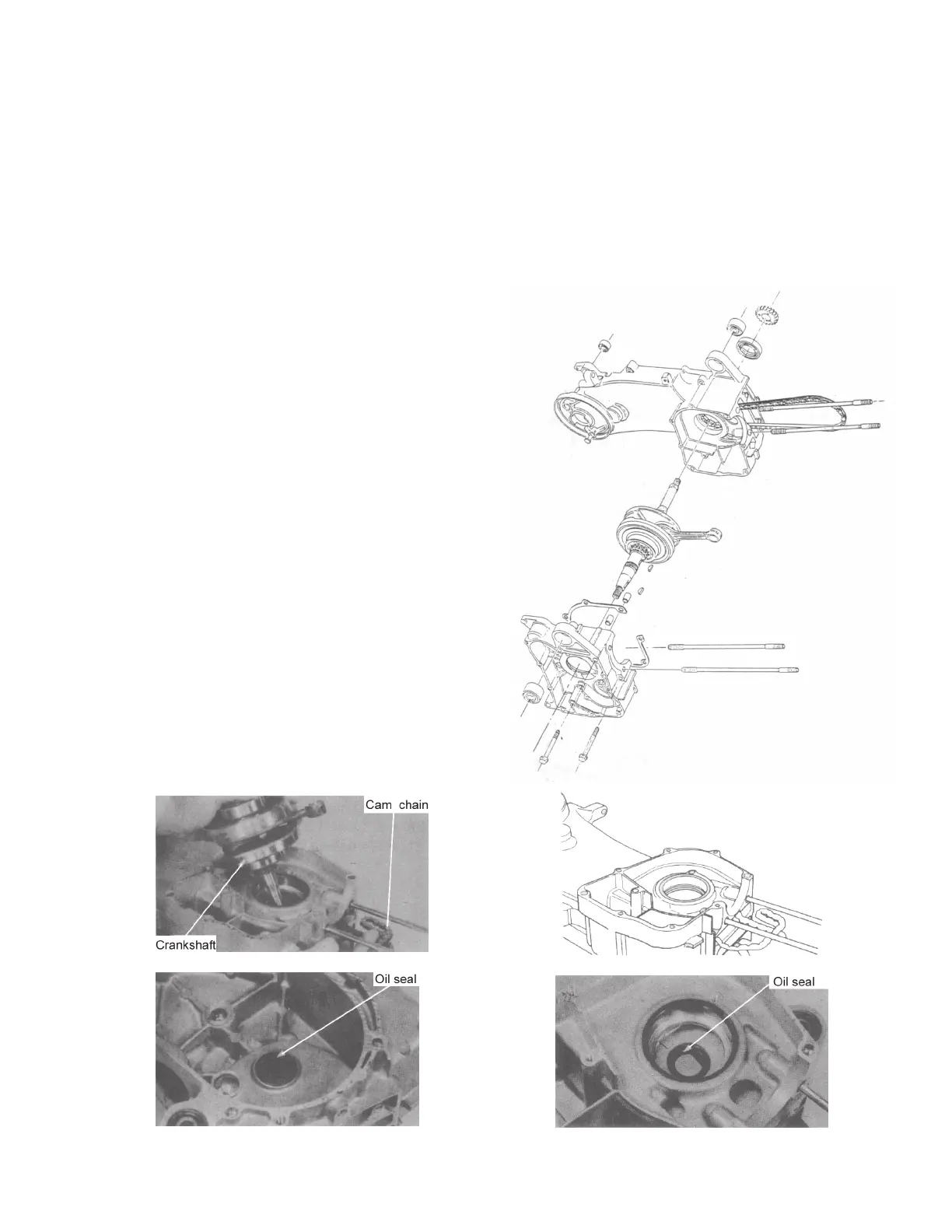

CRANK CONNECTING ROD SET
CRANKCASE AND CRANKSHAFT REMOVAL:
In order to remove the crankcase and crankshaft, one must fi rst:
1. Remove the engine.
2. Remove the covers for the cylinder head, clutch, and fan.
3. Remove the cylinder shroud.
4. Remove the cam holder
5. Remove the cam chain tensioner bolt and cam chain tensioner.
6. Remove the cylinder head.
7. Remove the cylinder.
8. Remove the piston
9. Remove the drive clutch.
10. Remove the AC generator.
11. Remove the starting motor.
12. Remove the right hand crankcase cover.
13. Remove the oil pump.
14. Remove the starter clutch. *
15. Remove the starting driven gear
16. Remove all crankcase bolts.
17. Separate the right crankcase and the left crankcase.
18. Remove the gasket and the dowel pins.
19. Remove the crankshaft from the crankcase.
20. Clean gasket surface.
21. Remove the oil seal from the left crankcase.
22. Remove the oil seal from the right crankcase.
*see Starter clutch under ELECTRICAL STARTING MECHANISM
