• Put the drive plate hub into the drive plate.
• Install the movable drive plate on the crankshaft.
• Enlarge the driven plate belt groove, and mount on the driven belt. Mount the other end of the driven belt on
• Mount the drive plate, the drive plate washer, and nut.
• Torque nut to 40 ft. / lbs.
• Remove the left crankcase cover.
• Remove the drive plate and the driven belt.
• Remove the clutch drum plate.
• Inspect if there is any abrasion or injury on the clutch drum.

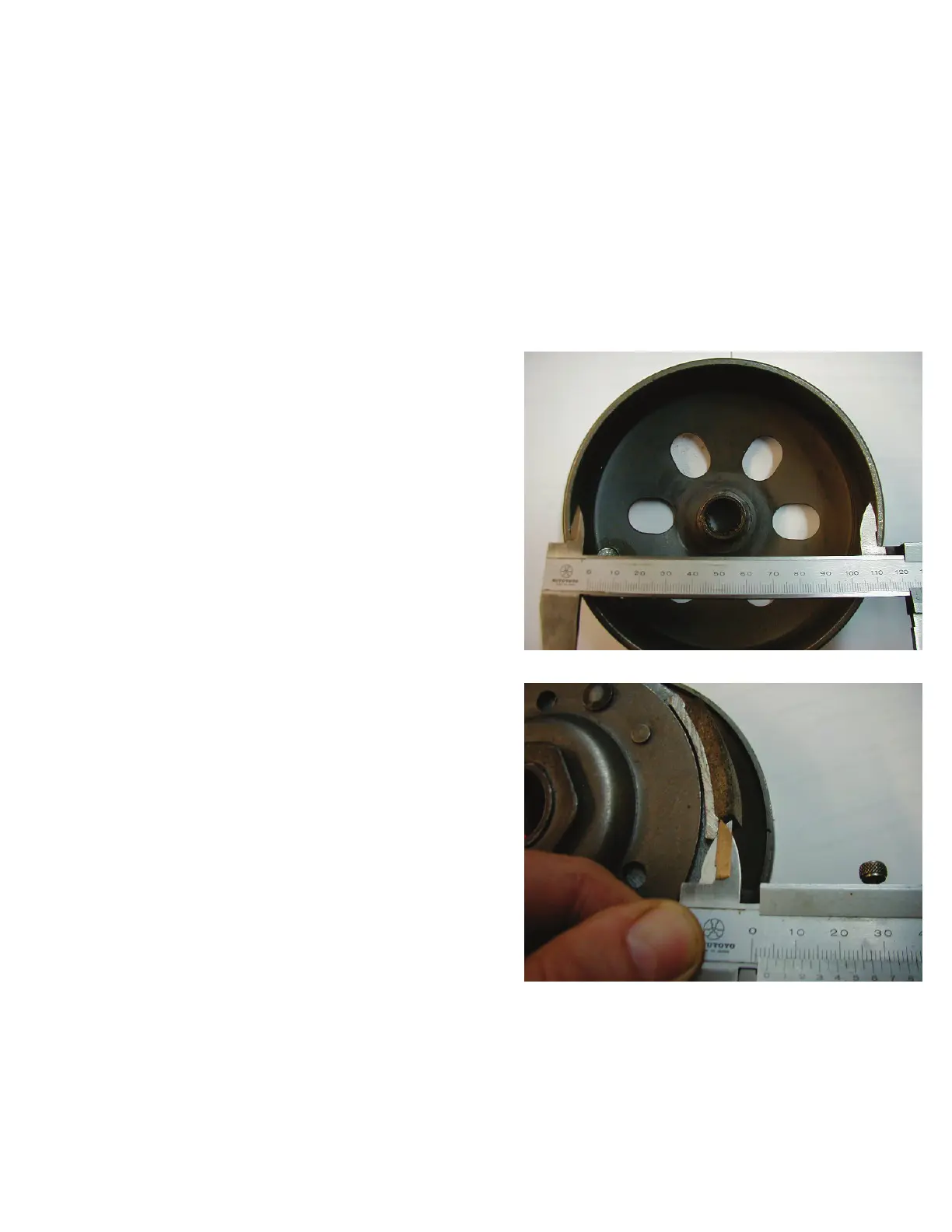

• Measure the inner diameter of the drum.
Service limit 125.5 mm 4.941 in.
• Inspect if there is any abrasion or injury of the clutch
centrifugal weight friction piece.
• Measure the thickness of the clutch shoes.
Service limit 1.5 mm 0.059 in.
• When the centrifugal weight set needs to be replaced, the
clutch must fi rst be disassembled.
If the drum is seriously worn it should be replaced
• Remove the clutch drum.
• Remove the whole set of clutch/shoes.
• Compress the driven pulley spring, and at the same time remove the nut on the shaft.
• Disassemble the driven pulley and the clutch.
• Remove the circlip and remove the connecting piece.
