Tomberlin CrossFire 150 - Rear Brake Inspection

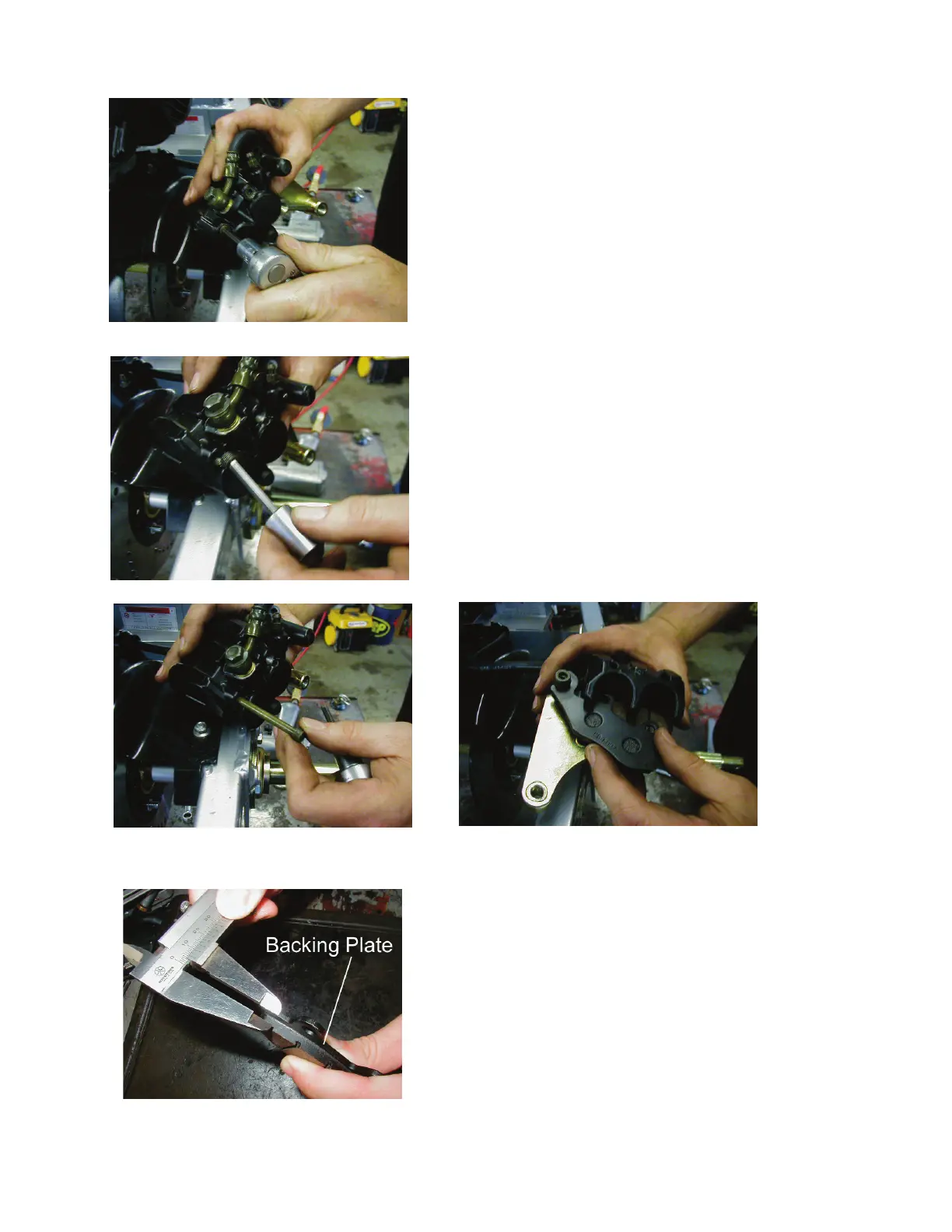

REAR BRAKE INSPECTION
• Remove 2 bolts holding caliper to frame.
• Remove both outer plugs.
• Remove brake pad pins and remove brake pads.
• Check thickness of pads and replace if out of service limit.
Service Limit
Measuring thickness without backing plate 2.0 mm 0.080 in.
Measuring thickness with backing plate 3.0 mm 0.120 in.
