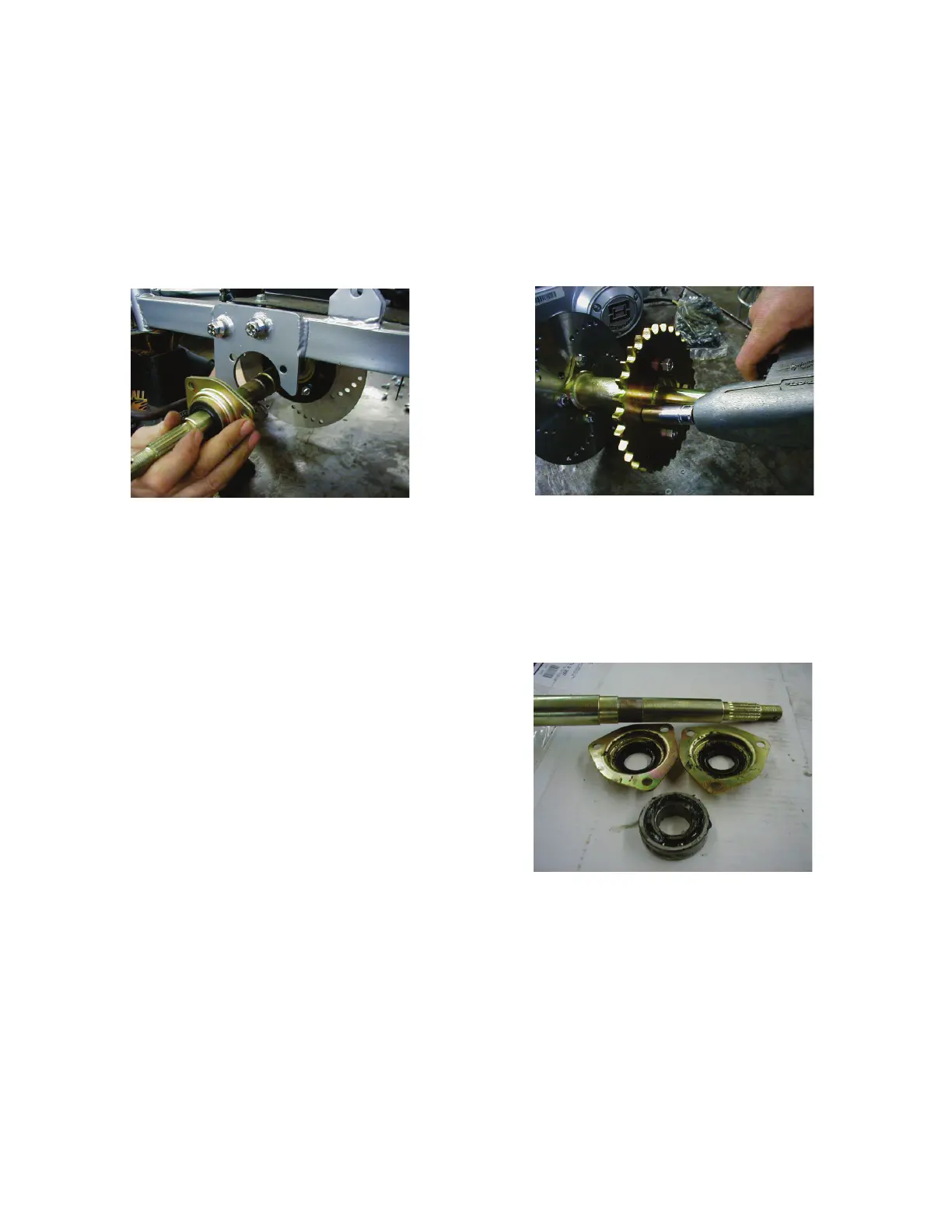

• Remove axle and bearing carriers as a unit.

REAR SPROCKET REMOVAL

• Remove the rear axle.

• Remove four bolts holding sprocket to axle

• Install new sprocket and reattach four bolts

• Torque to 20 ft. / lbs.

AXLE BEARING REMOVAL AND INSPECTION

• Remove rear hubs

• Remove 3 bolts holding axle bearing housing to frame

• Remove bearing from bearing housing and inspect bearings and seals for damage.

• Pack bearing in grease before installing

• Torque axle bearing bolts 18 ft. / lbs.

SWINGARM

Note: Swing arm, axle and motor can be removed as a unit if needed.

• Remove shock absorbers.

• Remove rear brake caliper and set aside. Do NOT remove brake hose.

• Unplug wiring from the electrical box.

• Remove throttle cable.

• Remove bolts from swingarm pivot.

• Check bushings and pivot bolts for wear. If wear is present both the bolt and bushing should be replaced.
