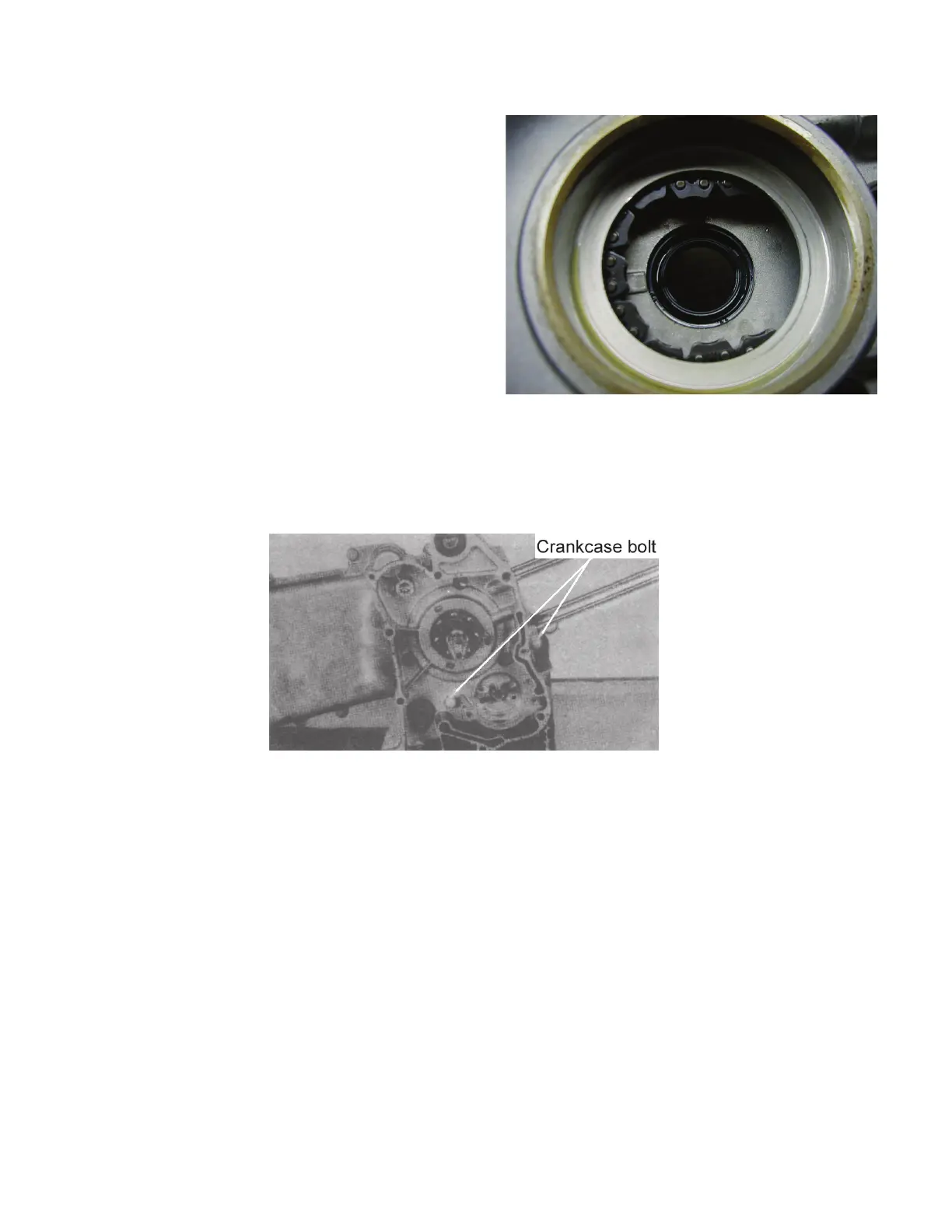

CRANKSHAFT AND CRANKCASE INSTALLATION

• Install the crankcase oil seal.

• Place the cam chain into the left crankcase.

• Put the crankshaft into the left crankcase.

Do not allow the cam chain to damage the oil seal.

• Mount the new dowel pins and gasket on the left crankcase -- joining the right crankcase and the left crank-

case together.

• Tighten the crankcase bolts.

Tightening torque 0.9 kg/m 78 in./lbs.

• Install the starter clutch.

• Reassemble in reverse order of disassembly.
