Always wear eye protection when working with cleaning agents.
• Clean the carburetor body, jets, and all the air passages in body with carburetor cleaner.
Note: It may be necessary to soak parts in a high caustic carburetor cleaner.
Do not soak rubber parts. (O-rings, needle valve, vacuum slide diaphragm etc.)
Instead, clean rubber parts with mild detergent and hot water.
• Use carburetor cleaner or contact cleaner to check passages in body making sure that they are not obstructed.
• Use low-pressure air to dry all components.
Replace parts in proper order:
• Install pilot jet needle jet, jet holder, and main jet.
• Install needle valve with fl oat sliding pin locating in place.

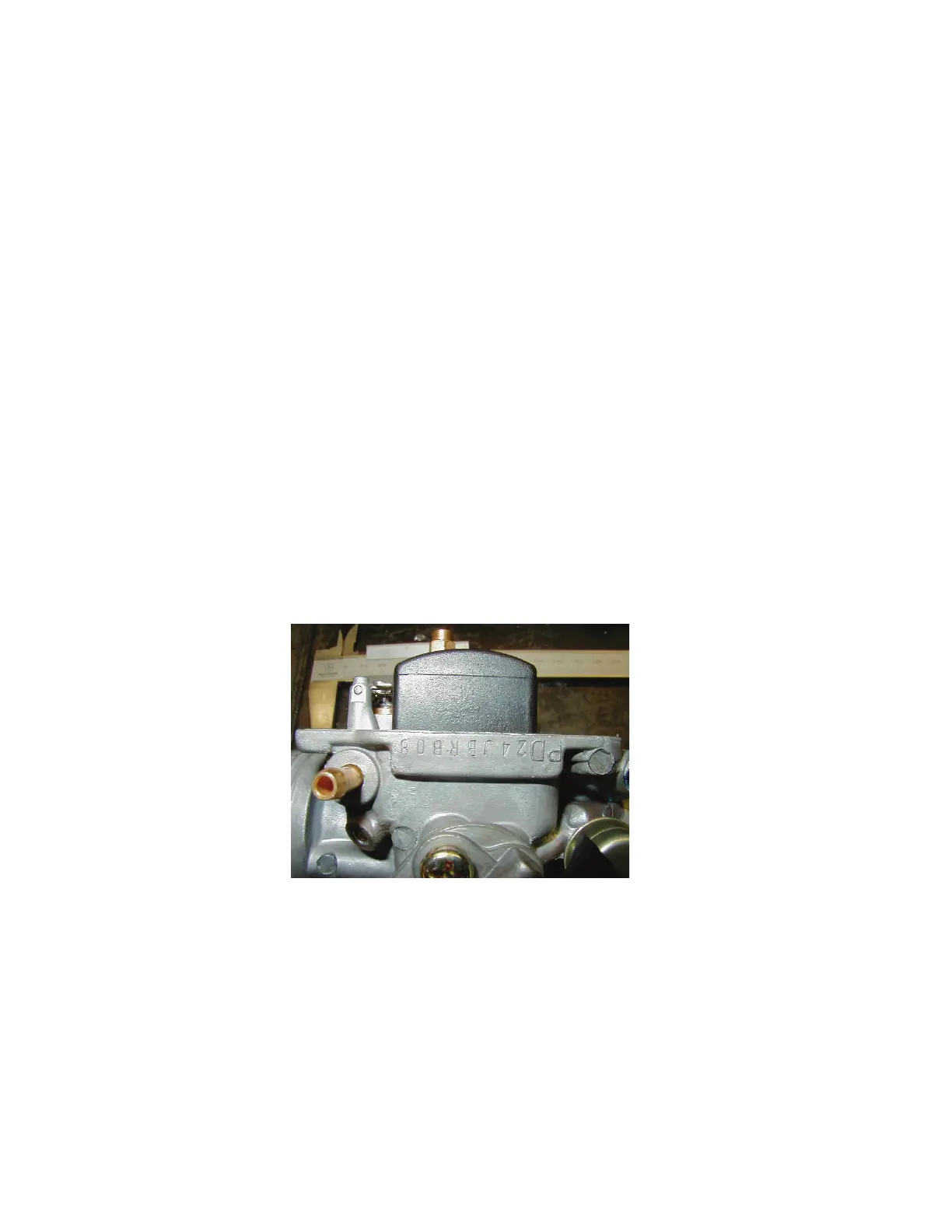

• Check fl oat level by placing carburetor at angle so that fl oat adjustment tab contacts needle valve. Float seam
should be diagonal with carburetor fl oat bowl surface.
Bending tab on fl oat that contacts needle valve can make adjustment of fl oat level.
• Inspect fl oat bowl seal for damage.
• Install fl oat bowl and the four screws.
