• When plunger is covering hole completely the fuel fl ow is shut off.

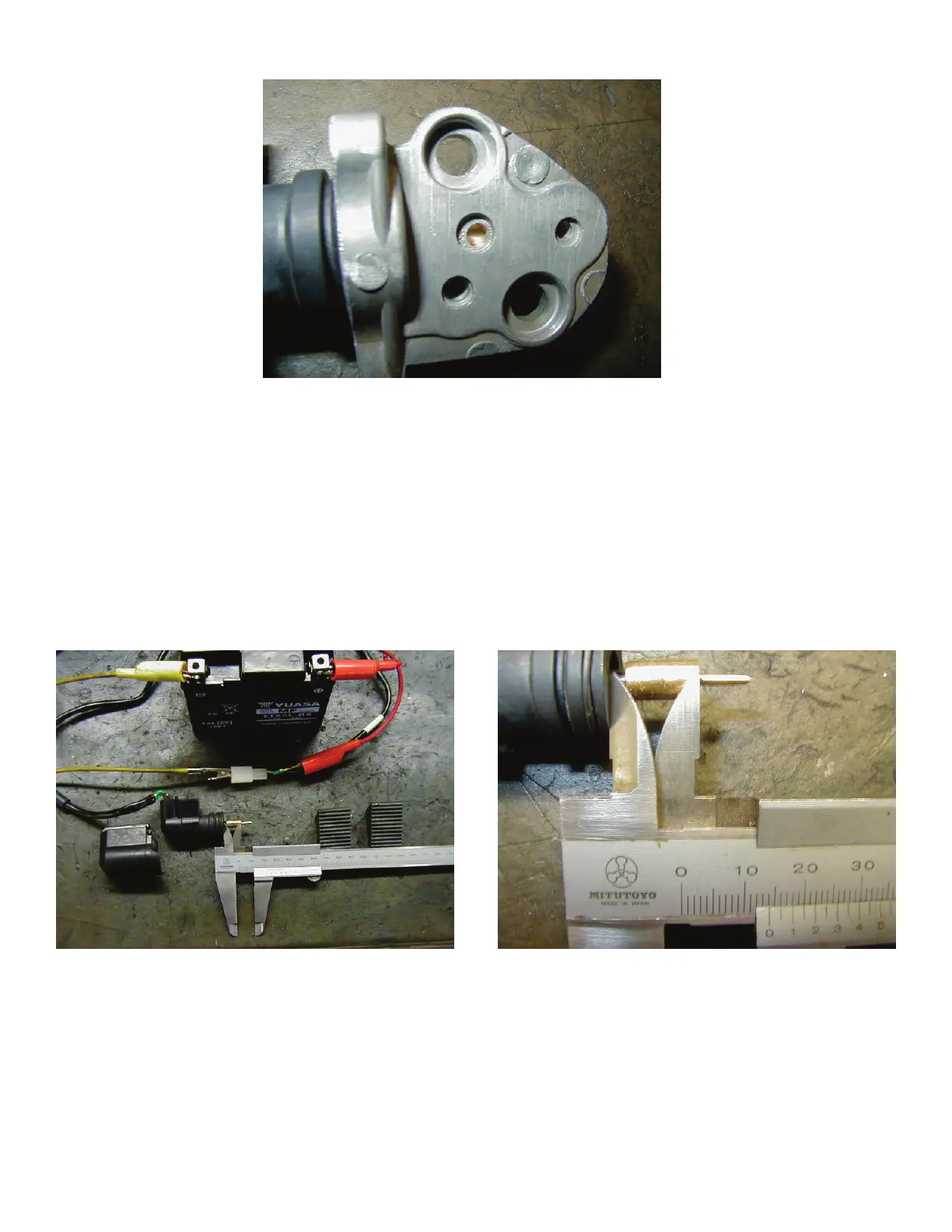

ENRICHMENT TESTING
• Remove the two screws and clamp that secure the solenoid to mount.
• Pull solenoid out of mount.
• Measure the distance from the base of solenoid to sealing edge of plunger.
• Connect a good 12-volt battery to the solenoid using jumper wire for 5 minutes and measure the distance
again.
Cold 11mm ~ .433 in. Hot 14mm ~ .552 in.
WARNING
Solenoid becomes hot during testing.
• Inspect O-ring on solenoid for damage.
• Install plunger into mount making sure that plunger moves freely in mount.
• Install assembly on carburetor.
46
