Chapter 7 – UT Screens
51
Temp and T. Voltage
Temp: Temperature at the moisture sensor. This can be calibrated by
entering the actual known temperature if needed.
T. Voltage: Voltage feedback from temperature sensor.
3 / 4 button
enables the Mk3 or Mk4 sensor type to be selected.

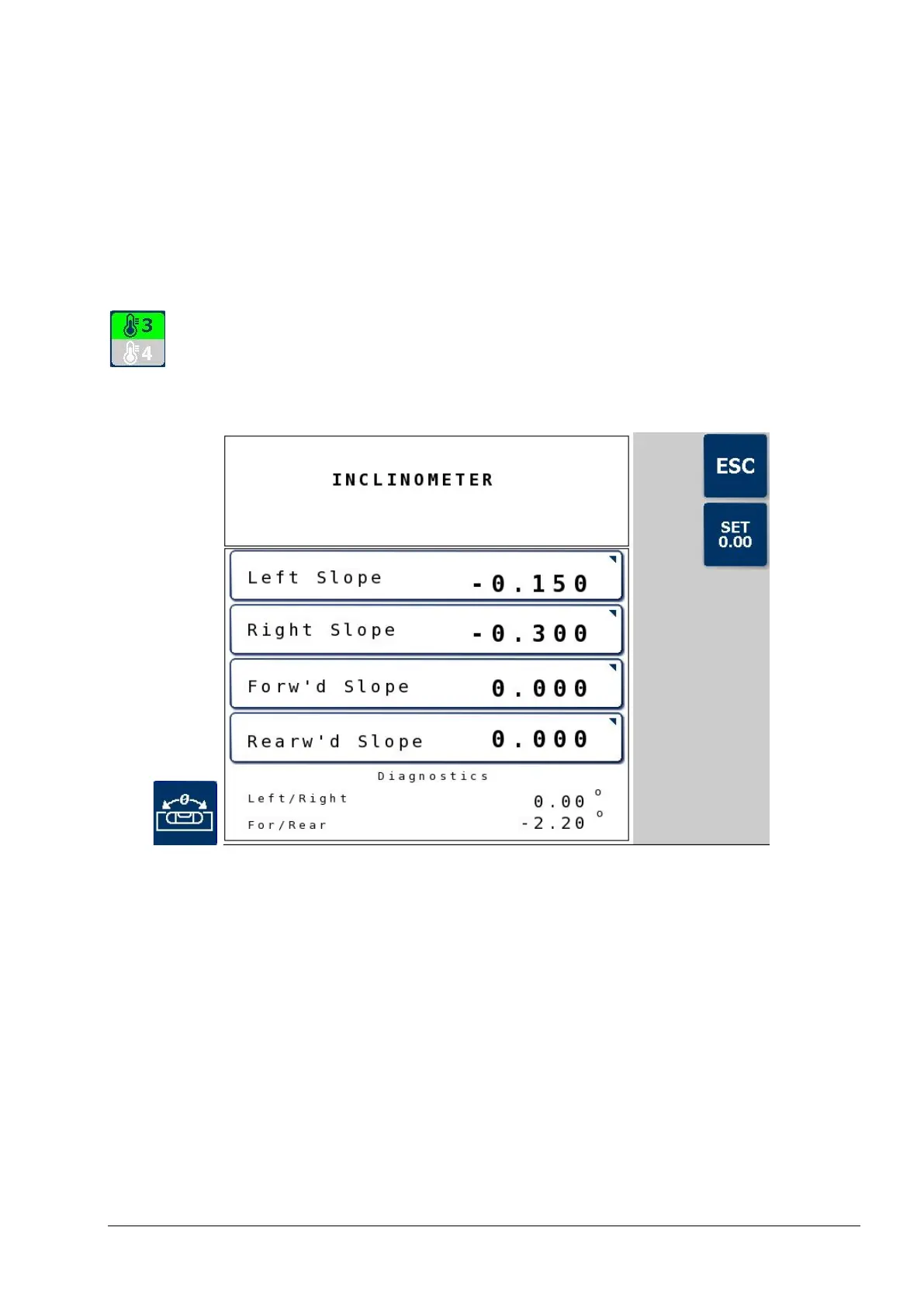

7.7.7. Inclinometer
Movement on sloping ground alters the distribution of grain on the
elevator paddles and affects grain measurement. There are four slope
factors that compensate for the effect of side slope and forward /
backward slope on the flow of grain through the clean grain elevator.
Slope factors are derived from the measurement of grain throughput in
barn tests on a wide range of combine makes and models.
The slope factors can be found on the calibration spreadsheet that is
supplied in the installation manual. Alternatively, they can be
calculated using barn tests.
