7-4
www.topconpa.com
Topcon GPS Manual
The next screen to be displayed is the Status screen of the
Diagnostics tab.
Note that only one of the status boxes is green with numbers and
the rest are red without numbers inside. This is normal as a Base
Station does not need this data (a Rover GPS does however).

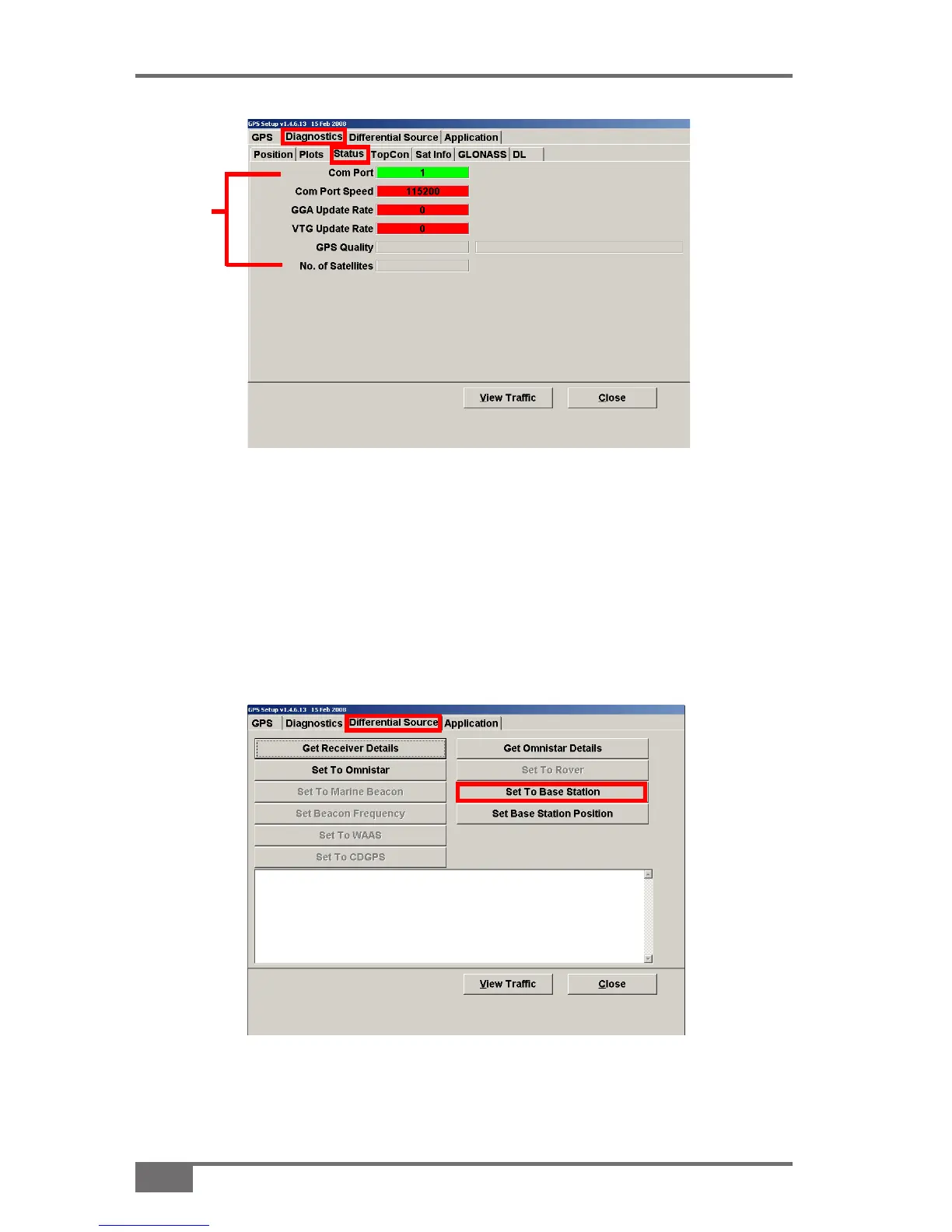

Figure 7-5. Diagnostics>Status Tab
Figure 7-6. Differential Source Tab
Status
Boxes
To Next Page
