How to enter grade
1 Press the X or Y key to begin grade input.
The plus or minus symbol of the axis selected will flash.
2 Select positive or negative grade by pressing arrow
keys (Up or Down).
3 Move the cursor by pressing the arrow keys (Right or
Left).
4 Increase or decrease the number by pressing the arrow keys (Up or Down).
5 Repeat steps 3 to 4 to set the grade you desire.
6 Press the [ENT] key to finish input.
Confirm the [OK].
If the [NG] mark is displayed, press the [ENT] key.
• The displayed value can be reset to 00.000% by holding down the [X] or [Y] key for
several seconds.
• If the grade value exceeds the possible range, X and Y will alternately blink. Please
input a correct value.

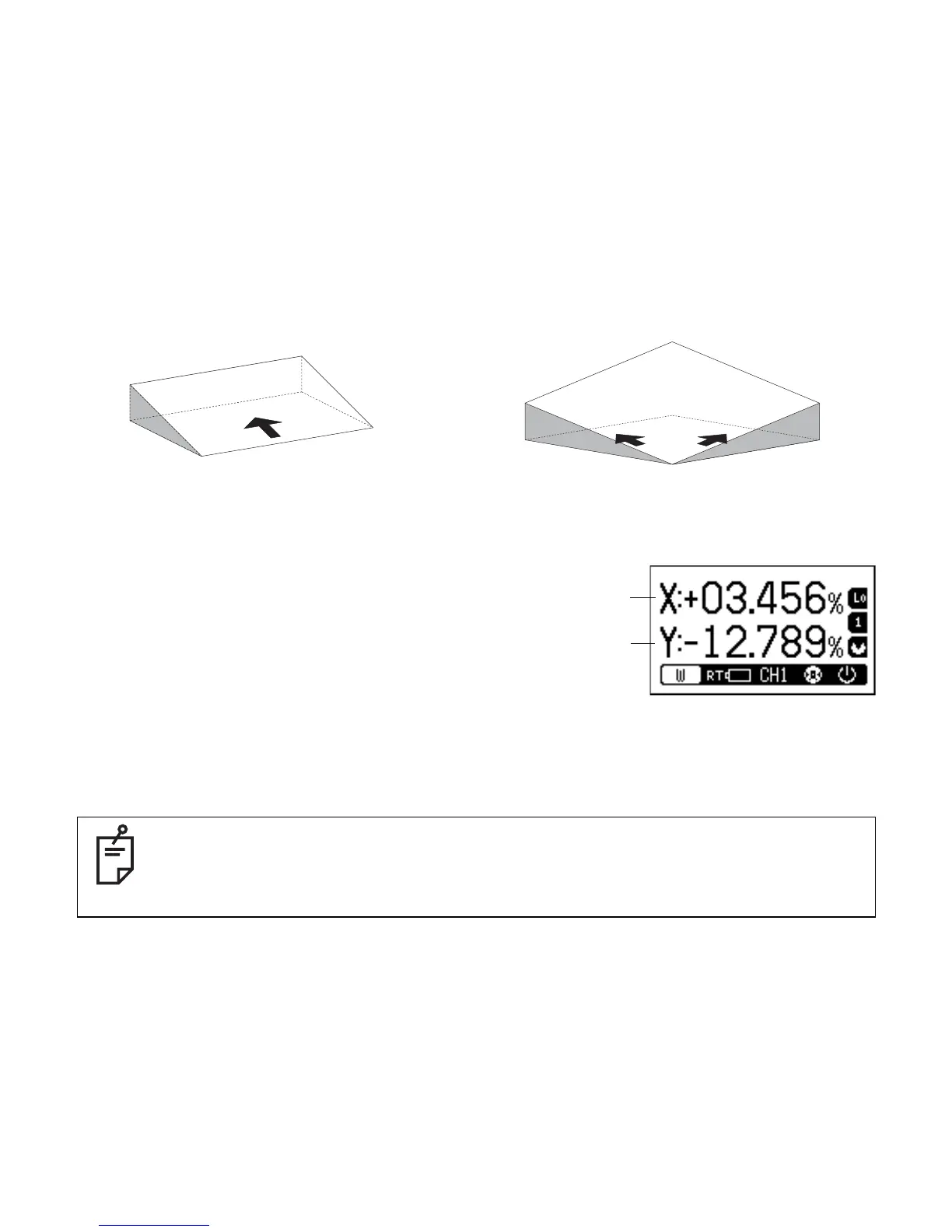

Single axis Dual axes
Grade range:
X: –10%~+10%
or
Y: –25%~+25%
Grade range:
X: –10%~+10%
Y: –25%~+25%
X axis
Y axis
X axis
Y axis
