Topcon RT-5SW - Changing Masking Mode

31
Change the masking mode
To Set the Masking
You can set the masking by pressing the Mask Key in the same manner as before.
The arrow keys (Y+‚ X
-, Y-, X+) are related with the masking directions as shown in above figures.

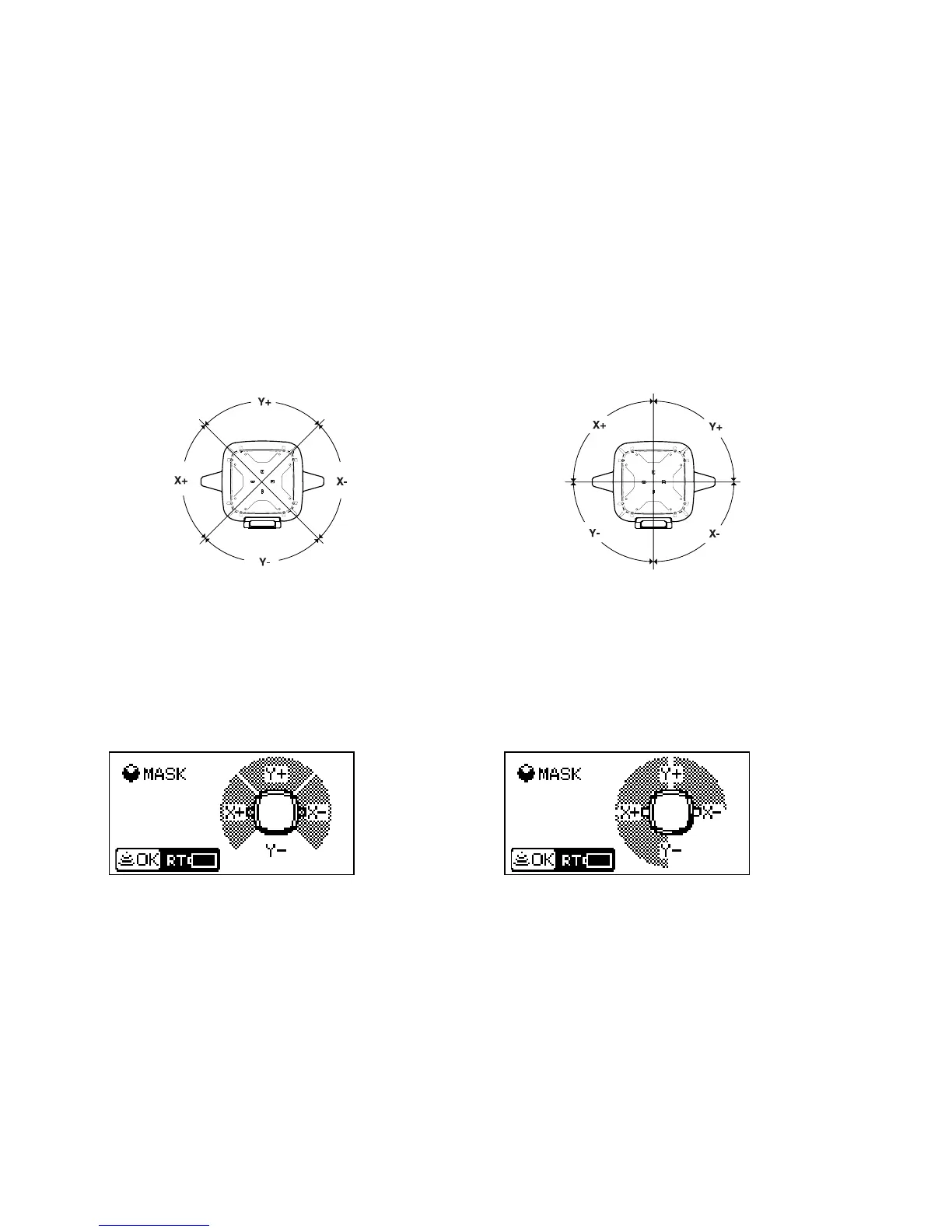

Sample display
Mode 1 Mode 2
As seen
from above
As seen
from above
You can select a masking mode among two modes as shown above.
Y axis
X axis
Mode 1 Mode 2
