Toptech RCU II DIV2 - 2.1.2.3 Bottom View; Figure 2.4 Unit Outline Drawing - Bottom View -2 Hole Base; Figure 2.5 Unit Outline Drawing - Bottom View - 5 Hole Base

10
2.1.2.3 Bottom View
2.1.2.3.1 2- Hole Base
2 x 1” NTP Aluminum HUBS

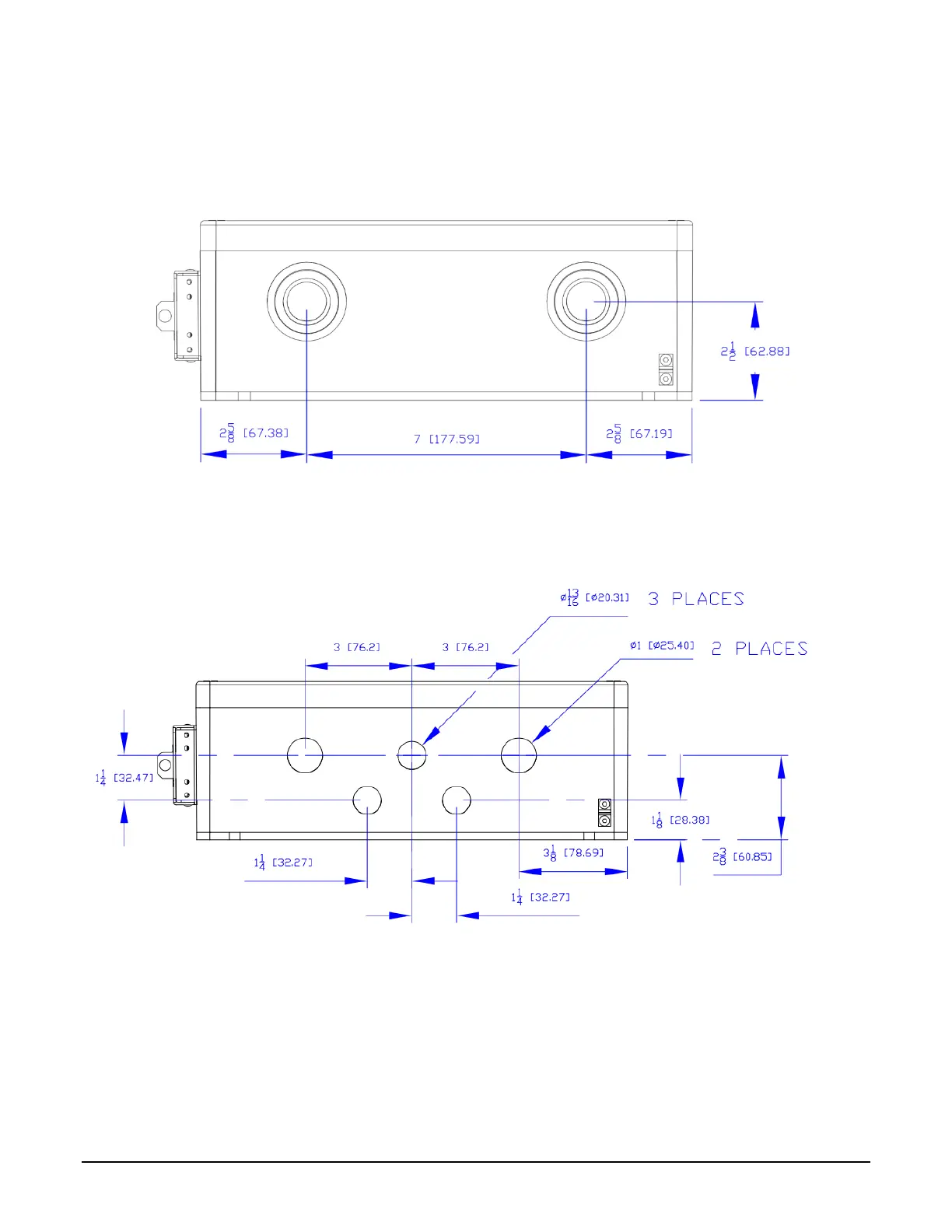

Figure 2.4 Unit Outline Drawing – Bottom View -2 Hole Base
2.1.2.3.2 5- Hole Base (Europe)
3xM20 and 2xM25
Figure 2.5 Unit Outline Drawing – Bottom View - 5 Hole Base
