Toptech RCU II DIV2 User Manual

66
The MultiLoad II/ RCU II DIV-2 has been constructed with replaceable modules or sub-assemblies that
are available from Toptech. These include:
- CPU Subassembly (CPU Chassis, CPU Board, Power Supply/ COM Board, I/O Board) 1
- Display Subassembly (Active Matrix Display and Display Board) 2
- Keypad 3
- Prox Reader 4
- W&MS Subassembly 5
- Iceshield
The following sections describe how to remove and replace each subassembly and, when applicable,
how to further disassemble the subassembly.

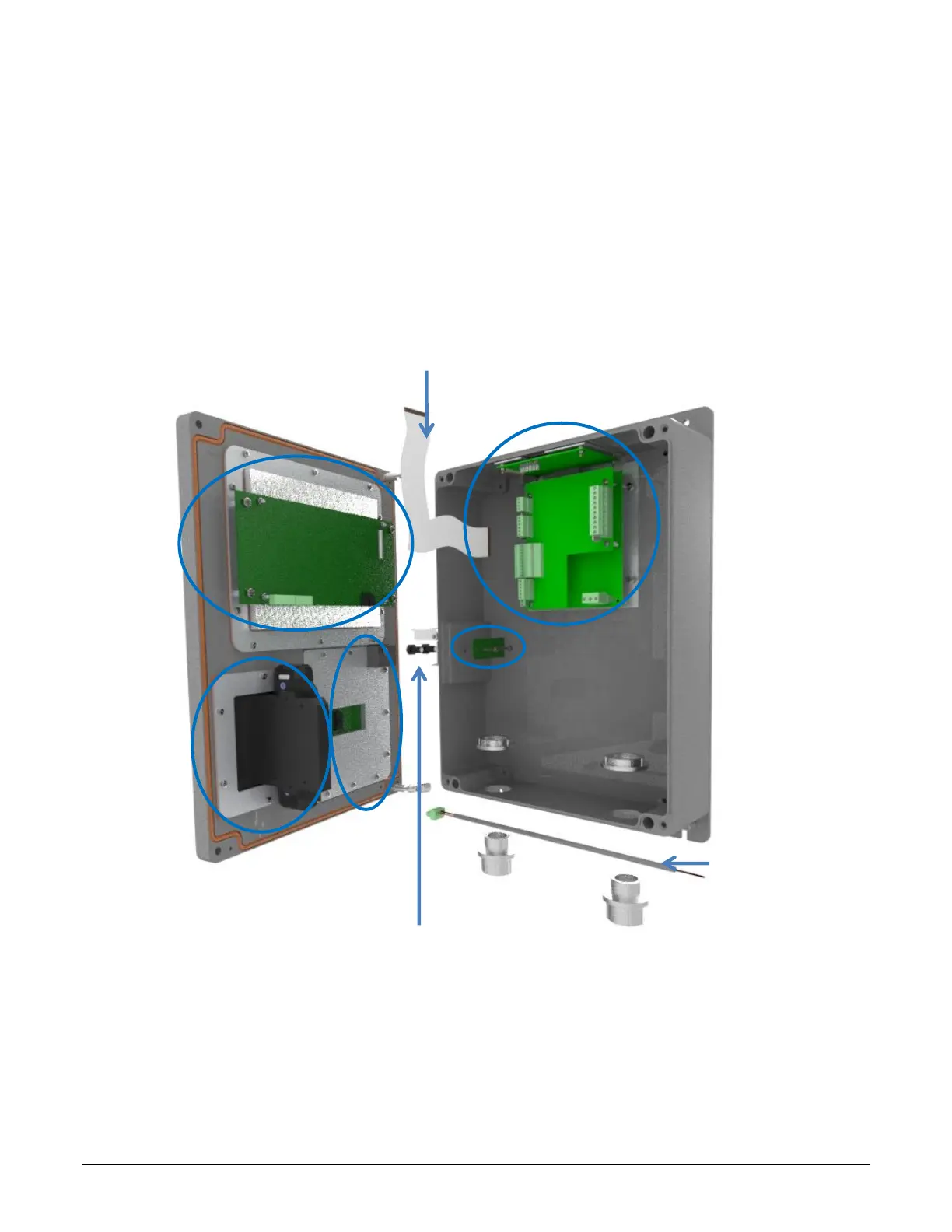

Figure 7.2 ML II/ RCU II Div2 Unit Assembly Slotted Card Holder with MT11
4
1
BACKLIGHT POWER
CABLE
W&M MAGNETIC
BOLTS
6
DISPLAY INTERFACE
CABLE
2 2
5
3
