tomow(nottoneutral)whilethemachineisinmotion.
Nodamagewillresult.
•RearPosition-neutralandbacklapping
•MiddlePosition-usedformowingoperation
•FrontPosition-usedfortransportoperation
IgnitionSwitch
Insertthekeyintotheswitch(Figure19)andturnit
clockwiseasfaraspossibletotheStartpositiontostart
theengine.Releasethekeyassoonastheenginestarts;
thekeywillmovetotheOnposition.Turnthekey
counterclockwisetotheOffpositiontostoptheengine.
SteeringWheelLockingLever
Rotatethelever(Figure20)forwardtoloosenthe
adjustment,raiseorlowersteeringwheelforoperator
comfort,then,rotatetheleverrearwardtotightenthe
adjustment.

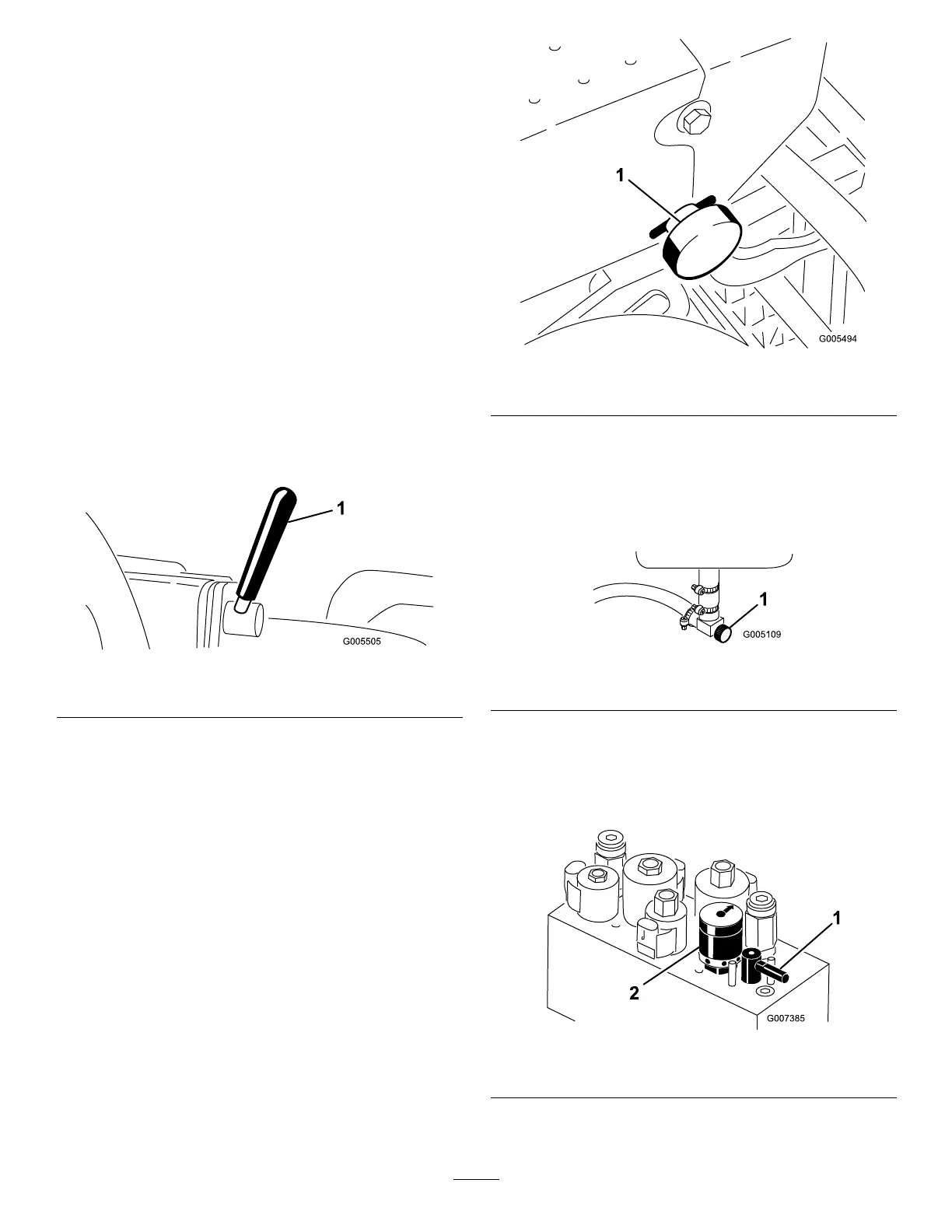

Figure20
1.Steeringwheellockinglever
SteeringArmLockingKnob
Loosenknob(Figure21)untilshoulderonknobclears
thenotchesinsteeringarm.Raiseorlowersteeringarm
todesiredheightwhilealigningshoulderofknobwith
notchinsteeringarm.Tightenknobtolockadjustment.
Figure21
1.Steeringarmlockingknob
FuelShut-OffValve
Closethefuelshut-offvalve(Figure22),underthefuel
tank,whenstoringortransportingthemachineona
truckortrailer.
Figure22
1.Fuelshut-off(underthefueltank)
BacklapLever
Usethebacklaplever(Figure23)inconjunctionwiththe
lowermow/raisecontrolleverforbacklappingthereels.
Figure23
1.Backlaplever2.Reelspeedcontrol
