Toro 30447N - Page 21

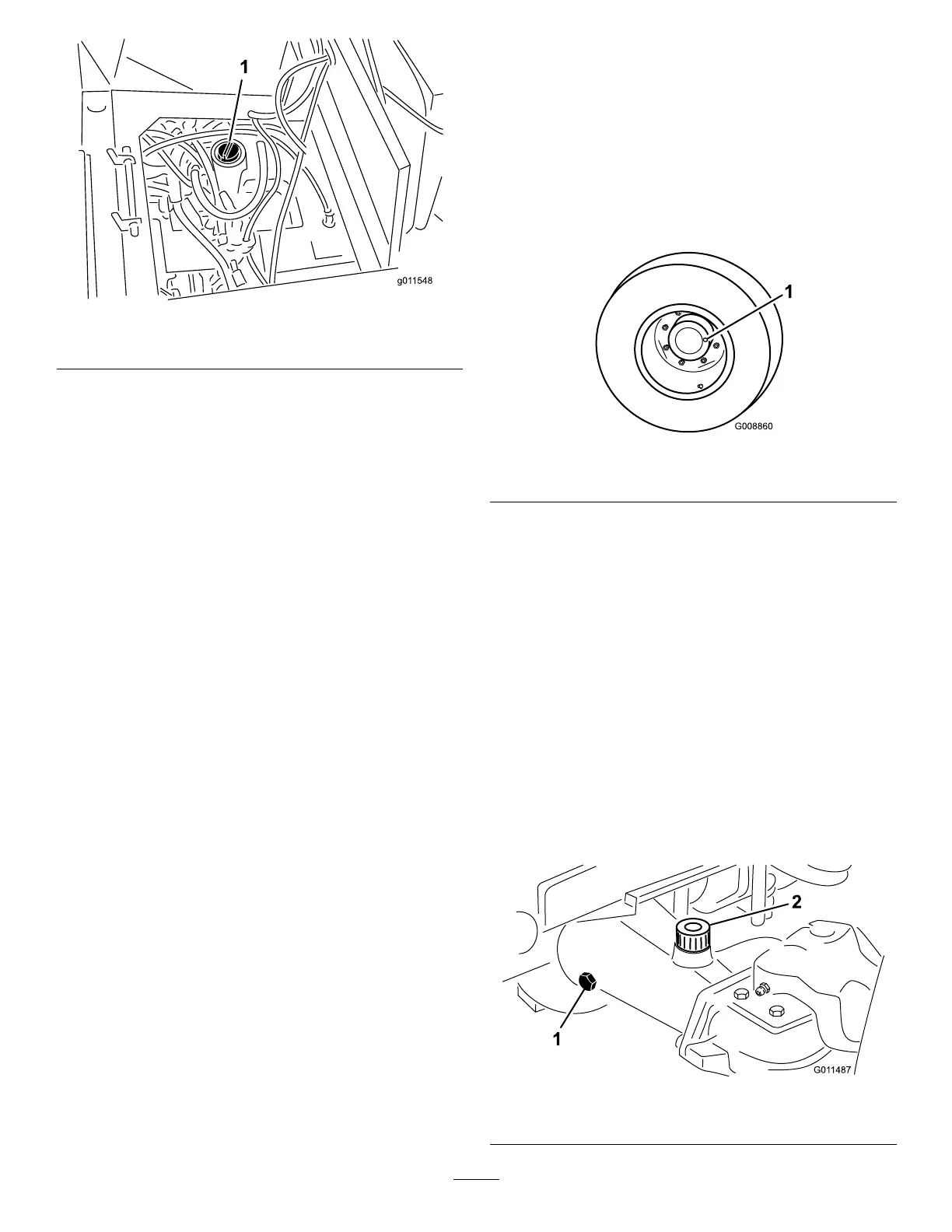

Figure12
1.Hydraulictankcap
4.Removethedipstickfromthellerneckandwipeit
withacleanrag.Insertthedipstickintothellerneck;
thenremoveitandchecktheuidlevel.Theuidlevel
shouldbebetweenthetwomarksonthedipstick.
5.Ifthelevelislow,addtheappropriateuidtoraisethe
leveltotheuppermark.
6.Installthedipstickandcapontothellerneck.
CheckingthePlanetaryGearDriveOil
ServiceInterval:Every400hours
Checktheoillevelafterevery400hoursofoperationorif
externalleakageisnoted.UsehighqualitySAE85W-140gear
lubeasareplacement.
Thecapacityofthesystemisapproximately16oz(0.5l).
1.Withthemachineonalevelsurface,positionthewheel
sothatthecheck/drainplug(Figure13)isateitherthe
3or9o'clockposition.
Figure13
1.Check/drainplug
2.Addgearoiltotheholeintheplanetary,ifnecessary,
tobringtheoiluptotheproperlevel.Installtheplug.
3.Repeattheprocedureontheoppositegearassembly.
CheckingtheRearAxleLubricant
ServiceInterval:Every400hours
TherearaxleislledwithSAE85W-140gearlube.Checkthe
oillevelbeforetheengineisrststartedandevery400hours
thereafter.Thecapacityis80oz(2.4l).Visuallyinspectfor
leaksdaily.
1.Positionthemachineonalevelsurface.
2.Removeacheckplugfromoneendoftheaxle
(
Figure14)andmakesurethatthelubricantisuptothe
bottomofthehole.Ifthelevelislow,removethell
plug(Figure14)andaddenoughlubricanttobringthe
leveluptothebottomofthecheckplugholes.
Figure14
1.Checkplug
2.Fillplug
21
