AdjustingtheAnti-Scalp
Rollers
Wheneveryouchangetheheightofcut,itisrecommendedto
adjusttheheightoftheanti-scalprollers.
1.DisengagethePTO,movethemotion-controlleversto
theNEUTRAL-LOCKposition,andengagetheparking
brake.
2.Shutofftheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Afteradjustingtheheightofcut,adjusttherollersby
removingtheangenut,bushing,spacer,andbolt
(Figure31,Figure32,andFigure33).
Note:The2middlerollersdonothaveaspacer
(Figure32).
4.Selectaholesothattheanti-scalprollerispositioned
tothenearestcorrespondingheightofcutdesired.
5.Installtheangenutbushing,spacer,andbolt.Torque
theboltto54to61N∙m(40to45ft-lb)(Figure31,
Figure32,andFigure33).
6.Repeatthisadjustmentontheotheranti-scalprollers.

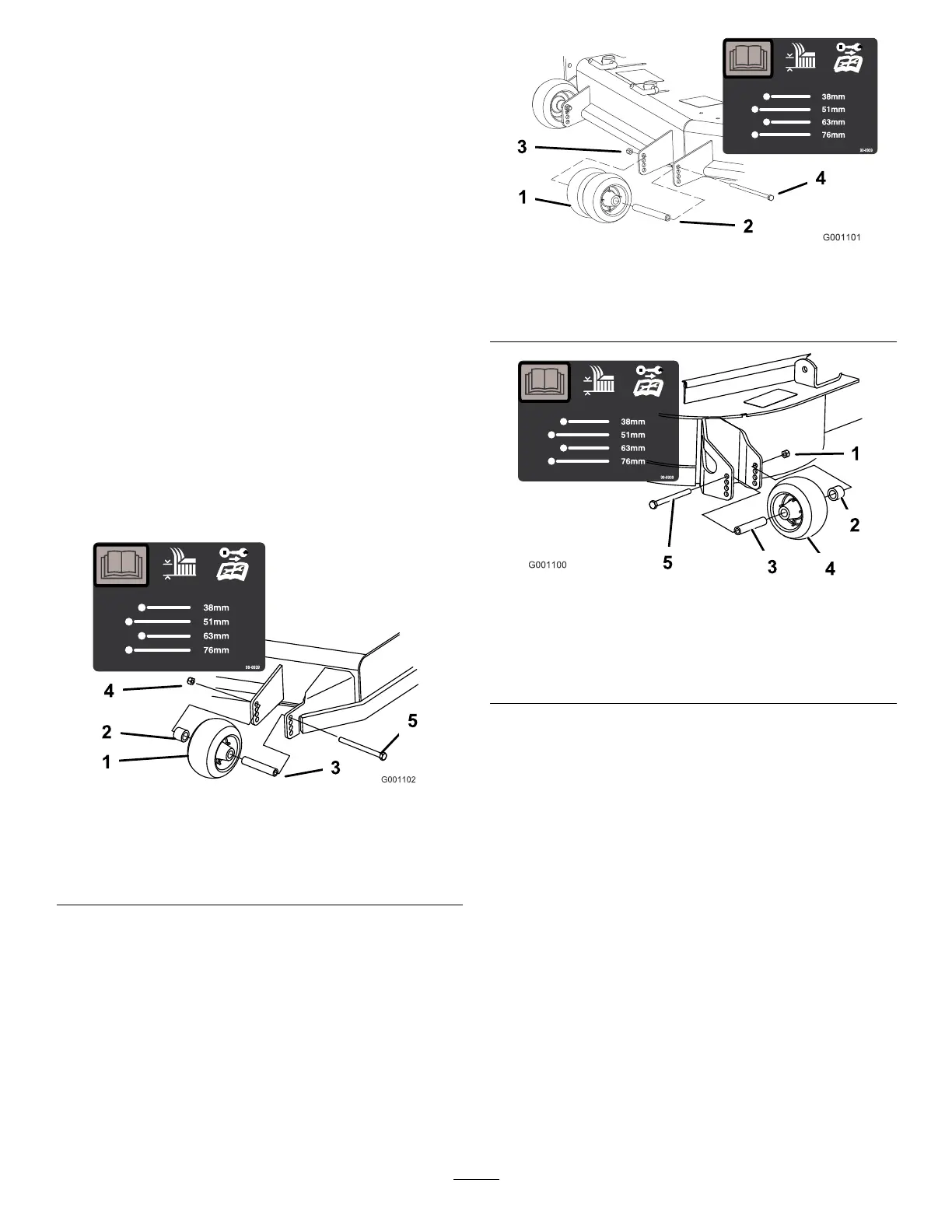

g001102
Figure31
1.Anti-scalproller4.Flangenut
2.Spacer
5.Bolt
3.Bushing
g001101
Figure32
1.Anti-scalproller3.Flangenut
2.Bushing4.Bolt
g001100
Figure33
1.Flangenut4.Anti-scalproller
2.Spacer
5.Bolt
3.Bushing
AdjustingtheFlowBafeCam
Locks
Thisprocedureisapplicableonlytomachineswiththe
ow-bafelocks.Certainmodelshavenutsandboltsinplace
oftheow-bafelocksandcanbeadjustedthesame.
Youcanadjustthemower-dischargeowfordifferenttypes
ofmowingconditions.Positionthecamlocksandbafeto
givethebestqualityofcut.
1.Disengagetheblade-controlswitch(PTO),movethe
motion-controlleverstotheNEUTRAL-LOCKposition,
andengagetheparkingbrake.
2.Shutofftheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Toadjustthecamlocks,swingtheleveruptoloosen
thecamlock(Figure34).
4.Adjustthebafeandcamlocksintheslotstothe
desireddischargeow.
