Toro 74265TE - Controls System Maintenance

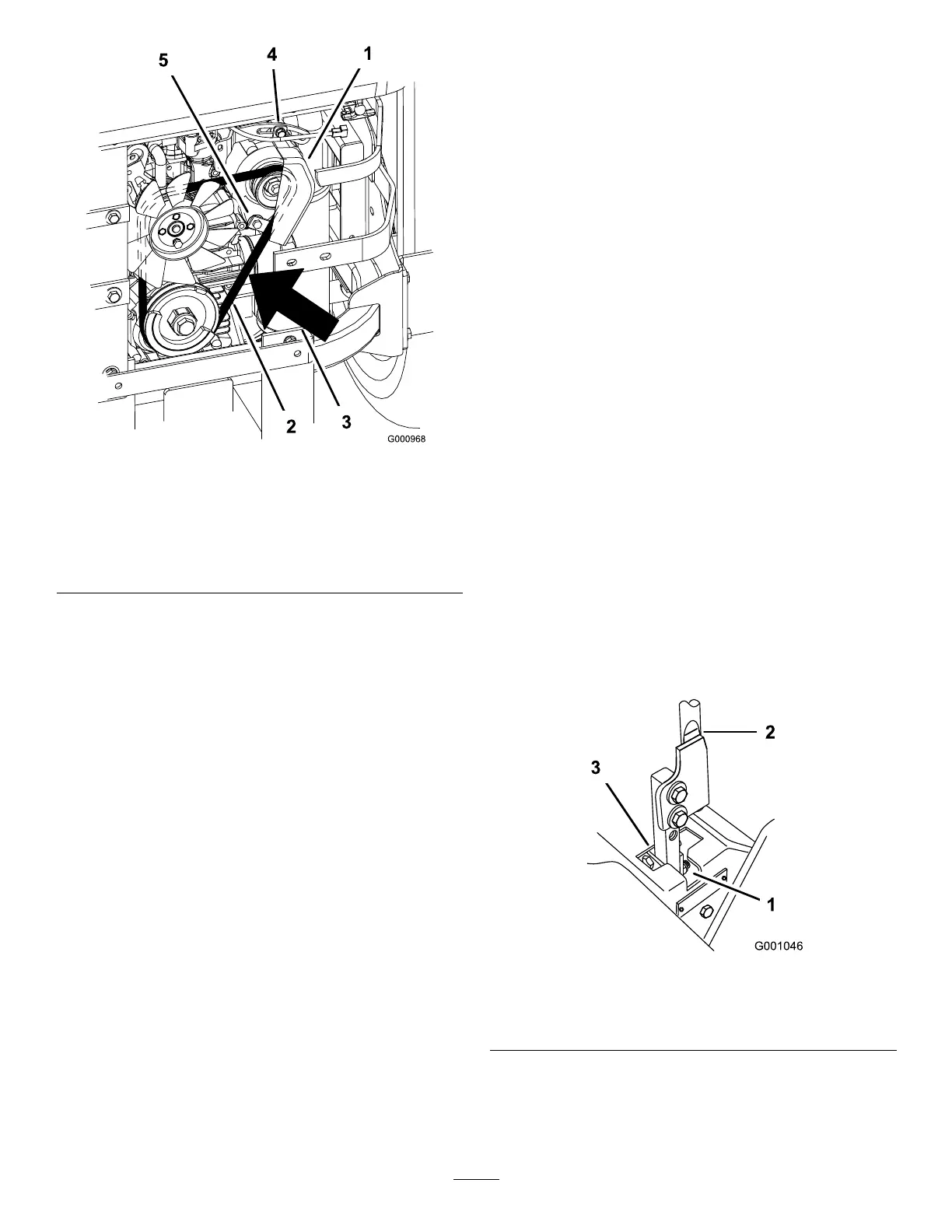

g000968
Figure88
1.Alternator4.Topbolt
2.Alternatorbelt5.Bottombolt
3.Deection,7to9mm(1/4
to11/32inch)with10kgf
(22.1lbofforce)
ControlsSystem
Maintenance
AdjustingtheControlHandle
NeutralPosition
Ifthemotion-controlleversdonotalign,ormoveeasilyinto
theconsolenotch,adjustmentisrequired.Adjusteachlever,
springandrodseparately.
Note:Themotion-controlleversmustbeinstalledcorrectly.
1.Disengagetheblade-controlswitch(PTO),movethe
motion-controlleverstotheNEUTRAL-LOCKposition,
andengagetheparkingbrake.
2.Shutofftheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Unlatchtheseatandtilttheseatforward.
4.Beginwitheithertheleftorrightmotion-controllever.
5.Movethelevertotheneutralpositionbutnotlocked
(Figure89).
6.Pulltheleverbackuntiltheclevispin(onarmbelow
pivotshaft)contactstheendoftheslot(justbeginning
toputpressureonthespring)asshowninFigure89.
7.Checkwherethecontrolleverisrelativetonotchin
console(Figure89).
Note:Itshouldbecentered,allowinglevertopivot
outwardtotheNEUTRAL-LOCKposition.
g001046
Figure89
1.NEUTRAL-LOCKposition3.NEUTRALposition
2.Controllever
8.Ifadjustmentisneeded,loosenthenutandjamnut
againsttheyoke(Figure90).
59
