g000960

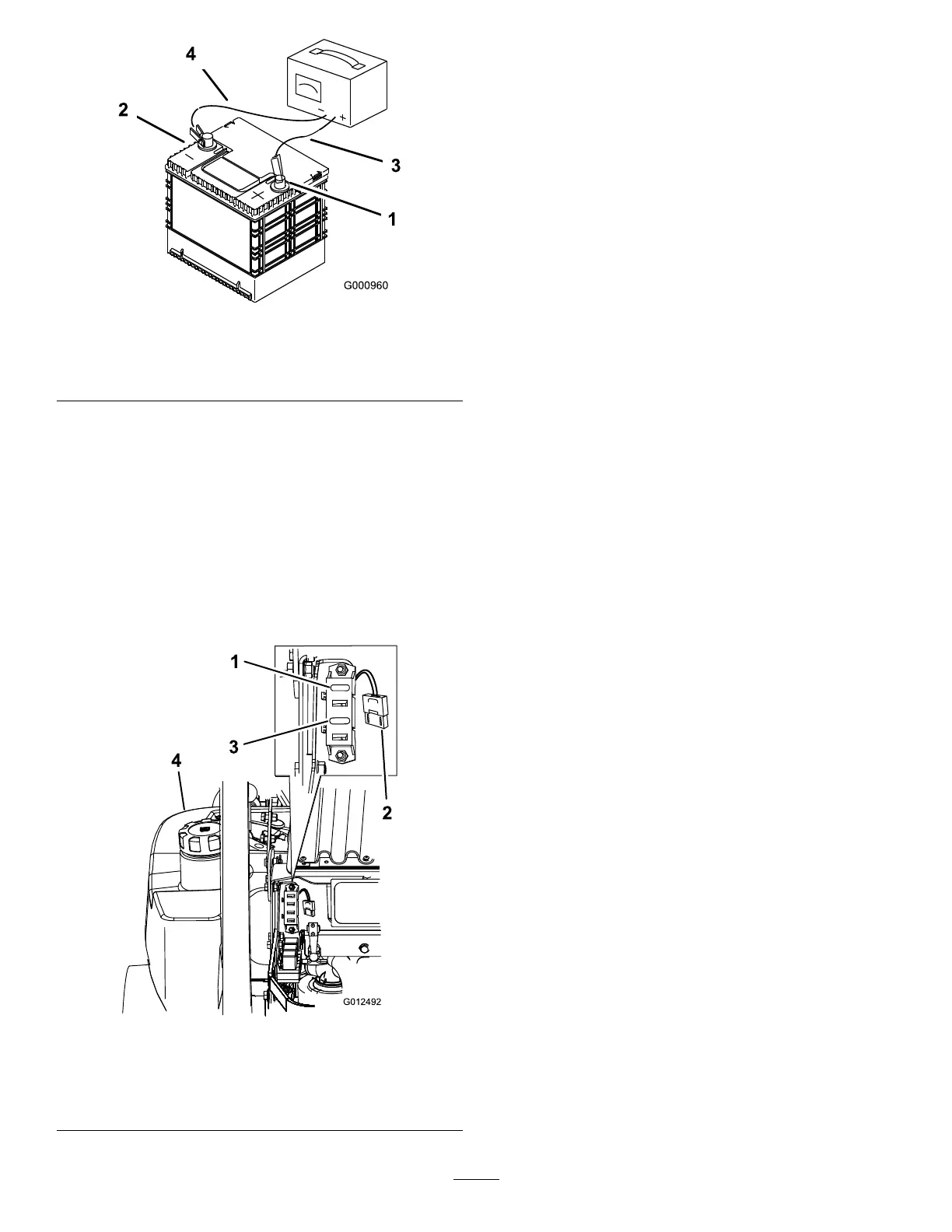

Figure69
1.Positivebatterypost
3.Red(+)chargerlead
2.Negativebatterypost
4.Black(-)chargerlead
ServicingtheFuses
Theelectricalsystemisprotectedbyfuses.Itrequires
nomaintenance,however,ifafuseblowscheck
component/circuitformalfunctionorshort.
1.Unlatchtheenginehoodandraisetheenginehoodto
gainaccesstofuseholder(Figure70).
2.Toreplacethefuses,pulloutonthefusetoremoveit.
3.Installanewfuse(Figure70).
1
3
2
G012492
4
g012492
Figure70
1.Ignition—30A(F1)3.Clutch—10A(F3)
2.Radiatorfan—50A(large,
heavydutyfuse)
4.Leftfueltank
