g015241

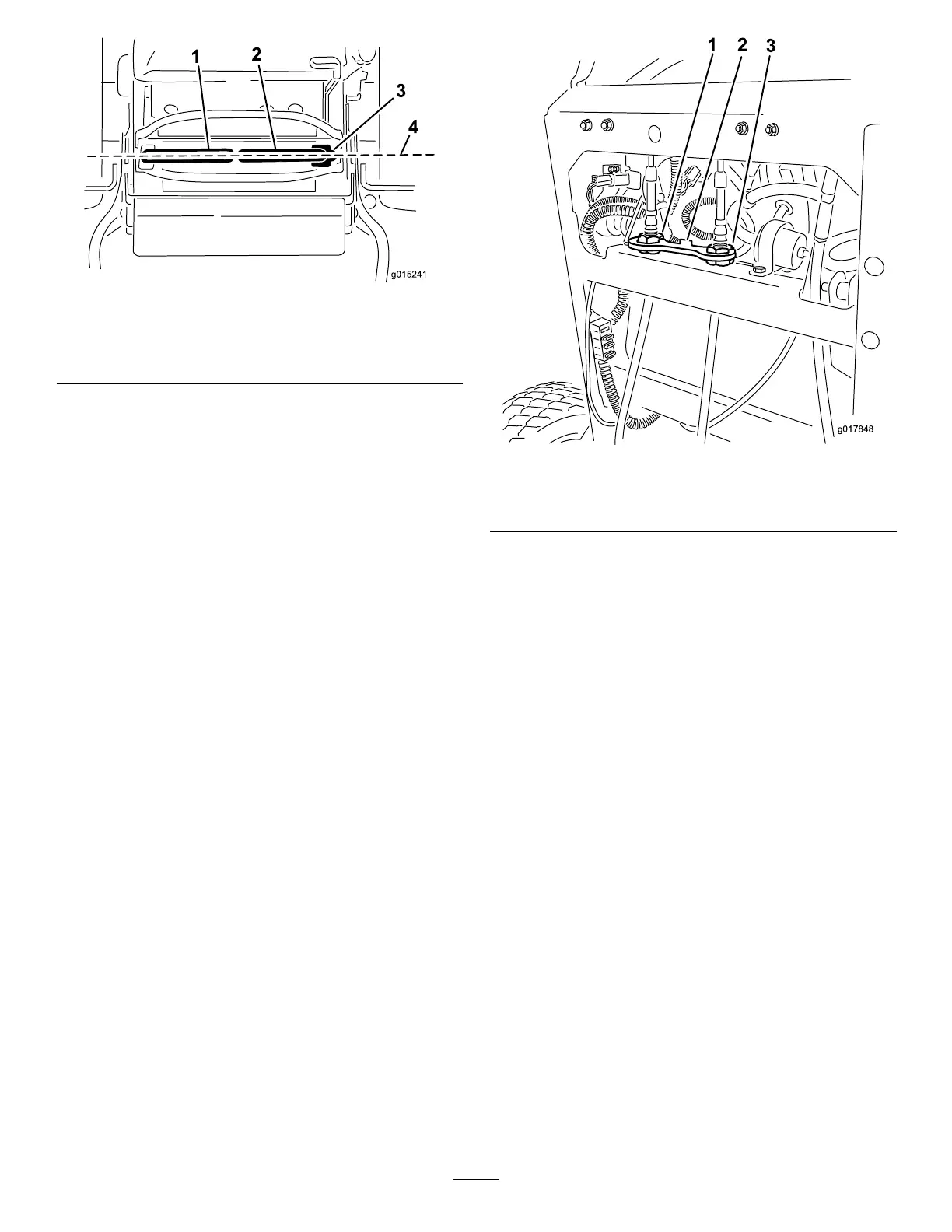

Figure74
1.Leftmotioncontrollever
3.Neutrallockedposition
2.Rightmotioncontrollever4.Alignthecontrollevers
fronttoback
2.Liftandremovethecablelocksecuringthecable
adjustingnuts(Figure75).
3.Rotatetherightcableadjustmenttoplacetheright
motioncontrolleverinthecenteroftheneutrallock
slotinthecontrolpanel.
4.Rotatetheleftcableadjustmenttoplacetheleftmotion
controlleveralignmentequalwiththerightmotion
controllever.Thiswillprovideanapproximateequal
trackingoftheleftwheelspeedtotherightwheel
speed.
5.Checkforpropertracking.RefertoAdjustingthe
TrackingintheMaintenanceSection.
6.Installthecablelockontothecableadjustingnutsto
securetheadjustment(
Figure75).
3
g017848
Figure75
1.Leftcableadjustment
3.Rightcableadjustment
2.Cablelock
