Micro-Master Touch User Guide
92
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
14.4.3 Flow Meter Edit
The Flow Meter Edit screen is displayed by pressing the icon on the Flow Meter List screen.

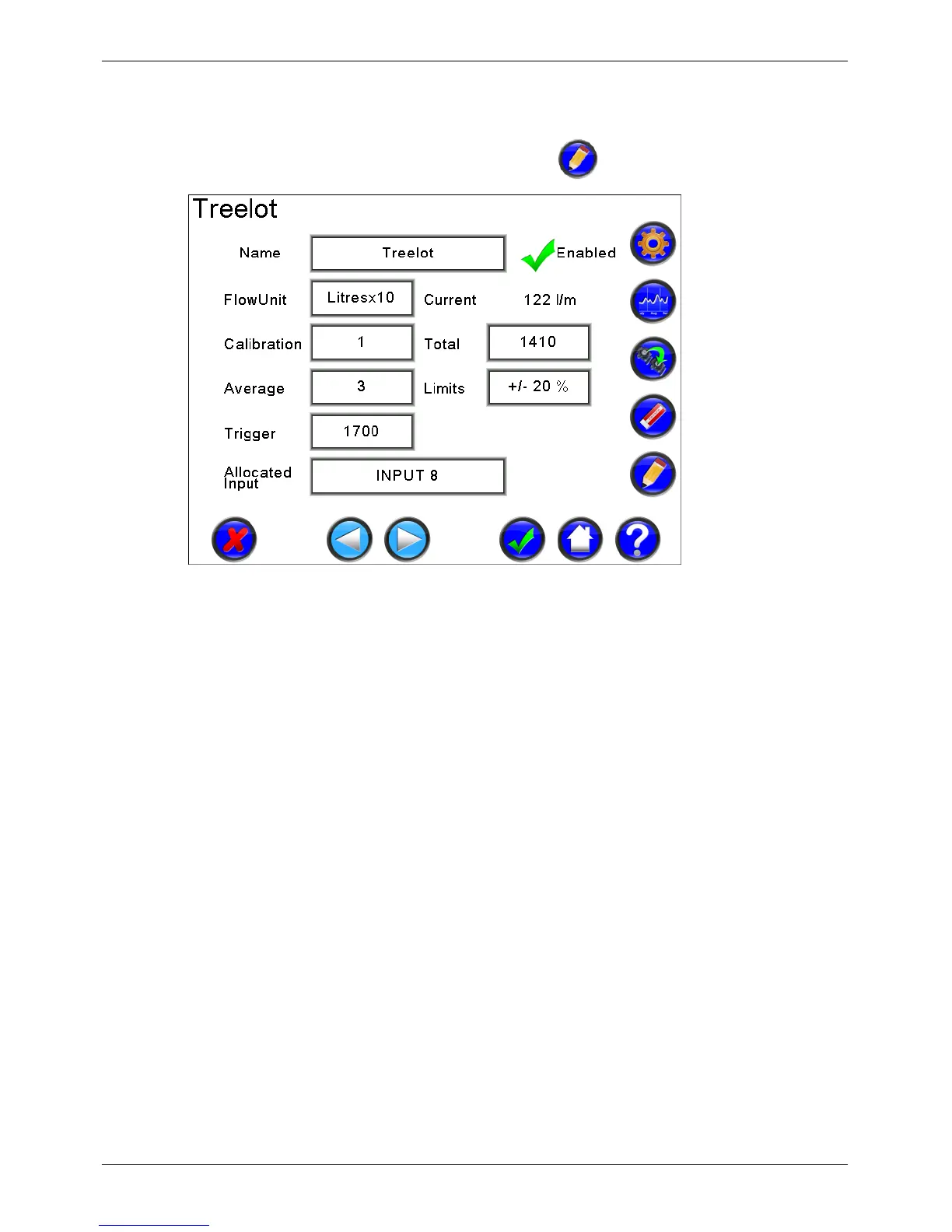

Figure 65 - Flow Meter Edit
In the example screen shown in Figure 65, the Treelot flow meter is showing 122 litres per minute,
and has a total flow of 1410 litres. The calibration of the flow meter is 1 pulse per 10 litres, and the
flow is averaged over three samples. The +/-20% limits define a variation that could be expected
during normal operation. A measured flow more than 20% from the last flow value is assumed to be
a changed flow and is set as the current flow. If the flow increases above 1700 litres per minute, the
flow meter becomes triggered, and could be used as a trigger to stop irrigation.
Flow Meter Name
Each Flow Meter can be assigned a name. Names are limited to 20 characters. Selecting the name
button and clicking Edit will display the Text Edit screen.
Flow Meter Units
Shows the flow units for the flow meter. Selecting the button and clicking Edit will cycle the units
through 'Litres', 'Litresx10', 'Litresx100', 'Kilolitres'.
Calibration
Shows the calibration, or number of pulses per unit, for the flow meter. Selecting the calibration
button and clicking Edit will display the Number Edit screen.
Average
This setting adjusts the number of samples over which the flow meter averages the current flow.
Selecting the average button and clicking Edit will display the Number Edit screen.
