Micro-Master Touch User Guide
131
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
19 TMR1 Series Remote
The Toro Maintenance Remote is designed for convenience and usability. This powerful tool enables
a single operator to perform most manual controller operations remotely from the field.
The TMR-1 kit includes a long-range, handheld transmitter complete with NiMH batteries and
compatible charger. A pre-wired, quick-release receiver mount enables the TMR-1 system to be
quickly installed and ready for operation; then easily moved from site to site as needed.
The TMR-1 system is designed for simple "plug and play" operation.
A TMR-1 system can be attached to each unit for local control of stations. The TMR-1 system
remote RJ-11 jack is located on the Micro-Master Touch Motherboard. The controller's 24 VAC
connection terminal is also located on the Micro-Master Touch Motherboard. These two points are
shown in the next diagram.

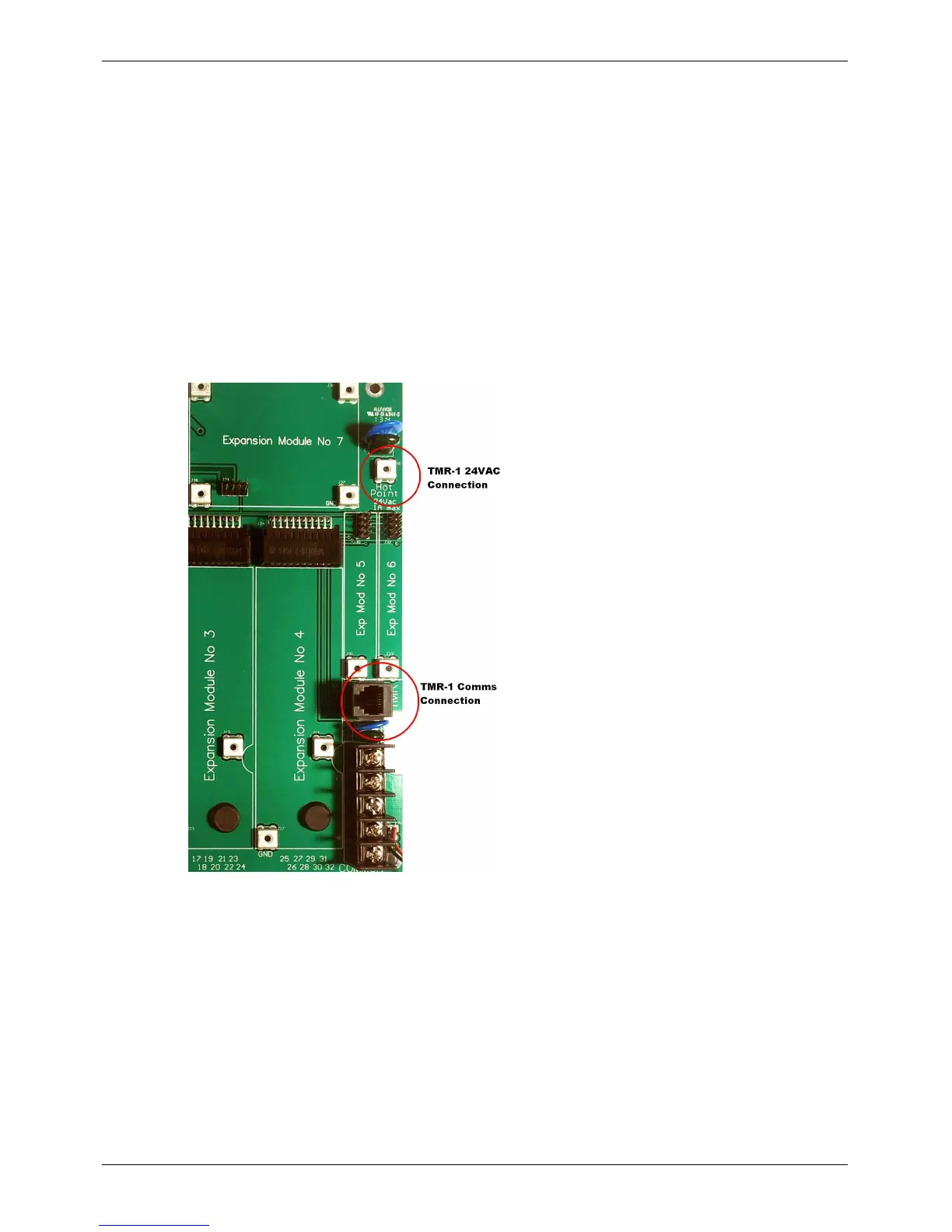

Figure 99 - TMR-1 Connections
Full installation and operation details are available in TMR-1 Toro Maintenance Remote User's Guide
.
