Micro-Master Touch User Guide
21
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
5.6
Radio-Master for Touch Field Modules
RMT Field Module Installation

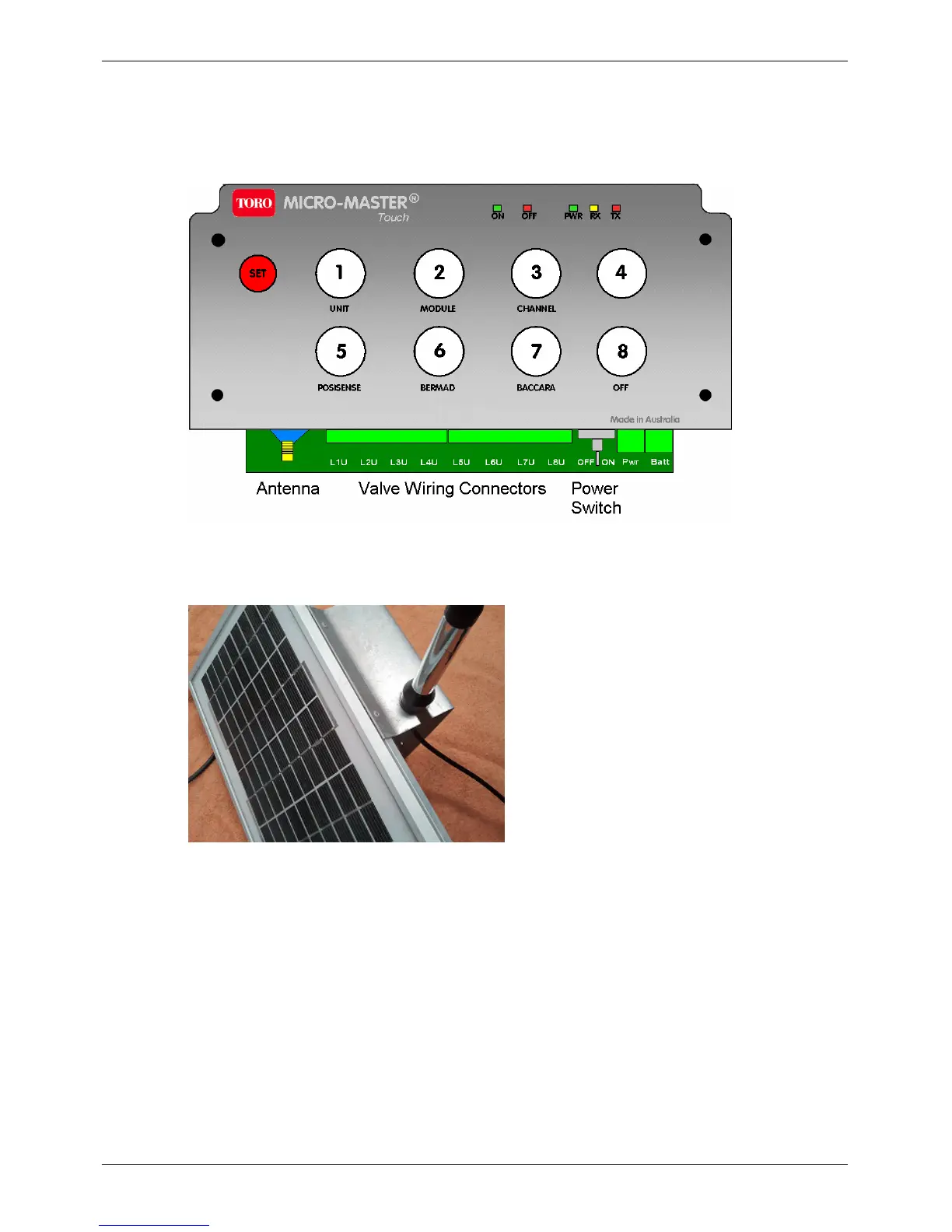

Figure 12 - RMT800 Panel with connector positions
Aerial Installation
Figure 13 - Aerial mounted on Solar Panel
Note: Depending on the particular installation environment it may be easier to install the antenna
prior to mounting the Solar Panel assembly onto the mast. Remember, the higher the antenna, the
better the coverage.
Loosen the nut on the base of the antenna and slide the antenna into the slot located on the top edge
of the Solar Panel Mounting Plate.
Retighten the nut on the base of the antenna.
Solar Panel Mounting Bracket Installation
The Solar Panel Mounting Plate has been designed to maximise the average available solar power
whilst reducing wind resistance and providing ease of assembly. The angle of the Solar Panel has
