14.9.4 Switch Input Status and Totals
The Status and Totals screen is the only page of Advanced Switch Sensor Parameters and is
displayed by pressing the icon on the Switch Sensor Edit screen.

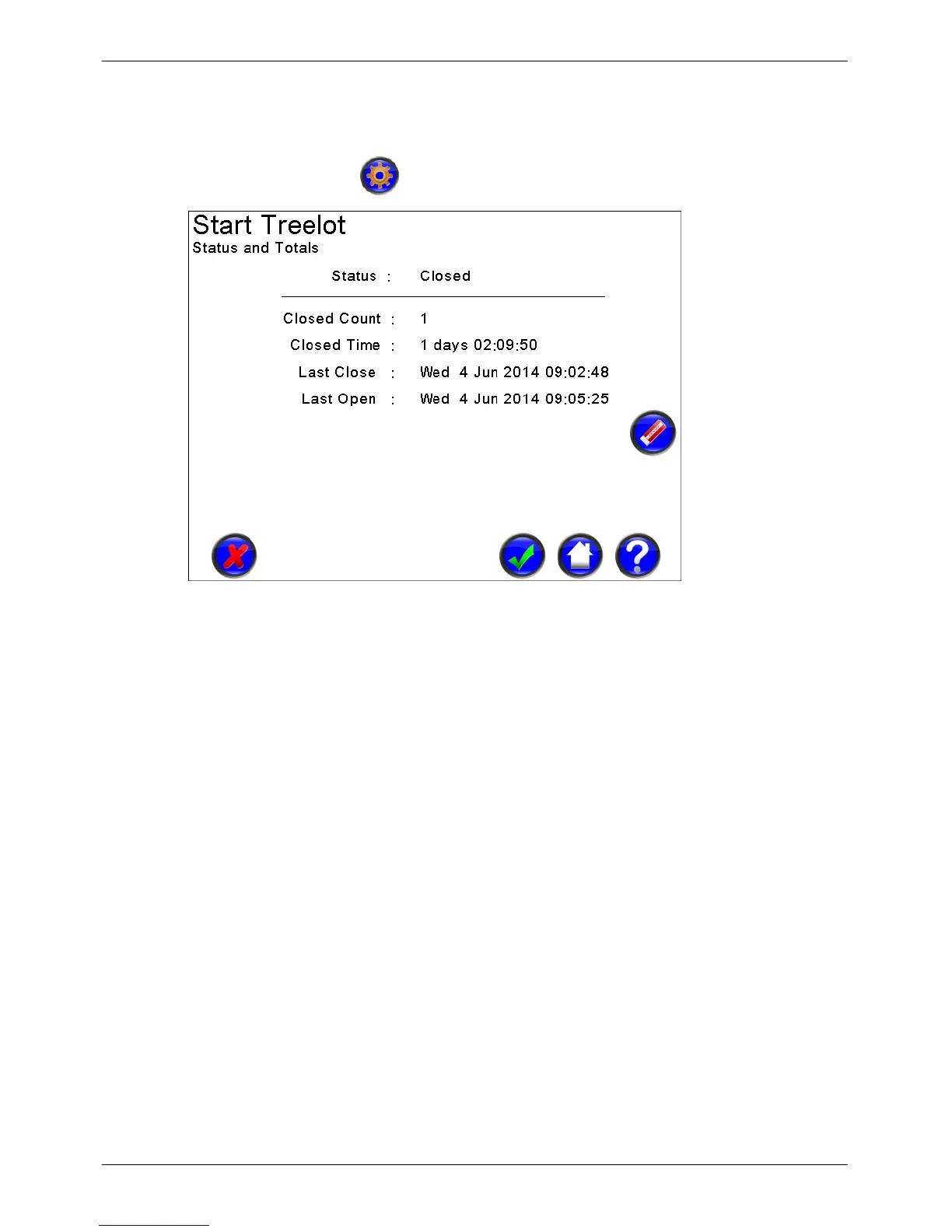

Figure 84 - Switch Sensor Status and Totals
Switch Sensor Status
This section shows the current status of the Switch Sensors.
Switch Sensor Totals
This section shows the current totals for the Switch Sensors. Clicking the clear button will clear the
totals.
