Micro-Master Touch User Guide
6
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014

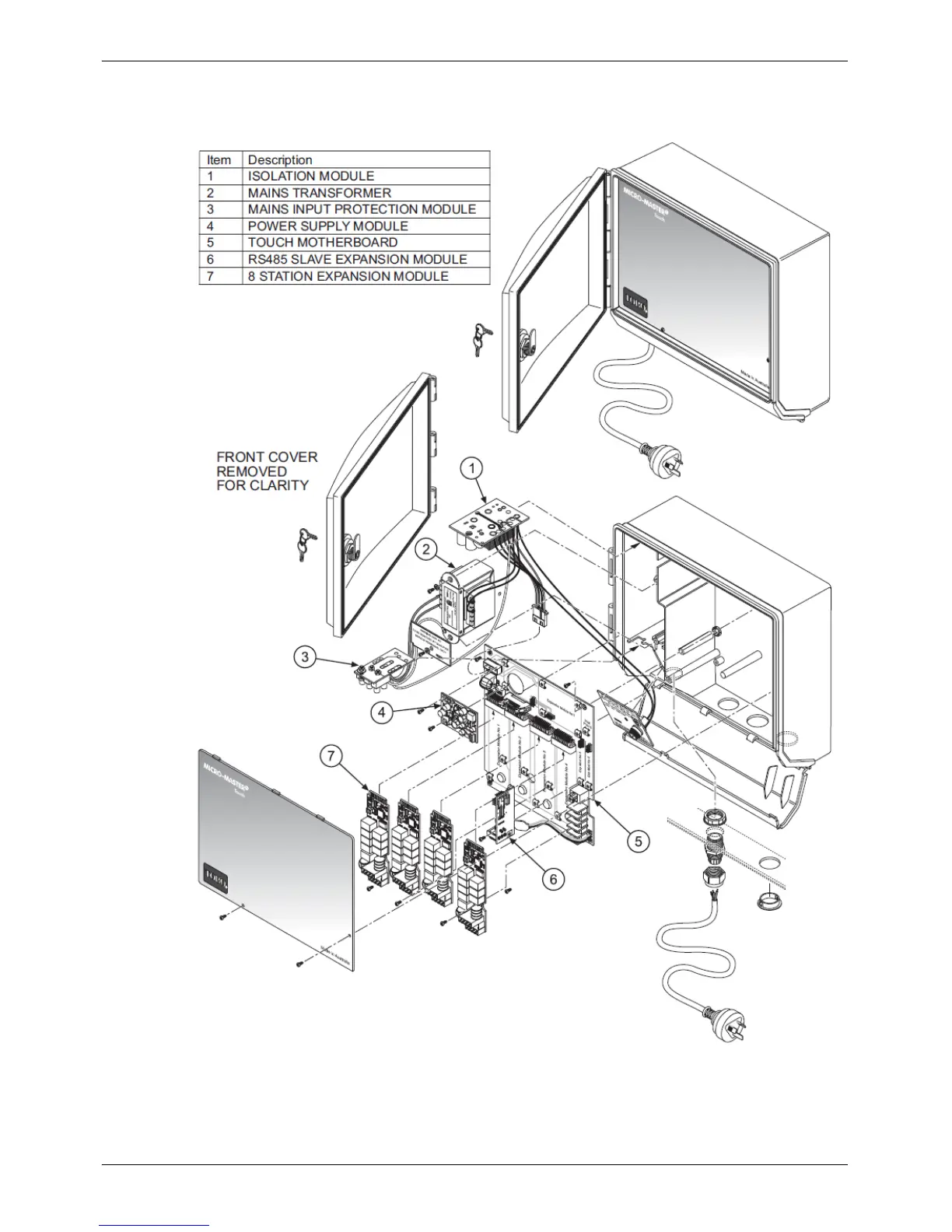

The diagram below shows the breakdown of a Micro-Master Touch Remote Unit.
Figure 3 - Micro-Master Touch Remote Unit - Exploded Diagram
