Micro-Master Touch User Guide
69
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
Pump Set Runtime Level
This option enables the Pump Set Runtime Levelling functionality. Clicking on the tick (cross) will
change the Runtime Level to disabled (enabled).
Pump 1 is VFD
This option sets Pump 1 as a Variable Frequency Drive. Clicking on the tick (cross) will change the
VFD option to disabled (enabled).
Pump Set Flow Meters
The Flow Meters screen is the second page of Advanced Pump Set Parameters and is displayed by
pressing the icon on the Pump Set Edit screen and pressing the icon.

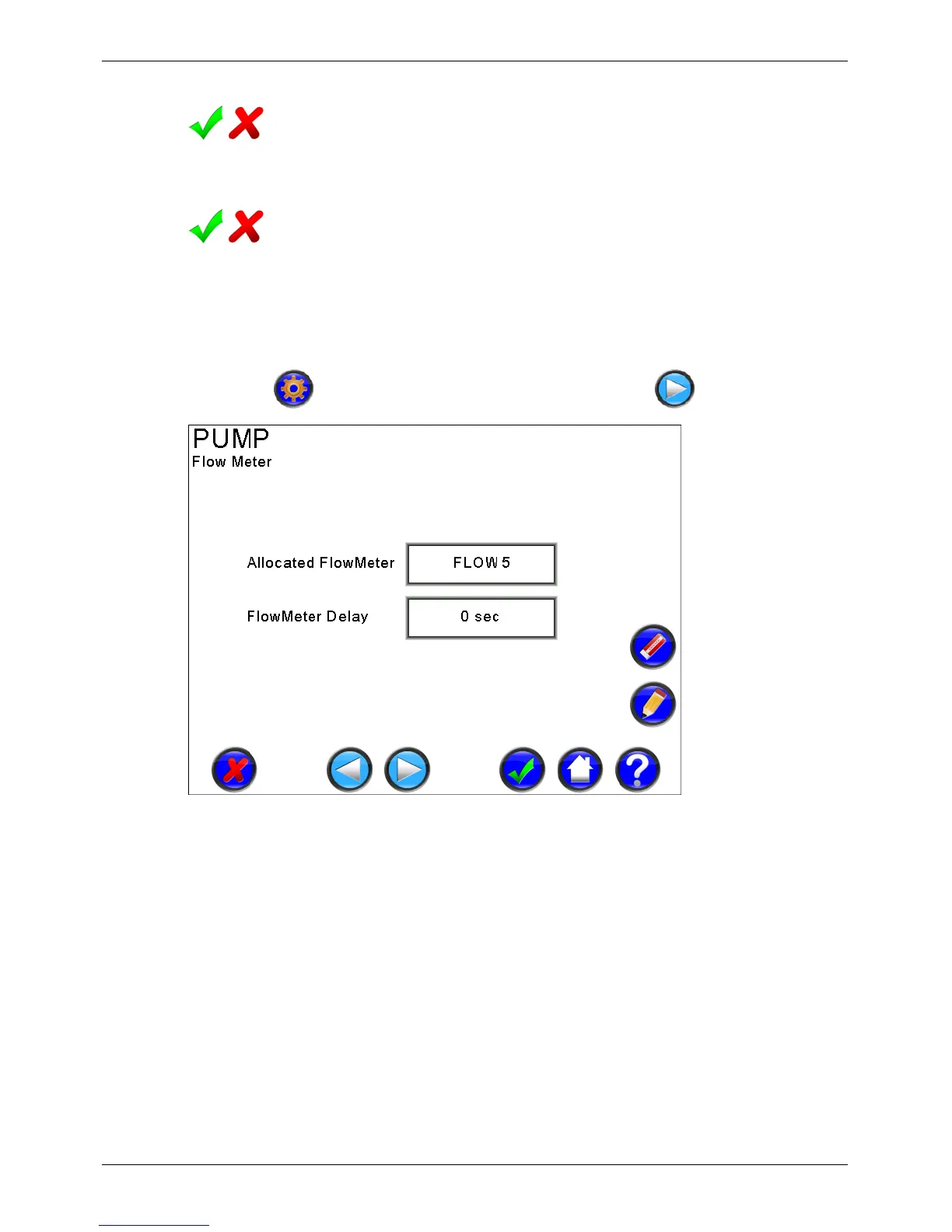

Figure 46 - Pump Set Advanced Parameters Edit - Page 2
Allocated Flow Meter
Clicking on Allocated Flow Meter will select the item, changing the background of the item to light
blue. Selecting the Allocated Input and then clicking Edit will display the Control Selection screen.
Flow Meter Delay
Clicking on Flow Meter Delay will select the item, changing the background of the item to light blue.
Selecting the Flow Meter Delay and then clicking Edit will display the Number Edit screen.
