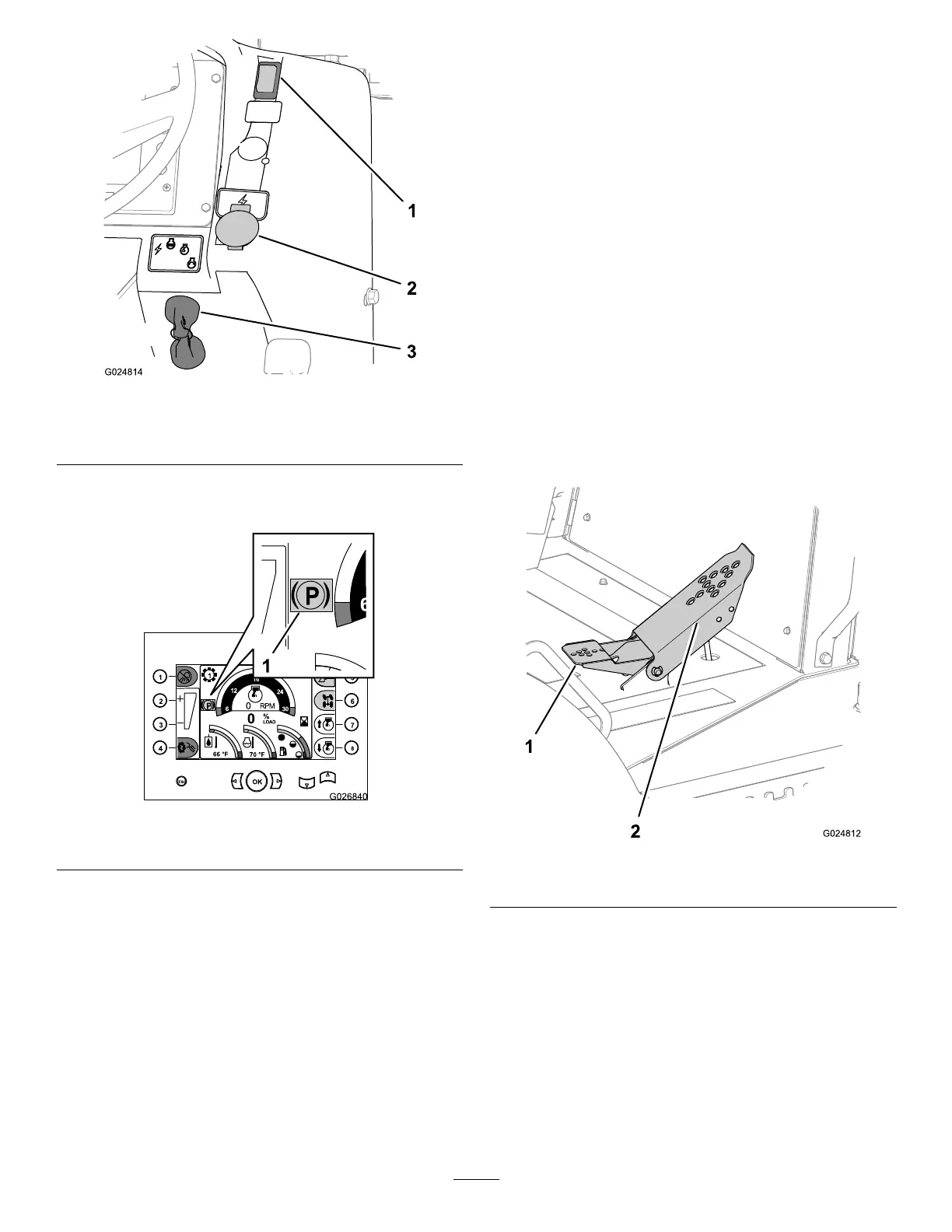

Figure11
1.Parking-brakeswitch3.Keyswitch
2.Powerport
Note:Theredparkingbrakeindicatorwillappearinthe
commandcenterdisplay(Figure12).
Figure12
1.Parkingbrakeindicator(commandcenterdisplay)
•Releasetheparkingbrakebypushinguptheparking-brake
switch.
Note:Whentheparkingbrakeisreleasedandthe
machineismovedforwardorbackward,theHomescreen
willstopdisplayingtheparkingbrakeindicator.
•Ifyoustoptheenginewithoutsettingtheparkingbrake,
themachinewillsettheparkingbrakeandtheyellow
parkingbrakeindicatorwillappearinthecommand
centerdisplay(Figure12).
KeySwitch
Usethekeyswitchtopowertheelectricalaccessories,startthe
machine,andstopthemachine(Figure11).The4key-switch
positionsareasfollows:
•Accessory—Rotatethekeyswitchtothispositionto
energizethelampswitchcircuits.
•Stop—Rotatethekeyswitchtothispositiontostopthe
engineandde-energizetheelectricalsystem.
Note:Alwaysremovethekeybeforeleavingthe
machine.
•Run—Thispositionallowstheenginetorunandwill
energizeallelectricalsystems.
•Start—Rotatethekeyswitchtothispositiontostartthe
engine.
Note:Whenyoureleasethekey,itwillautomaticallygo
totheRunposition.
FootPedal
Thefootpedalcontrolsthedirectionandspeedoftravelof
themachine(Figure13).
Figure13
1.Heelpedal(reverse)2.Toepedal(forward)
Traction-ControlCluster
Thetraction-controlclusterislocatedattheoperatorseat,
adjacenttotheleftarmrest.
Utility-TractionJoystick
Whentrenching,plowing,orboring,usetheutility-traction
joysticktochangethedirectionandspeedofthemachine
(Figure14).Thefurtheryoumovethejoystickineither
direction,thefasterthemachinewillmoveintheselected
direction.
