•Movetheutility-tractionjoystickforwardtomovethe
machineforward(Figure14).
•Movethetractionjoystickrearwardtomovethemachine
inreverse(Figure14).
•Movethetractionjoysticktothecenter(Neutral)position
tostopthemachine(Figure14).
3

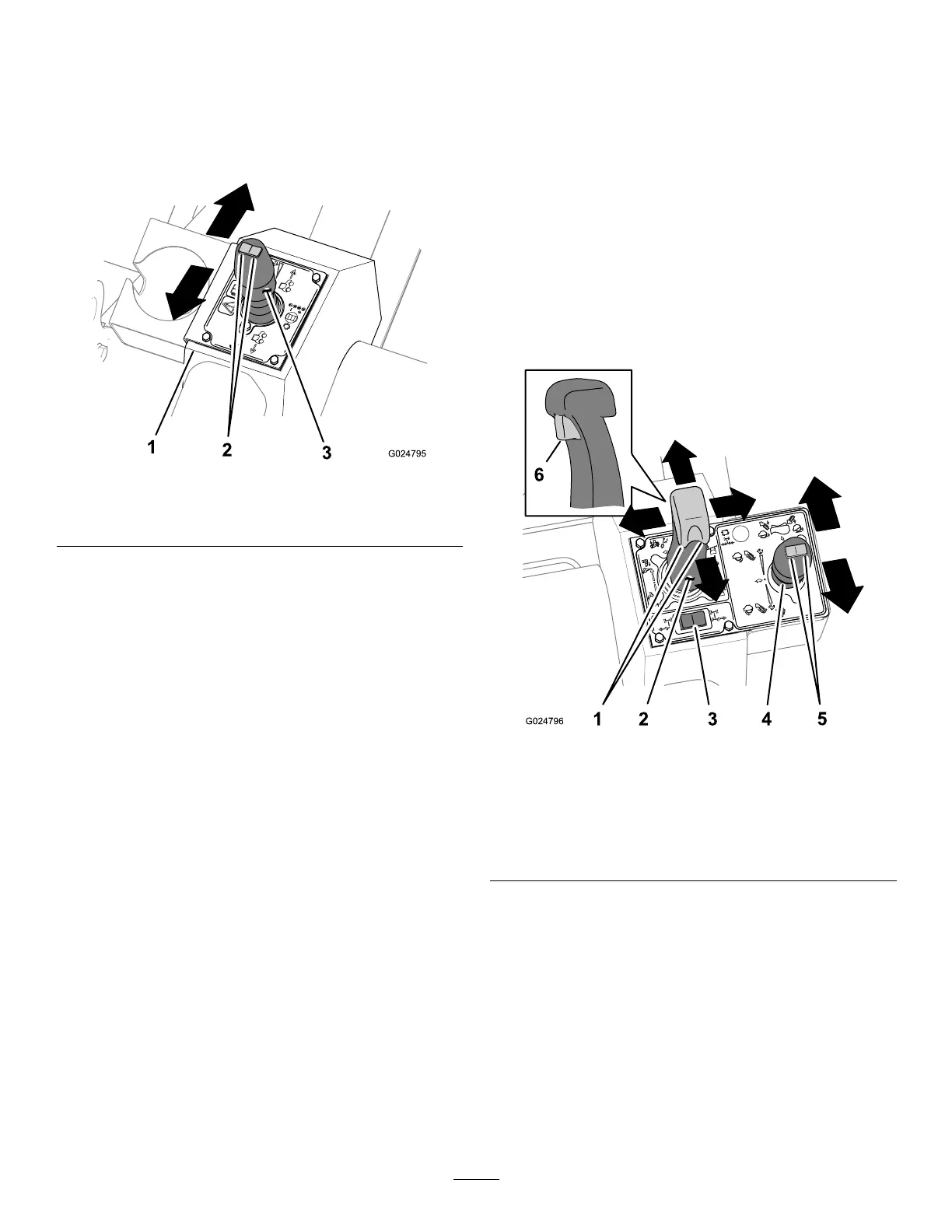

Figure14
1.Traction-controlcluster3.Utility-tractionjoystick
2.Gear-selectorswitch
Note:Theenginespeediscontrolledwiththethrottle
buttonsonthehomescreenofthecommand-centerpanel;
refertoThrottleButton(page17).
Gear-SelectorSwitch
Thegear-selectorswitchislocatedontopoftheutility-traction
joystick(Figure14),andisusedtoselectthetransmissiongear.
Thecurrentgearisdisplayedonthehomescreenofthe
commandcenter,aboveandtotheleftofthetachometer
display.
Attachment-ControlCluster
Theattachment-controlclusterislocatedattheoperatorseat
andisadjacenttotherightarmrest.
Backll-Blade/Vibratory-PlowJoystick
Thebackll-blade/vibratory-plowjoystickoperateseither
thebackllbladeorthevibratoryplow ,whicheverisselected
anddisplayedonthecommandcenter.Movethejoystick
controlstochangethebackllbladeorthevibratoryplow
positionasfollows:
•Pushthejoystickforwardtolowerthebackllbladeor
vibratoryploworpullthejoystickrearwardtoraisethe
backllbladeorvibratoryplow(Figure15).
Note:Thefunctionofthejoystickdependsonthe
attachmentselectedinthecommandcenter.
•Movethejoysticktothelefttotiltthebackllbladetothe
left,ormovethejoysticktotherighttotiltthebackll
bladetotheright(Figure15).
•Swingthebackllbladeorsteerthevibratoryplowleftor
rightasfollows:
–Twistthethumbcontrollefttoswingthebackll
bladeleft,ortwistthethumbcontrolrighttoswing
thebackllbladeright(Figure15).
–Twistthethumbcontrollefttosteerthevibratory
plowleft,ortwistthethumbcontrolrighttosteerthe
vibratoryplowright(Figure15).
Note:Thefunctionofthethumbcontroldepends
ontheattachmentselectedinthecommandcenter.
•Pullthetriggeronthejoysticktooatthebackllblade
upanddown(Figure15).
Figure15
1.Thumbcontrol
4.Vibratoryplow/trencher
motorjoystick
2.Backllblade/vibratory
plowjoystick
5.Attachmentelevation
switch
3.Rear-wheelsteering
switch
6.Backll-blade-oattrigger
Rear-Wheel-SteeringSwitch
Theswitchfortherear-wheelsteeringisusedtocontrolthe
steeringdirection(leftorright)oftherearwheels.Theswitch
fortherear-wheelsteeringislocatedbehindthebackll
blade/vibratoryplowjoystick.
Vibratory-Plow/Trencher-MotorJoystick
VibratoryPlow
Note:Thefunctionofthevibratoryplow/trenchermotor
joystickdependsontheattachmentselectedinthecommand
center.
19
