OperatingtheCommand
Center
SoftwareMessages
Thecommandcenterwilldisplayinformationaboutthe
controllerversion,displayversion,andinstalledoptional
attachmentsorkitsthatareoperatedthroughthecommand
center.Thisinformationisdisplayedonthesplashscreen

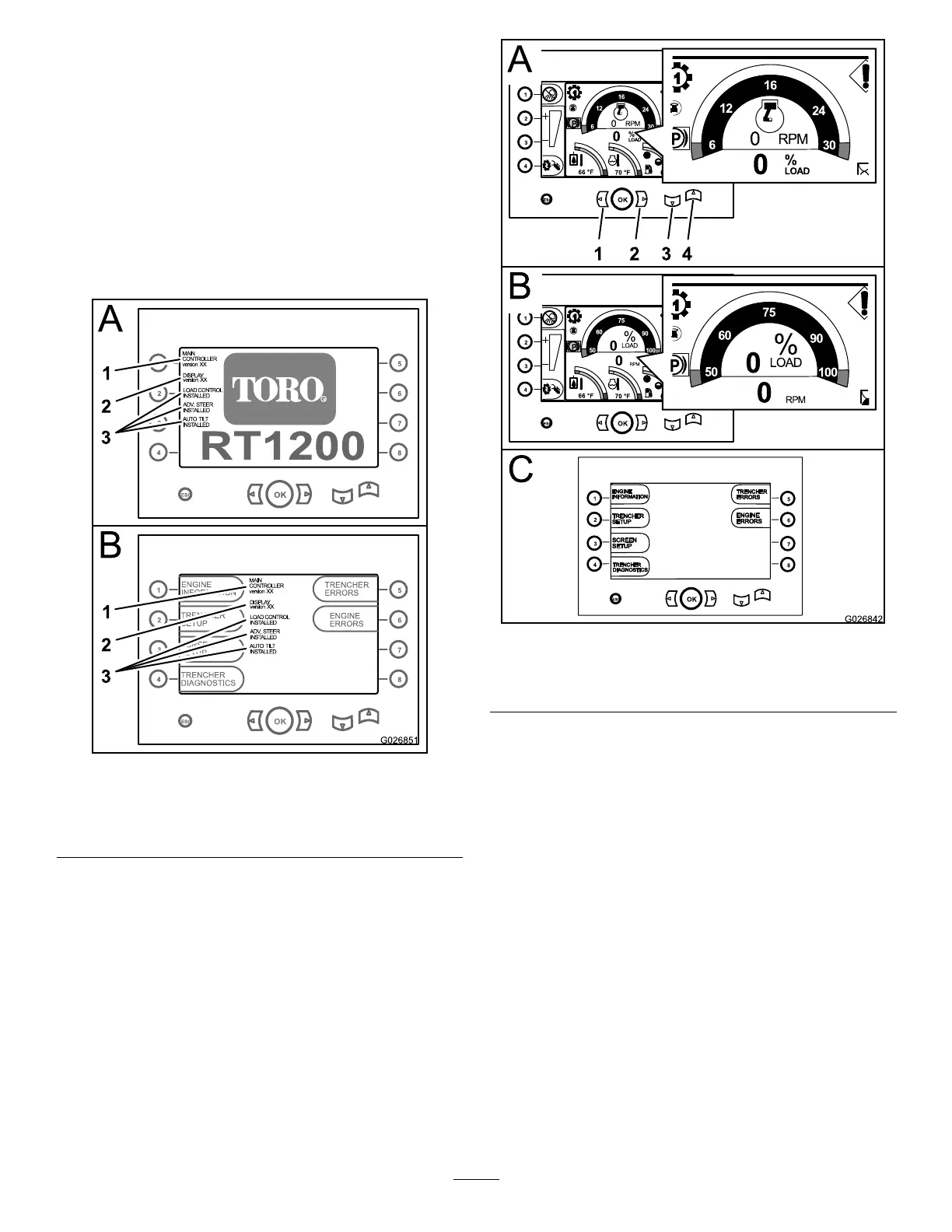

duringstartupofthemachine,asshowninAofFigure28
orwhenyouaccessthemainselectionscreen,asshowninB
ofFigure28.
Figure28
1.Maincontrollerversion3.Installedoptional
attachmentsorkits
2.Displayversion
UsingtheHomeScreen
Usethepreviousscreen,nextscreen,downscreen,orup
screenbuttonstodisplayeithertherpmhomescreen(Aof
Figure29),the%loadhomescreen(BofFigure29)orthe
mainselectionscreen(CofFigure29).
Figure29
1.Previousscreenbutton3.Downscreenbutton
2.Nextscreenbutton4.Upscreenbutton
Understandthemeaningoftheiconsthatindicatethe
functionsandthestateofthemachine.
