Toro Workman UTX User Manual

BeltMaintenance
ServicingtheDriveBelt
CheckingtheDriveBeltand
CleaningtheClutches
ServiceInterval:Every250hours
1.Parkthemachineonalevelsurface.
2.ShiftthetransmissionlevertotheP(PARK)
position.
3.Shutofftheengineandremovethekey.
4.Raisethecargobed.
5.Unlatchthe6springclipssecuringthebeltcover
andremovethecover(Figure113).

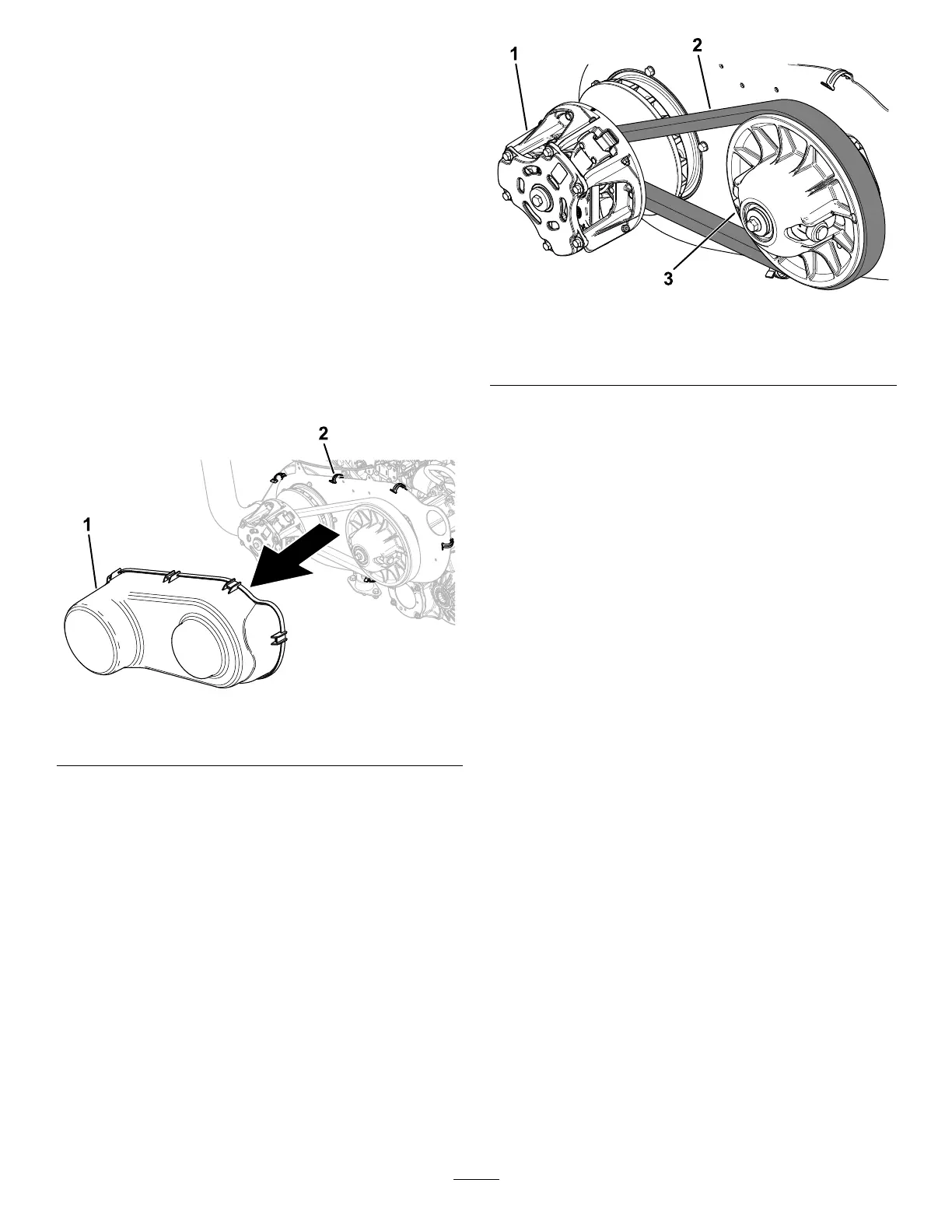

g366144
Figure113
1.Beltcover
2.Springclip
6.Rotateandinspectthebelt(Figure114)forsigns
ofexcessivewearordamage.
Note:Replacethebeltifitisexcessivelyworn
ordamaged;refertoReplacingtheDriveBelt
(page102).
g366145
Figure114
1.Primaryclutch
3.Secondaryclutch
2.Drivebelt
7.Usingcompressedair,cleantheclutches
thoroughlyofalldebris(Figure114).
8.Installthebeltcover(Figure113).
9.Lowerthecargobed.
ReplacingtheDriveBelt
ServiceInterval:Every500hours—Replacethe
drivebelt.
1.Parkthemachineonalevelsurface.
2.ShiftthetransmissionlevertotheP(PARK)
position.
3.Shutofftheengineandremovethekey.
4.Raisethecargobed.
5.Unlatchthe6springclipssecuringthebeltcover
andremovethecover(Figure113).
6.Pulluponthetopofthebelttospreadoutthe
secondaryclutch,thenrotateandroutethebelt
overthesecondaryclutch(Figure114).
7.Removethebeltfromtheprimaryclutch(Figure
114).
Note:Discardtheoldbelt.
8.Alignthenewbeltovertheprimaryclutch
(Figure114).
9.Rotateandroutethebeltoverthesecondary
clutch(Figure114).
10.Installthebeltcover(Figure113).
11.Lowerthecargobed.
