Toro Workman UTX User Manual

Checkingthe
Transaxle-FluidLevel
ServiceInterval:Every250hours
FluidType:T oroPremiumSyntheticTransaxleFluid
(ToroPart145-2048)
1.Parkthemachineonalevelsurface.
2.ShiftthetransmissionlevertotheP(PARK)
position.
3.Shutofftheengineandremovethekey.
4.Removethellplugonthetransaxle(Figure
106).
Note:Theuidlevelshouldbeevenwiththe
bottomofthellplug.
5.Iftheuidlevelislow,removethellplugand
addthespecieduiduntilitrunsoutofthehole
(Figure106).
6.Replacethellplugandtorqueitto14to30
N∙m(10to22ft-lb).
g362542

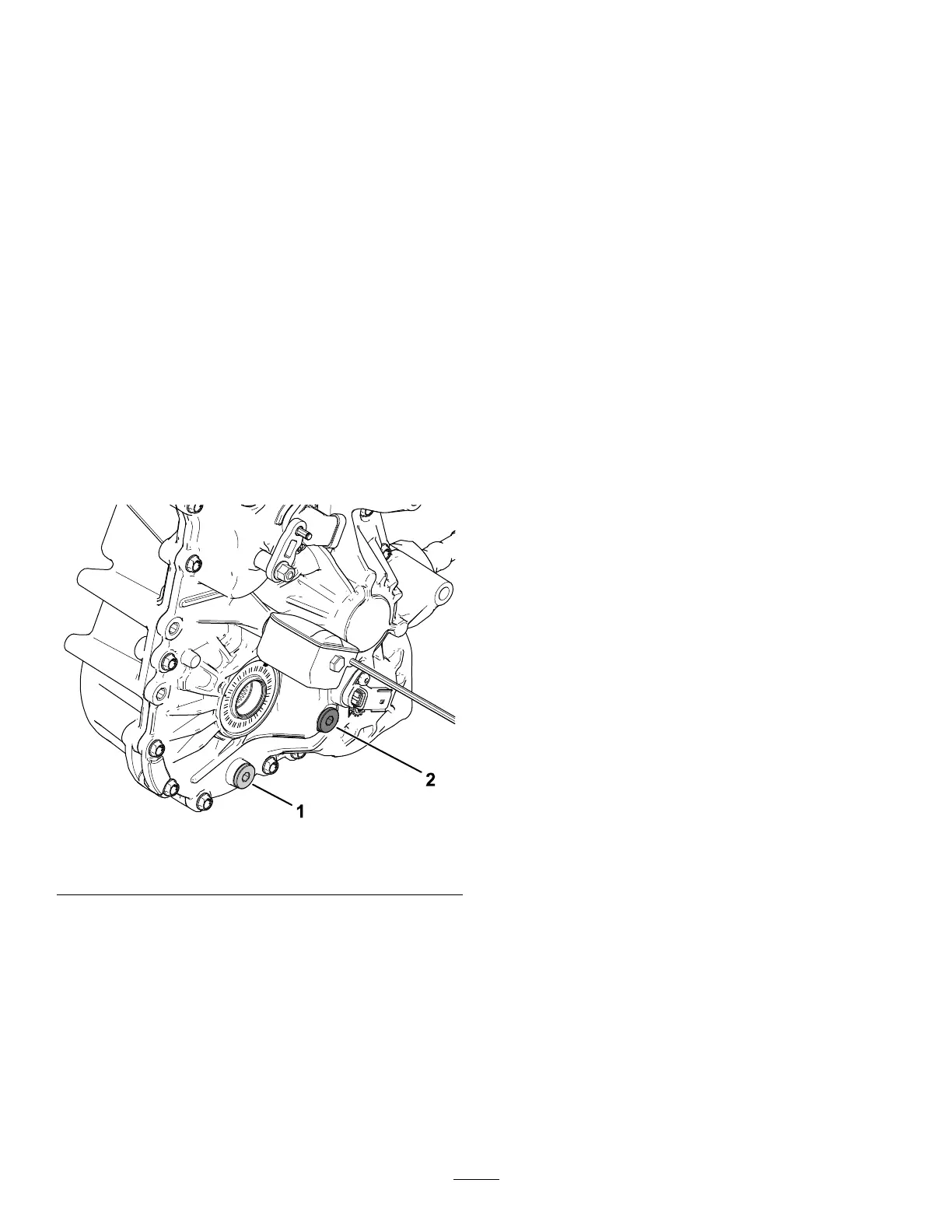

Figure106
1.Drainplug2.Fillplug
ChangingtheTransaxle
Fluid
ServiceInterval:Every500hours
FluidType:T oroPremiumSyntheticTransaxleFluid
(ToroPart145-2048)
FluidCapacity:1200ml(1.3USqt)
1.Alignadrainpanunderthedrainplug(Figure
106).
2.Removethellplug(Figure106).
Note:Retainthellplugandsealforinstallation
instep6.
3.Removethedrainplug,andallowtheuidto
draincompletely(Figure106).
Note:Retainthedrainplugforinstallationin
step4.
4.Installthedrainplugandtorqueitto14to30
N∙m(10to22ft-lb).
5.Fillthetransaxlewiththespecieduidand
capacityuntilitisevenwiththellhole.
6.Installthellplugandtorqueitto14to30N∙m
(10to22ft-lb).
96
